An outlet boundary condition for patches in which the primal flow exhibits recirculation. Adds the contribution of the objective as an adjoint momentum flux directly to the PDEs, without the need to first compute an adjoint outlet velocity, circumventing thus the division with (almost) zero that manifests in case of primal flow recirculation. More...

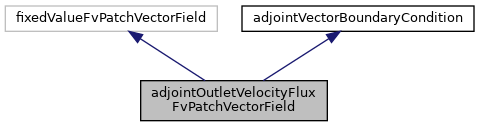

Inheritance diagram for adjointOutletVelocityFluxFvPatchVectorField:

[legend]

Collaboration diagram for adjointOutletVelocityFluxFvPatchVectorField:

[legend]

Public Member Functions
	TypeName ("adjointOutletVelocityFlux")

	adjointOutletVelocityFluxFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)

	adjointOutletVelocityFluxFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)

	adjointOutletVelocityFluxFvPatchVectorField (const adjointOutletVelocityFluxFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)

virtual tmp< fvPatchVectorField >	clone () const

	adjointOutletVelocityFluxFvPatchVectorField (const adjointOutletVelocityFluxFvPatchVectorField &, const DimensionedField< vector, volMesh > &)

virtual tmp< fvPatchVectorField >	clone (const DimensionedField< vector, volMesh > &iF) const

virtual bool	assignable () const

virtual void	manipulateMatrix (fvMatrix< vector > &matrix)

virtual void	updateCoeffs ()

virtual tmp< Field< vector > >	valueInternalCoeffs (const tmp< scalarField > &) const

virtual tmp< Field< vector > >	valueBoundaryCoeffs (const tmp< scalarField > &) const

virtual tmp< Field< vector > >	gradientBoundaryCoeffs () const

virtual tmp< Field< vector > >	gradientInternalCoeffs () const

virtual void	write (Ostream &) const

virtual void	operator= (const fvPatchField< vector > &pvf)

Public Member Functions inherited from adjointBoundaryCondition< Type >
	TypeName ("adjointBoundaryCondition")

	adjointBoundaryCondition (const fvPatch &p, const DimensionedField< Type, volMesh > &iF, const word &solverName)

	adjointBoundaryCondition (const adjointBoundaryCondition< Type > &)

virtual	~adjointBoundaryCondition ()=default

const word &	objectiveManagerName () const

const word &	adjointSolverName () const

const word &	simulationType () const

void	setBoundaryContributionPtr ()

boundaryAdjointContribution &	getBoundaryAdjContribution ()

const ATCModel &	getATC () const

virtual tmp< Field< typename Foam::outerProduct< Foam::vector, Type >::type > >	dxdbMult () const

Additional Inherited Members
Protected Member Functions inherited from adjointBoundaryCondition< Type >
template<class Type2 >
tmp< Field< typename Foam::outerProduct< Foam::vector, Type2 >::type > >	computePatchGrad (word name)

bool	addATCUaGradUTerm ()

Protected Attributes inherited from adjointBoundaryCondition< Type >
const fvPatch &	patch_

word	managerName_

word	adjointSolverName_

word	simulationType_

autoPtr< boundaryAdjointContribution >	boundaryContrPtr_

autoPtr< bool >	addATCUaGradUTerm_

Detailed Description

An outlet boundary condition for patches in which the primal flow exhibits recirculation. Adds the contribution of the objective as an adjoint momentum flux directly to the PDEs, without the need to first compute an adjoint outlet velocity, circumventing thus the division with (almost) zero that manifests in case of primal flow recirculation.

Source files

Definition at line 56 of file adjointOutletVelocityFluxFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ adjointOutletVelocityFluxFvPatchVectorField() [1/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 32 of file adjointOutletVelocityFluxFvPatchVectorField.C.

Referenced by adjointOutletVelocityFluxFvPatchVectorField::clone().

Here is the caller graph for this function:

◆ adjointOutletVelocityFluxFvPatchVectorField() [2/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 58 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References dict, and p.

◆ adjointOutletVelocityFluxFvPatchVectorField() [3/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const adjointOutletVelocityFluxFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 44 of file adjointOutletVelocityFluxFvPatchVectorField.C.

◆ adjointOutletVelocityFluxFvPatchVectorField() [4/4]

adjointOutletVelocityFluxFvPatchVectorField	(	const adjointOutletVelocityFluxFvPatchVectorField &	pivpvf,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 76 of file adjointOutletVelocityFluxFvPatchVectorField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "adjointOutletVelocityFlux" )

◆ clone() [1/2]

virtual tmp<fvPatchVectorField> clone ( ) const

inlinevirtual

Definition at line 101 of file adjointOutletVelocityFluxFvPatchVectorField.H.

References adjointOutletVelocityFluxFvPatchVectorField::adjointOutletVelocityFluxFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp<fvPatchVectorField> clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Definition at line 118 of file adjointOutletVelocityFluxFvPatchVectorField.H.

References adjointOutletVelocityFluxFvPatchVectorField::adjointOutletVelocityFluxFvPatchVectorField().

Here is the call graph for this function:

◆ assignable()

virtual bool assignable ( ) const

inlinevirtual

Definition at line 134 of file adjointOutletVelocityFluxFvPatchVectorField.H.

◆ manipulateMatrix()

void manipulateMatrix ( fvMatrix< vector > & matrix )

virtual

Definition at line 89 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References forAll, Foam::oneThirdI, Foam::foamVersion::patch, fvMatrix::source(), and Foam::tr().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 137 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References adjointBoundaryCondition< Type >::boundaryContrPtr_, Foam::operator==(), and Foam::foamVersion::patch.

Here is the call graph for this function:

◆ valueInternalCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > valueInternalCoeffs ( const tmp< scalarField > & ) const

virtual

Definition at line 159 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ valueBoundaryCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > valueBoundaryCoeffs ( const tmp< scalarField > & ) const

virtual

Definition at line 169 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ gradientBoundaryCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > gradientBoundaryCoeffs ( ) const

virtual

Definition at line 179 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ gradientInternalCoeffs()

Foam::tmp< Foam::Field< Foam::vector > > gradientInternalCoeffs ( ) const

virtual

Definition at line 187 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References Foam::New(), and Foam::Zero.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Definition at line 194 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References os(), fvPatchField::write(), and Ostream::writeEntry().

Here is the call graph for this function:

◆ operator=()

void operator= ( const fvPatchField< vector > & pvf )

virtual

Definition at line 207 of file adjointOutletVelocityFluxFvPatchVectorField.C.

References fvPatchField::operator=(), and Foam::foamVersion::patch.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/adjointBoundaryConditions/adjointOutletVelocityFlux/adjointOutletVelocityFluxFvPatchVectorField.H
src/optimisation/adjointOptimisation/adjoint/adjointBoundaryConditions/adjointOutletVelocityFlux/adjointOutletVelocityFluxFvPatchVectorField.C
