activeBaffleVelocityFvPatchVectorField Class Reference
Boundary conditions » Coupled

This velocity boundary condition simulates the opening of a baffle due to local flow conditions, by merging the behaviours of wall and cyclic conditions. The baffle joins two mesh regions, where the open fraction determines the interpolation weights applied to each cyclic- and neighbour-patch contribution. More...

Inheritance diagram for activeBaffleVelocityFvPatchVectorField:
Inheritance graph
[legend]
Collaboration diagram for activeBaffleVelocityFvPatchVectorField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("activeBaffleVelocity")

 activeBaffleVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)

 activeBaffleVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)

 activeBaffleVelocityFvPatchVectorField (const activeBaffleVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)

 activeBaffleVelocityFvPatchVectorField (const activeBaffleVelocityFvPatchVectorField &)

virtual tmp< fvPatchVectorField > clone () const

 activeBaffleVelocityFvPatchVectorField (const activeBaffleVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)

virtual tmp< fvPatchVectorField > clone (const DimensionedField< vector, volMesh > &iF) const

virtual void autoMap (const fvPatchFieldMapper &)

virtual void rmap (const fvPatchVectorField &, const labelList &)

virtual void updateCoeffs ()

virtual void write (Ostream &) const


Detailed Description

This velocity boundary condition simulates the opening of a baffle due to local flow conditions, by merging the behaviours of wall and cyclic conditions. The baffle joins two mesh regions, where the open fraction determines the interpolation weights applied to each cyclic- and neighbour-patch contribution.

We determine whether the baffle is opening or closing from the sign of the net force across the baffle, from which the baffle open fraction is updated using:

\[ x = x_{old} + sign(F_{net})\frac{dt}{DT} \]

where

$ x $ = baffle open fraction [0-1]
$ x_{old} $ = baffle open fraction on previous evaluation
$ dt $ = simulation time step
$ DT $ = time taken to open the baffle
$ F_{net} $ = net force across the baffle

The open fraction is then applied to scale the patch areas.

Usage
Property Description Required Default value
p pressure field name no p
cyclicPatch cylclic patch name yes
orientation 1 or -1 used to switch flow direction yes
openFraction current opatch open fraction [0-1] yes
openingTime time taken to open the baffle yes
maxOpenFractionDelta max open fraction change per timestep yes

Example of the boundary condition specification:

    <patchName>
    {
        type            activeBaffleVelocity;
        p               p;
        cyclicPatch     cyclic1;
        orientation     1;
        openFraction    0.2;
        openingTime     5.0;
        maxOpenFractionDelta 0.1;
    }
See also
Foam::fixedValueFvPatchField Foam::cyclicFvPatchField
Source files

Definition at line 158 of file activeBaffleVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ activeBaffleVelocityFvPatchVectorField() [1/5]

activeBaffleVelocityFvPatchVectorField ( const fvPatch &  p,
const DimensionedField< vector, volMesh > &  iF
)

Definition at line 32 of file activeBaffleVelocityFvPatchVectorField.C.

Referenced by activeBaffleVelocityFvPatchVectorField::clone().

Here is the caller graph for this function:

◆ activeBaffleVelocityFvPatchVectorField() [2/5]

activeBaffleVelocityFvPatchVectorField ( const fvPatch &  p,
const DimensionedField< vector, volMesh > &  iF,
const dictionary &  dict
)

Definition at line 78 of file activeBaffleVelocityFvPatchVectorField.C.

References Foam::Zero.

◆ activeBaffleVelocityFvPatchVectorField() [3/5]

activeBaffleVelocityFvPatchVectorField ( const activeBaffleVelocityFvPatchVectorField &  ptf,
const fvPatch &  p,
const DimensionedField< vector, volMesh > &  iF,
const fvPatchFieldMapper &  mapper
)

Definition at line 54 of file activeBaffleVelocityFvPatchVectorField.C.

◆ activeBaffleVelocityFvPatchVectorField() [4/5]

activeBaffleVelocityFvPatchVectorField ( const activeBaffleVelocityFvPatchVectorField &  ptf)

Definition at line 110 of file activeBaffleVelocityFvPatchVectorField.C.

◆ activeBaffleVelocityFvPatchVectorField() [5/5]

activeBaffleVelocityFvPatchVectorField ( const activeBaffleVelocityFvPatchVectorField &  ptf,
const DimensionedField< vector, volMesh > &  iF
)

Definition at line 131 of file activeBaffleVelocityFvPatchVectorField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "activeBaffleVelocity"  )

◆ clone() [1/2]

virtual tmp<fvPatchVectorField> clone ( ) const
inlinevirtual

Definition at line 241 of file activeBaffleVelocityFvPatchVectorField.H.

References activeBaffleVelocityFvPatchVectorField::activeBaffleVelocityFvPatchVectorField().

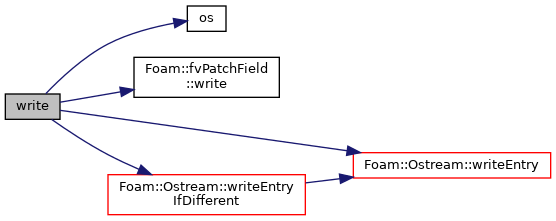

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp<fvPatchVectorField> clone ( const DimensionedField< vector, volMesh > &  iF) const
inlinevirtual

Definition at line 258 of file activeBaffleVelocityFvPatchVectorField.H.

References activeBaffleVelocityFvPatchVectorField::activeBaffleVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ autoMap()

void autoMap ( const fvPatchFieldMapper &  m)
virtual

Definition at line 154 of file activeBaffleVelocityFvPatchVectorField.C.

References Foam::foamVersion::patch.

◆ rmap()

void rmap ( const fvPatchVectorField &  ptf,
const labelList &  addr
)
virtual

Definition at line 183 of file activeBaffleVelocityFvPatchVectorField.C.

References Foam::foamVersion::patch.

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Definition at line 207 of file activeBaffleVelocityFvPatchVectorField.C.

References Foam::constant::electromagnetic::e, Foam::endl(), polyPatch::faceCells(), forAll, Foam::Info, Foam::mag(), fvPatch::magSf(), Foam::max(), Foam::min(), p, Foam::foamVersion::patch, fvPatch::patch(), fvPatch::Sf(), Foam::sign(), and timeIndex.

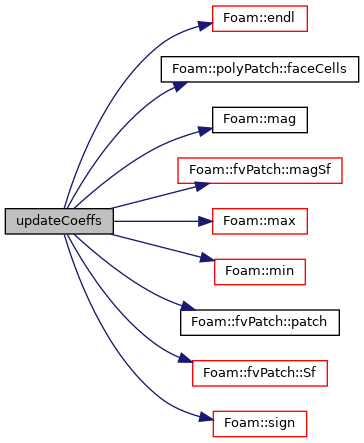

Here is the call graph for this function:

◆ write()

void write ( Ostream &  os) const
virtual

Definition at line 289 of file activeBaffleVelocityFvPatchVectorField.C.

References os(), fvPatchField::write(), Ostream::writeEntry(), and Ostream::writeEntryIfDifferent().

Here is the call graph for this function:
