mixtureKEpsilon< BasicTurbulenceModel > Class Template Reference
Turbulence models » RAS turbulence

Mixture k-epsilon turbulence model for two-phase gas-liquid systems. More...

Inheritance diagram for mixtureKEpsilon< BasicTurbulenceModel >:
Inheritance graph
[legend]

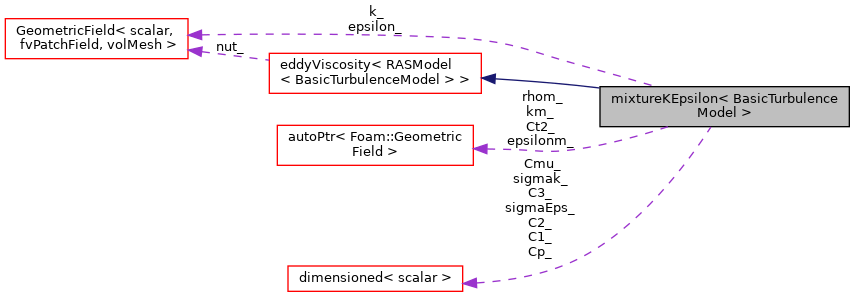

Collaboration diagram for mixtureKEpsilon< BasicTurbulenceModel >:
Collaboration graph
[legend]

Public Types

typedef BasicTurbulenceModel::alphaField alphaField

typedef BasicTurbulenceModel::rhoField rhoField

typedef BasicTurbulenceModel::transportModel transportModel

- Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef RASModel< BasicTurbulenceModel > ::alphaField alphaField

typedef RASModel< BasicTurbulenceModel > ::rhoField rhoField

typedef RASModel< BasicTurbulenceModel > ::transportModel transportModel

- Public Types inherited from linearViscousStress< RASModel< BasicTurbulenceModel > >
typedef RASModel< BasicTurbulenceModel > ::alphaField alphaField

typedef RASModel< BasicTurbulenceModel > ::rhoField rhoField

typedef RASModel< BasicTurbulenceModel > ::transportModel transportModel

- Public Types inherited from RASModel< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField alphaField

typedef BasicTurbulenceModel::rhoField rhoField

typedef BasicTurbulenceModel::transportModel transportModel


Public Member Functions

 TypeName ("mixtureKEpsilon")

 mixtureKEpsilon (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)

virtual ~mixtureKEpsilon ()=default

virtual bool read ()

virtual tmp< volScalarField > k () const

virtual tmp< volScalarField > epsilon () const

virtual void correct ()

- Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
 eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)

virtual ~eddyViscosity ()=default

virtual tmp< volScalarField > nut () const

virtual tmp< scalarField > nut (const label patchi) const

virtual tmp< volScalarField > k () const=0

virtual tmp< volSymmTensorField > R () const

virtual void validate ()

- Public Member Functions inherited from linearViscousStress< RASModel< BasicTurbulenceModel > >
 linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)

virtual ~linearViscousStress ()=default

virtual tmp< volSymmTensorField > devRhoReff () const

virtual tmp< volSymmTensorField > devRhoReff (const volVectorField &U) const

virtual tmp< fvVectorMatrix > divDevRhoReff (volVectorField &U) const

virtual tmp< fvVectorMatrix > divDevRhoReff (const volScalarField &rho, volVectorField &U) const

- Public Member Functions inherited from RASModel< BasicTurbulenceModel >
 TypeName ("RAS")

 declareRunTimeSelectionTable (autoPtr, RASModel, dictionary,(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName),(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName))

 RASModel (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)

virtual ~RASModel ()=default

const dimensionedScalar & kMin () const

const dimensionedScalar & epsilonMin () const

const dimensionedScalar & omegaMin () const

dimensionedScalar & kMin ()

dimensionedScalar & epsilonMin ()

dimensionedScalar & omegaMin ()

virtual const dictionary & coeffDict () const

virtual tmp< volScalarField > nuEff () const

virtual tmp< scalarField > nuEff (const label patchi) const

virtual tmp< volScalarField > omega () const


Protected Member Functions

wordList epsilonBoundaryTypes (const volScalarField &epsilon) const

void correctInletOutlet (volScalarField &vsf, const volScalarField &refVsf) const

void initMixtureFields ()

virtual void correctNut ()

tmp< volScalarField > Ct2 () const

tmp< volScalarField > rholEff () const

tmp< volScalarField > rhogEff () const

tmp< volScalarField > rhom () const

tmp< volScalarField > mix (const volScalarField &fc, const volScalarField &fd) const

tmp< volScalarField > mixU (const volScalarField &fc, const volScalarField &fd) const

tmp< surfaceScalarField > mixFlux (const surfaceScalarField &fc, const surfaceScalarField &fd) const

tmp< volScalarField > bubbleG () const

virtual tmp< fvScalarMatrix > kSource () const

virtual tmp< fvScalarMatrix > epsilonSource () const

tmp< volScalarField > DkEff (const volScalarField &nutm) const

tmp< volScalarField > DepsilonEff (const volScalarField &nutm) const

- Protected Member Functions inherited from RASModel< BasicTurbulenceModel >
virtual void printCoeffs (const word &type)

 RASModel (const RASModel &)=delete

void operator= (const RASModel &)=delete


Protected Attributes

dimensionedScalar Cmu_

dimensionedScalar C1_

dimensionedScalar C2_

dimensionedScalar C3_

dimensionedScalar Cp_

dimensionedScalar sigmak_

dimensionedScalar sigmaEps_

volScalarField k_

volScalarField epsilon_

autoPtr< volScalarField > Ct2_

autoPtr< volScalarField > rhom_

autoPtr< volScalarField > km_

autoPtr< volScalarField > epsilonm_

- Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField nut_

- Protected Attributes inherited from RASModel< BasicTurbulenceModel >
dictionary RASDict_

Switch turbulence_

Switch printCoeffs_

dictionary coeffDict_

dimensionedScalar kMin_

dimensionedScalar epsilonMin_

dimensionedScalar omegaMin_


Additional Inherited Members

- Static Public Member Functions inherited from RASModel< BasicTurbulenceModel >
static autoPtr< RASModel > New (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)


Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::mixtureKEpsilon< BasicTurbulenceModel >

Mixture k-epsilon turbulence model for two-phase gas-liquid systems.

The basic structure of the model is based on:

    Behzadi, A., Issa, R. I., & Rusche, H. (2004).
    Modelling of dispersed bubble and droplet flow at high phase fractions.
    Chemical Engineering Science, 59(4), 759-770.

but an effective density for the gas is used in the averaging and an alternative model for bubble-generated turbulence from:

    Lahey Jr, R. T. (2005).
    The simulation of multidimensional multiphase flows.
    Nuclear Engineering and Design, 235(10), 1043-1060.

The default model coefficients are

    mixtureKEpsilonCoeffs
    {
        Cmu         0.09;
        C1          1.44;
        C2          1.92;
        C3          C2;
        sigmak      1.0;
        sigmaEps    1.3;
    }
Source files

Definition at line 82 of file mixtureKEpsilon.H.

Member Typedef Documentation

◆ alphaField

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 200 of file mixtureKEpsilon.H.

◆ rhoField

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 201 of file mixtureKEpsilon.H.

◆ transportModel

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 202 of file mixtureKEpsilon.H.

Constructor & Destructor Documentation

◆ mixtureKEpsilon()

mixtureKEpsilon ( const alphaField &  alpha,
const rhoField &  rho,
const volVectorField &  U,
const surfaceScalarField &  alphaRhoPhi,
const surfaceScalarField &  phi,
const transportModel &  transport,
const word &  propertiesName = turbulenceModel::propertiesName,
const word &  type = typeName
)

Definition at line 43 of file mixtureKEpsilon.C.

References Foam::bound(), and Foam::type().

Here is the call graph for this function:

◆ ~mixtureKEpsilon()

virtual ~mixtureKEpsilon ( )
virtualdefault

Member Function Documentation

◆ epsilonBoundaryTypes()

wordList epsilonBoundaryTypes ( const volScalarField &  epsilon) const
protected

Definition at line 169 of file mixtureKEpsilon.C.

References epsilon, forAll, and GeometricField::Boundary::types().

Here is the call graph for this function:

◆ correctInletOutlet()

void correctInletOutlet ( volScalarField &  vsf,
const volScalarField &  refVsf
) const
protected

Definition at line 191 of file mixtureKEpsilon.C.

References GeometricField::boundaryField(), GeometricField::boundaryFieldRef(), and forAll.

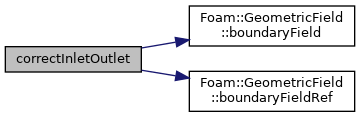

Here is the call graph for this function:

◆ initMixtureFields()

void initMixtureFields
protected

Definition at line 218 of file mixtureKEpsilon.C.

References IOobject::AUTO_WRITE, GeometricField::boundaryField(), mixtureKEpsilon< BasicTurbulenceModel >::epsilon_, mixtureKEpsilon< BasicTurbulenceModel >::k_, IOobject::READ_IF_PRESENT, and GeometricField::Boundary::types().

Here is the call graph for this function:

◆ correctNut()

void correctNut
protectedvirtual

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 329 of file mixtureKEpsilon.C.

References optionList::correct(), options::New(), and Foam::sqr().

Referenced by mixtureKEpsilon< BasicTurbulenceModel >::correct().

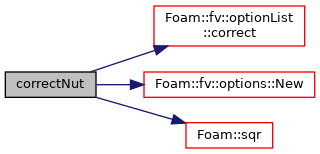

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Ct2()

tmp< volScalarField > Ct2
protected

Definition at line 371 of file mixtureKEpsilon.C.

References beta(), mixtureKEpsilon< BasicTurbulenceModel >::epsilon_, Foam::exp(), fluid, mixtureKEpsilon< BasicTurbulenceModel >::k_, Foam::mag(), liquid::rho(), Foam::sqr(), and Foam::sqrt().

Here is the call graph for this function:

◆ rholEff()

tmp< volScalarField > rholEff
protected

Definition at line 398 of file mixtureKEpsilon.C.

References fluid.

◆ rhogEff()

tmp< volScalarField > rhogEff
protected

Definition at line 407 of file mixtureKEpsilon.C.

References virtualMassModel::Cvm(), and fluid.

Here is the call graph for this function:

◆ rhom()

tmp< volScalarField > rhom
protected

Definition at line 420 of file mixtureKEpsilon.C.

References alphal.

◆ mix()

tmp< volScalarField > mix ( const volScalarField &  fc,
const volScalarField &  fd
) const
protected

Definition at line 431 of file mixtureKEpsilon.C.

References alphal.

◆ mixU()

tmp< volScalarField > mixU ( const volScalarField &  fc,
const volScalarField &  fd
) const
protected

Definition at line 445 of file mixtureKEpsilon.C.

References alphal.

◆ mixFlux()

tmp< surfaceScalarField > mixFlux ( const surfaceScalarField &  fc,
const surfaceScalarField &  fd
) const
protected

Definition at line 461 of file mixtureKEpsilon.C.

References alphal, and Foam::fvc::interpolate().

Here is the call graph for this function:

◆ bubbleG()

tmp< volScalarField > bubbleG
protected

Definition at line 482 of file mixtureKEpsilon.C.

References drag, fluid, Foam::mag(), Foam::pow(), Foam::pow3(), and liquid::rho().

Here is the call graph for this function:

◆ kSource()

tmp< fvScalarMatrix > kSource
protectedvirtual

Definition at line 520 of file mixtureKEpsilon.C.

References Foam::fvm::Su().

Here is the call graph for this function:

◆ epsilonSource()

tmp< fvScalarMatrix > epsilonSource
protectedvirtual

Definition at line 527 of file mixtureKEpsilon.C.

References Foam::fvm::Su().

Here is the call graph for this function:

◆ DkEff()

tmp<volScalarField> DkEff ( const volScalarField &  nutm) const
inlineprotected

Definition at line 173 of file mixtureKEpsilon.H.

References mixtureKEpsilon< BasicTurbulenceModel >::sigmak_.

◆ DepsilonEff()

tmp<volScalarField> DepsilonEff ( const volScalarField &  nutm) const
inlineprotected

Definition at line 186 of file mixtureKEpsilon.H.

References mixtureKEpsilon< BasicTurbulenceModel >::sigmaEps_.

◆ TypeName()

TypeName ( "mixtureKEpsilon< BasicTurbulenceModel >"  )

◆ read()

bool read
virtual

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 309 of file mixtureKEpsilon.C.

References Foam::read().

Here is the call graph for this function:

◆ k()

virtual tmp<volScalarField> k ( ) const
inlinevirtual

Definition at line 235 of file mixtureKEpsilon.H.

References mixtureKEpsilon< BasicTurbulenceModel >::k_.

◆ epsilon()

virtual tmp<volScalarField> epsilon ( ) const
inlinevirtual

Reimplemented from RASModel< BasicTurbulenceModel >.

Definition at line 241 of file mixtureKEpsilon.H.

References mixtureKEpsilon< BasicTurbulenceModel >::epsilon_.

◆ correct()

void correct
virtual

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 534 of file mixtureKEpsilon.C.

References Foam::fvc::absolute(), alphal, Foam::bound(), GeometricField::boundaryFieldRef(), tmp::clear(), correct(), GeometricField::correctBoundaryConditions(), mixtureKEpsilon< BasicTurbulenceModel >::correctNut(), Foam::fvm::ddt(), Foam::dev(), Foam::fvm::div(), Foam::fvc::div(), mixtureKEpsilon< BasicTurbulenceModel >::epsilon_, fluid, fvOptions, Foam::fvc::grad(), mixtureKEpsilon< BasicTurbulenceModel >::k_, Foam::fvm::laplacian(), options::New(), nu, eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phi, phig(), tmp::ref(), Foam::solve(), Foam::fvm::Sp(), Foam::fvm::SuSp(), Foam::twoSymm(), and GeometricField::Boundary::updateCoeffs().

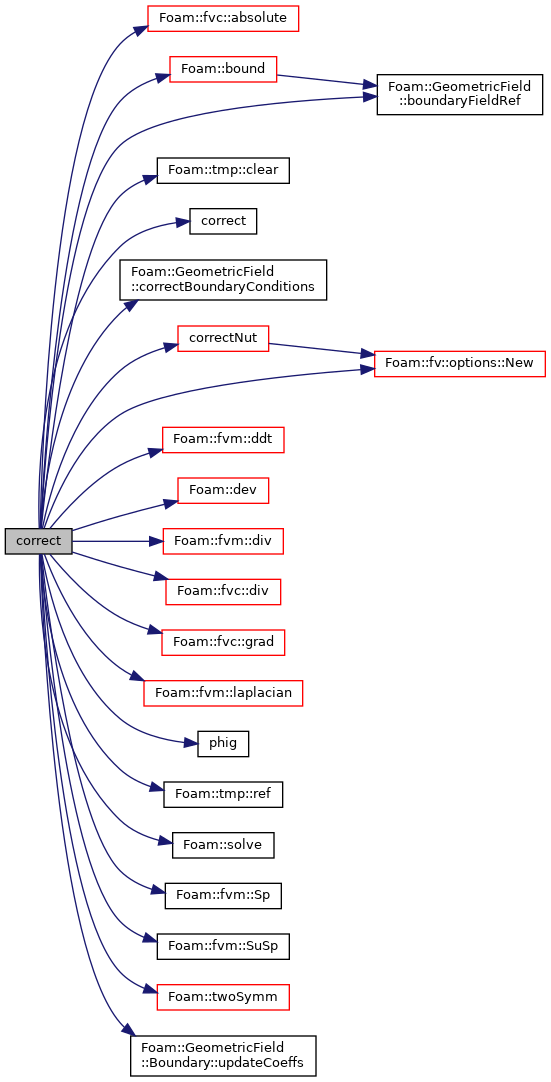

Here is the call graph for this function:

Member Data Documentation

◆ Cmu_

dimensionedScalar Cmu_
protected

Definition at line 109 of file mixtureKEpsilon.H.

◆ C1_

dimensionedScalar C1_
protected

Definition at line 110 of file mixtureKEpsilon.H.

◆ C2_

dimensionedScalar C2_
protected

Definition at line 111 of file mixtureKEpsilon.H.

◆ C3_

dimensionedScalar C3_
protected

Definition at line 112 of file mixtureKEpsilon.H.

◆ Cp_

dimensionedScalar Cp_
protected

Definition at line 113 of file mixtureKEpsilon.H.

◆ sigmak_

dimensionedScalar sigmak_
protected

Definition at line 114 of file mixtureKEpsilon.H.

Referenced by mixtureKEpsilon< BasicTurbulenceModel >::DkEff().

◆ sigmaEps_

dimensionedScalar sigmaEps_
protected

Definition at line 115 of file mixtureKEpsilon.H.

Referenced by mixtureKEpsilon< BasicTurbulenceModel >::DepsilonEff().

◆ k_

volScalarField k_
protected

Definition at line 119 of file mixtureKEpsilon.H.

Referenced by mixtureKEpsilon< BasicTurbulenceModel >::correct(), mixtureKEpsilon< BasicTurbulenceModel >::Ct2(), mixtureKEpsilon< BasicTurbulenceModel >::initMixtureFields(), and mixtureKEpsilon< BasicTurbulenceModel >::k().

◆ epsilon_

volScalarField epsilon_
protected

Definition at line 120 of file mixtureKEpsilon.H.

Referenced by mixtureKEpsilon< BasicTurbulenceModel >::correct(), mixtureKEpsilon< BasicTurbulenceModel >::Ct2(), mixtureKEpsilon< BasicTurbulenceModel >::epsilon(), and mixtureKEpsilon< BasicTurbulenceModel >::initMixtureFields().

◆ Ct2_

autoPtr<volScalarField> Ct2_
protected

Definition at line 124 of file mixtureKEpsilon.H.

◆ rhom_

autoPtr<volScalarField> rhom_
protected

Definition at line 125 of file mixtureKEpsilon.H.

◆ km_

autoPtr<volScalarField> km_
protected

Definition at line 126 of file mixtureKEpsilon.H.

◆ epsilonm_

autoPtr<volScalarField> epsilonm_
protected

Definition at line 127 of file mixtureKEpsilon.H.

The documentation for this class was generated from the following files:

Copyright © 2011-2018  OpenFOAM | OPENFOAM® is a registered trademark of OpenCFD Ltd.

Generated by   doxygen 1.8.17
