PDRobstacle Class Reference

Obstacle definitions for PDR. More...

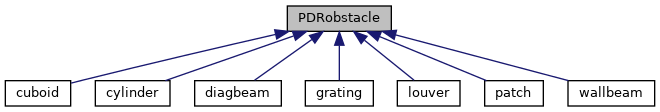

Inheritance diagram for PDRobstacle:
Inheritance graph
[legend]

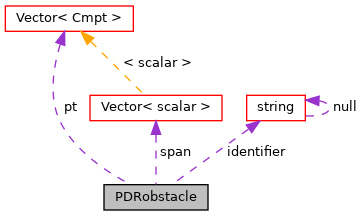

Collaboration diagram for PDRobstacle:
Collaboration graph
[legend]

Public Types

enum  legacyTypes {
  NONE = 0, CUBOID_1 = 1, CYLINDER = 2, LOUVER_BLOWOFF = 5,
  LOUVRE_BLOWOFF = 5, CUBOID = 6, WALL_BEAM = 7, GRATING = 8,
  OLD_INLET = 9, OLD_BLOWOFF = 10, CIRC_PATCH = 12, RECT_PATCH = 16,
  DIAG_BEAM = 22, IGNITION = 41, MESH_PLANE = 46, IGNORE = 200
}


Public Member Functions

scalar dia () const

scalar theta () const

scalar len () const

scalar & dia ()

scalar & theta ()

scalar & len ()

 PDRobstacle ()

 PDRobstacle (Istream &is)

 declareMemberFunctionSelectionTable (void, PDRobstacle, read, dictionary,(PDRobstacle &obs, const dictionary &dict),(obs, dict))

bool read (Istream &is)

void readProperties (const dictionary &dict)

scalar x () const

scalar y () const

scalar z () const

scalar & x ()

scalar & y ()

scalar & z ()

bool isCylinder () const

void clear ()

void scale (const scalar factor)

scalar volume () const

bool tooSmall (const scalar minWidth) const

bool setFromLegacy (const int groupTypeId, const string &buffer, const label lineNo=-1, const word &inputFile=word::null)

volumeType trim (const boundBox &bb)

meshedSurface surface () const

InfoProxy< PDRobstacle > info () const


Static Public Member Functions

static scalar legacyReadFiles (const fileName &obsFileDir, const wordList &obsFileNames, const boundBox &meshBb, DynamicList< PDRobstacle > &blocks, DynamicList< PDRobstacle > &cylinders)

static scalar readFiles (const fileName &obsFileDir, const wordList &obsFileNames, const boundBox &meshBb, DynamicList< PDRobstacle > &blocks, DynamicList< PDRobstacle > &cylinders)

static bool isCylinder (const label id)

static label addPieces (vtk::surfaceWriter &surfWriter, const UList< PDRobstacle > &list, label pieceId=0)

static void generateVtk (const fileName &outputDir, const UList< PDRobstacle > &obslist, const UList< PDRobstacle > &cyllist)


Public Attributes

label groupId

int typeId

direction orient

scalar sortBias

point pt

vector span

union {
   scalar   wa

   scalar   slat_width

   scalar   blowoff_press

};

union {
   scalar   wb

   scalar   blowoff_time

};

scalar vbkge

scalar xbkge

scalar ybkge

scalar zbkge

union {
   int   blowoff_type

   int   inlet_dirn

};

string identifier


Static Public Attributes

static constexpr int maxBlowoffPressure = 10


Friends

Istream & operator>> (Istream &is, PDRobstacle &obs)


Detailed Description

Obstacle definitions for PDR.

Source files

Definition at line 70 of file PDRobstacle.H.

Member Enumeration Documentation

◆ legacyTypes

enum legacyTypes
Enumerator
NONE

Placeholder.

CUBOID_1
CYLINDER
LOUVER_BLOWOFF
LOUVRE_BLOWOFF
CUBOID
WALL_BEAM
GRATING
OLD_INLET

ignored (old)

OLD_BLOWOFF

ignored (old)

CIRC_PATCH
RECT_PATCH
DIAG_BEAM
IGNITION

ignored (old)

MESH_PLANE
IGNORE

Definition at line 75 of file PDRobstacle.H.

Constructor & Destructor Documentation

◆ PDRobstacle() [1/2]

PDRobstacle ( )

◆ PDRobstacle() [2/2]

PDRobstacle ( Istream &  is)
explicit

Member Function Documentation

◆ dia() [1/2]

scalar dia ( ) const
inline

Definition at line 126 of file PDRobstacle.H.

References PDRobstacle::span, and Vector< scalar >::X.

◆ theta() [1/2]

scalar theta ( ) const
inline

Definition at line 127 of file PDRobstacle.H.

References PDRobstacle::span, and Vector< scalar >::Y.

◆ len() [1/2]

scalar len ( ) const
inline

Definition at line 128 of file PDRobstacle.H.

References PDRobstacle::span, and Vector< scalar >::Z.

◆ dia() [2/2]

scalar& dia ( )
inline

Definition at line 130 of file PDRobstacle.H.

References PDRobstacle::span, and Vector< scalar >::X.

◆ theta() [2/2]

scalar& theta ( )
inline

Definition at line 131 of file PDRobstacle.H.

References PDRobstacle::span, and Vector< scalar >::Y.

◆ len() [2/2]

scalar& len ( )
inline

Definition at line 132 of file PDRobstacle.H.

References PDRobstacle::span, and Vector< scalar >::Z.

◆ declareMemberFunctionSelectionTable()

declareMemberFunctionSelectionTable ( void  ,
PDRobstacle  ,
read  ,
dictionary  ,
(PDRobstacle &obs, const dictionary &dict)  ,
(obs, dict)
)

◆ legacyReadFiles()

static scalar legacyReadFiles ( const fileName &  obsFileDir,
const wordList &  obsFileNames,
const boundBox &  meshBb,
DynamicList< PDRobstacle > &  blocks,
DynamicList< PDRobstacle > &  cylinders
)
static

◆ readFiles()

static scalar readFiles ( const fileName &  obsFileDir,
const wordList &  obsFileNames,
const boundBox &  meshBb,
DynamicList< PDRobstacle > &  blocks,
DynamicList< PDRobstacle > &  cylinders
)
static

◆ read()

bool read ( Istream &  is)

◆ readProperties()

void readProperties ( const dictionary &  dict)

◆ x() [1/2]

scalar x ( ) const
inline

Definition at line 221 of file PDRobstacle.H.

References PDRobstacle::pt, and Vector< Cmpt >::x().

Here is the call graph for this function:

◆ y() [1/2]

scalar y ( ) const
inline

Definition at line 222 of file PDRobstacle.H.

References PDRobstacle::pt, and Vector< Cmpt >::y().

Here is the call graph for this function:

◆ z() [1/2]

scalar z ( ) const
inline

Definition at line 223 of file PDRobstacle.H.

References PDRobstacle::pt, and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ x() [2/2]

scalar& x ( )
inline

Definition at line 224 of file PDRobstacle.H.

References PDRobstacle::pt, and Vector< Cmpt >::x().

Here is the call graph for this function:

◆ y() [2/2]

scalar& y ( )
inline

Definition at line 225 of file PDRobstacle.H.

References PDRobstacle::pt, and Vector< Cmpt >::y().

Here is the call graph for this function:

◆ z() [2/2]

scalar& z ( )
inline

Definition at line 226 of file PDRobstacle.H.

References PDRobstacle::pt, and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ isCylinder() [1/2]

bool isCylinder ( const label  id)
inlinestatic

Definition at line 23 of file PDRobstacleI.H.

References PDRobstacle::CYLINDER, and PDRobstacle::DIAG_BEAM.

◆ isCylinder() [2/2]

bool isCylinder ( ) const
inline

Definition at line 33 of file PDRobstacleI.H.

◆ clear()

void clear ( )

◆ scale()

void scale ( const scalar  factor)

◆ volume()

scalar volume ( ) const

◆ tooSmall()

bool tooSmall ( const scalar  minWidth) const

◆ setFromLegacy()

bool setFromLegacy ( const int  groupTypeId,
const string &  buffer,
const label  lineNo = -1,
const word &  inputFile = word::null
)

◆ trim()

volumeType trim ( const boundBox &  bb)

◆ surface()

meshedSurface surface ( ) const

◆ addPieces()

static label addPieces ( vtk::surfaceWriter &  surfWriter,
const UList< PDRobstacle > &  list,
label  pieceId = 0
)
static

◆ generateVtk()

static void generateVtk ( const fileName &  outputDir,
const UList< PDRobstacle > &  obslist,
const UList< PDRobstacle > &  cyllist
)
static

◆ info()

InfoProxy<PDRobstacle> info ( ) const
inline

Definition at line 289 of file PDRobstacle.H.

Friends And Related Function Documentation

◆ operator>>

Istream& operator>> ( Istream &  is,
PDRobstacle &  obs
)
friend

Member Data Documentation

◆ maxBlowoffPressure

constexpr int maxBlowoffPressure = 10
staticconstexpr

Definition at line 100 of file PDRobstacle.H.

◆ groupId

label groupId

Definition at line 106 of file PDRobstacle.H.

◆ typeId

int typeId

Definition at line 109 of file PDRobstacle.H.

◆ orient

direction orient

Definition at line 112 of file PDRobstacle.H.

◆ sortBias

scalar sortBias

Definition at line 115 of file PDRobstacle.H.

◆ pt

point pt

Definition at line 119 of file PDRobstacle.H.

Referenced by PDRobstacle::x(), PDRobstacle::y(), and PDRobstacle::z().

◆ span

vector span

Definition at line 122 of file PDRobstacle.H.

Referenced by PDRobstacle::dia(), PDRobstacle::len(), and PDRobstacle::theta().

◆ wa

scalar wa

Definition at line 136 of file PDRobstacle.H.

◆ slat_width

scalar slat_width

Definition at line 137 of file PDRobstacle.H.

◆ blowoff_press

scalar blowoff_press

Definition at line 138 of file PDRobstacle.H.

◆ @4

union { ... }

◆ wb

scalar wb

Definition at line 142 of file PDRobstacle.H.

◆ blowoff_time

scalar blowoff_time

Definition at line 143 of file PDRobstacle.H.

◆ @6

union { ... }

◆ vbkge

scalar vbkge

Definition at line 145 of file PDRobstacle.H.

◆ xbkge

scalar xbkge

Definition at line 146 of file PDRobstacle.H.

◆ ybkge

scalar ybkge

Definition at line 147 of file PDRobstacle.H.

◆ zbkge

scalar zbkge

Definition at line 148 of file PDRobstacle.H.

◆ blowoff_type

int blowoff_type

Definition at line 152 of file PDRobstacle.H.

◆ inlet_dirn

int inlet_dirn

Definition at line 153 of file PDRobstacle.H.

◆ @8

union { ... }

◆ identifier

string identifier

Definition at line 156 of file PDRobstacle.H.

The documentation for this class was generated from the following files:
