A single block x-y-z rectilinear mesh addressable as i,j,k with simplified creation. Some of the input is similar to blockMeshDict, but since this specialization is for a single-block that is aligned with the x-y-z directions, it provides a different means of specifying the mesh. More...

Inheritance diagram for PDRblock:

[legend]

Collaboration diagram for PDRblock:

[legend]

Classes
struct	gridControl

class	location

Public Types
enum	expansionType : uint8_t { EXPAND_UNIFORM, EXPAND_RATIO, EXPAND_RELATIVE }

Public Member Functions
	PDRblock ()

	PDRblock (const UList< scalar > &xgrid, const UList< scalar > &ygrid, const UList< scalar > &zgrid)

	PDRblock (const dictionary &dict, bool verboseOutput=false)

bool	read (const dictionary &dict)

void	reset (const UList< scalar > &xgrid, const UList< scalar > &ygrid, const UList< scalar > &zgrid)

const Vector< location > &	grid () const

Vector< gradingDescriptors >	grading () const

gradingDescriptors	grading (const direction cmpt) const

const boundBox &	bounds () const

const scalarMinMax &	edgeLimits () const

scalar	dx (const label i) const

scalar	dx (const labelVector &ijk) const

scalar	dy (const label j) const

scalar	dy (const labelVector &ijk) const

scalar	dz (const label k) const

scalar	dz (const labelVector &ijk) const

vector	span (const label i, const label j, const label k) const

vector	span (const labelVector &ijk) const

point	grid (const label i, const label j, const label k) const

point	grid (const labelVector &ijk) const

point	C (const label i, const label j, const label k) const

point	C (const labelVector &ijk) const

scalar	V (const label i, const label j, const label k) const

scalar	V (const labelVector &ijk) const

scalar	width (const label i, const label j, const label k) const

scalar	width (const labelVector &ijk) const

labelVector	findCell (const point &pt) const

labelVector	gridIndex (const point &pt, const scalar relTol=0.01) const

Ostream &	blockMeshDict (Ostream &os, const bool withHeader=false) const

dictionary	blockMeshDict () const

void	writeBlockMeshDict (const IOobject &io) const

autoPtr< polyMesh >	mesh (const IOobject &io) const

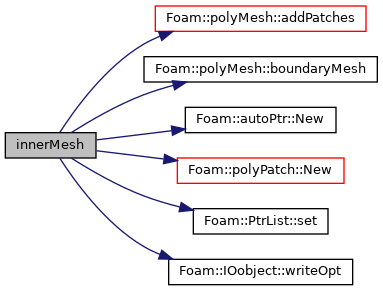

autoPtr< polyMesh >	innerMesh (const IOobject &io) const

Public Member Functions inherited from ijkMesh
	ijkMesh ()

	ijkMesh (const labelVector &ijk)

	ijkMesh (const label nx, const label ny, const label nz)

label	nPoints () const

label	nCells () const

label	nFaces () const

label	nInternalFaces () const

label	nBoundaryFaces () const

label	nBoundaryFaces (const direction shapeFacei) const

label	cellLabel (const label i, const label j, const label k) const

label	cellLabel (const labelVector &ijk) const

label	pointLabel (const label i, const label j, const label k) const

label	pointLabel (const labelVector &ijk) const

hexCell	vertLabels (const label i, const label j, const label k) const

hexCell	vertLabels (const labelVector &ijk) const

Public Member Functions inherited from ijkAddressing
	ijkAddressing ()

	ijkAddressing (const labelVector &ijk)

	ijkAddressing (const label ni, const label nj, const label nk)

bool	empty () const

const labelVector &	sizes () const

labelVector &	sizes ()

label	size () const

const label &	size (const vector::components cmpt) const

void	clear ()

void	reset (const label ni, const label nj, const label nk)

void	reset (const labelVector &newSizes)

label	index (const label i, const label j, const label k) const

label	index (const labelVector &ijk) const

labelVector	index (const label idx) const

void	checkIndex (const label i, const label j, const label k, const bool allowExtra=false) const

void	checkIndex (const labelVector &ijk, const bool allowExtra=false) const

void	checkSizes () const

void	checkSizes (const labelVector &other) const

void	checkSizes (const label nTotal) const

Static Public Member Functions
static const PDRblock &	null ()

Static Public Attributes
const static Enum< expansionType >	expansionNames_

Detailed Description

A single block x-y-z rectilinear mesh addressable as i,j,k with simplified creation. Some of the input is similar to blockMeshDict, but since this specialization is for a single-block that is aligned with the x-y-z directions, it provides a different means of specifying the mesh.

Dictionary controls

Property	Description	Required	Default
`x`	X-direction grid specification	yes
`y`	Y-direction grid specification	yes
`z`	Z-direction grid specification	yes
`scale`	Point scaling	no	1.0
`expansion`	Type of expansion (ratio/relative)	no	ratio
`boundary`	Boundary patches	yes
`defaultPatch`	Default patch specification	no

Grid coordinate controls

Property	Description	Required
`points`	Locations defining the mesh segment	yes
`nCells`	Divisions per mesh segment	yes
`ratios`	Expansion values per segment	no

A negative expansion value is trapped and treated as its reciprocal. by default, the expansion is as per blockMesh and represents the ratio of end-size / start-size for the section. Alternatively, the relative size can be given.

Source files

Definition at line 149 of file PDRblock.H.

Member Enumeration Documentation

◆ expansionType

enum expansionType : uint8_t

Enumerator
EXPAND_UNIFORM	Uniform expansion (ie, no expansion)
EXPAND_RATIO	End/start ratio.
EXPAND_RELATIVE	Relative expansion ratio.

Definition at line 158 of file PDRblock.H.

Constructor & Destructor Documentation

◆ PDRblock() [1/3]

PDRblock ( )

Definition at line 508 of file PDRblock.C.

◆ PDRblock() [2/3]

PDRblock	(	const UList< scalar > &	xgrid,
		const UList< scalar > &	ygrid,
		const UList< scalar > &	zgrid
	)

Definition at line 515 of file PDRblock.C.

References Foam::name(), and reset().

Here is the call graph for this function:

◆ PDRblock() [3/3]

PDRblock	(	const dictionary &	dict,
		bool	verboseOutput = `false`
	)

explicit

Definition at line 541 of file PDRblock.C.

References dict, and PDRblock::read().

Here is the call graph for this function:

Member Function Documentation

◆ null()

const Foam::PDRblock & null ( )

static

Definition at line 106 of file PDRblock.C.

◆ read()

bool read ( const dictionary & dict )

Definition at line 561 of file PDRblock.C.

References dict, dictionary::findDict(), dictionary::getOrDefault(), Foam::Info, dictionary::read(), and dictionary::subDict().

Referenced by PDRblock::PDRblock().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

void reset	(	const UList< scalar > &	xgrid,
		const UList< scalar > &	ygrid,
		const UList< scalar > &	zgrid
	)

Definition at line 598 of file PDRblock.C.

References VectorSpace< Vector< scalar >, scalar, 3 >::nComponents.

◆ grid() [1/3]

const Foam::Vector< Foam::PDRblock::location > & grid ( ) const

inline

Definition at line 141 of file PDRblockI.H.

◆ grading() [1/2]

Foam::Vector< Foam::gradingDescriptors > grading ( ) const

Definition at line 706 of file PDRblock.C.

◆ grading() [2/2]

Foam::gradingDescriptors grading ( const direction cmpt ) const

Definition at line 712 of file PDRblock.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Vector< scalar >::X, Vector< scalar >::Y, and Vector< scalar >::Z.

Here is the call graph for this function:

◆ bounds()

const Foam::boundBox & bounds ( ) const

inline

Definition at line 153 of file PDRblockI.H.

◆ edgeLimits()

const Foam::scalarMinMax & edgeLimits ( ) const

inline

Definition at line 147 of file PDRblockI.H.

◆ dx() [1/2]

Foam::scalar dx ( const label i ) const

inline

Definition at line 159 of file PDRblockI.H.

Referenced by PDRblock::span(), and PDRblock::V().

Here is the caller graph for this function:

◆ dx() [2/2]

Foam::scalar dx ( const labelVector & ijk ) const

inline

Definition at line 165 of file PDRblockI.H.

References Vector< Cmpt >::x().

Here is the call graph for this function:

◆ dy() [1/2]

Foam::scalar dy ( const label j ) const

inline

Definition at line 171 of file PDRblockI.H.

Referenced by PDRblock::span(), and PDRblock::V().

Here is the caller graph for this function:

◆ dy() [2/2]

Foam::scalar dy ( const labelVector & ijk ) const

inline

Definition at line 177 of file PDRblockI.H.

References Vector< Cmpt >::y().

Here is the call graph for this function:

◆ dz() [1/2]

Foam::scalar dz ( const label k ) const

inline

Definition at line 183 of file PDRblockI.H.

References k.

Referenced by PDRblock::span(), and PDRblock::V().

Here is the caller graph for this function:

◆ dz() [2/2]

Foam::scalar dz ( const labelVector & ijk ) const

inline

Definition at line 189 of file PDRblockI.H.

References Vector< Cmpt >::z().

Here is the call graph for this function:

◆ span() [1/2]

Foam::vector span	(	const label	i,
		const label	j,
		const label	k
	)		const

inline

Definition at line 196 of file PDRblockI.H.

References PDRblock::dx(), PDRblock::dy(), PDRblock::dz(), and k.

Here is the call graph for this function:

◆ span() [2/2]

Foam::vector span ( const labelVector & ijk ) const

inline

Definition at line 206 of file PDRblockI.H.

References PDRblock::dx(), PDRblock::dy(), and PDRblock::dz().

Here is the call graph for this function:

◆ grid() [2/3]

Foam::point grid	(	const label	i,
		const label	j,
		const label	k
	)		const

inline

Definition at line 213 of file PDRblockI.H.

References k.

◆ grid() [3/3]

Foam::point grid ( const labelVector & ijk ) const

inline

Definition at line 223 of file PDRblockI.H.

References Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ C() [1/2]

Foam::point C	(	const label	i,
		const label	j,
		const label	k
	)		const

inline

Definition at line 236 of file PDRblockI.H.

References k.

◆ C() [2/2]

Foam::point C ( const labelVector & ijk ) const

inline

Definition at line 246 of file PDRblockI.H.

References Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ V() [1/2]

Foam::scalar V	(	const label	i,
		const label	j,
		const label	k
	)		const

inline

Definition at line 259 of file PDRblockI.H.

References PDRblock::dx(), PDRblock::dy(), PDRblock::dz(), and k.

Referenced by PDRblock::width().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ V() [2/2]

Foam::scalar V ( const labelVector & ijk ) const

inline

Definition at line 269 of file PDRblockI.H.

References PDRblock::dx(), PDRblock::dy(), PDRblock::dz(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ width() [1/2]

Foam::scalar width	(	const label	i,
		const label	j,
		const label	k
	)		const

inline

Definition at line 276 of file PDRblockI.H.

References Foam::cbrt(), k, and PDRblock::V().

Here is the call graph for this function:

◆ width() [2/2]

Foam::scalar width ( const labelVector & ijk ) const

inline

Definition at line 286 of file PDRblockI.H.

References Foam::cbrt(), and PDRblock::V().

Here is the call graph for this function:

◆ findCell()

Foam::labelVector findCell ( const point & pt ) const

Definition at line 676 of file PDRblock.C.

References Foam::pos().

Here is the call graph for this function:

◆ gridIndex()

Foam::labelVector gridIndex	(	const point &	pt,
		const scalar	relTol = `0.01`
	)		const

Definition at line 690 of file PDRblock.C.

References Foam::pos().

Here is the call graph for this function:

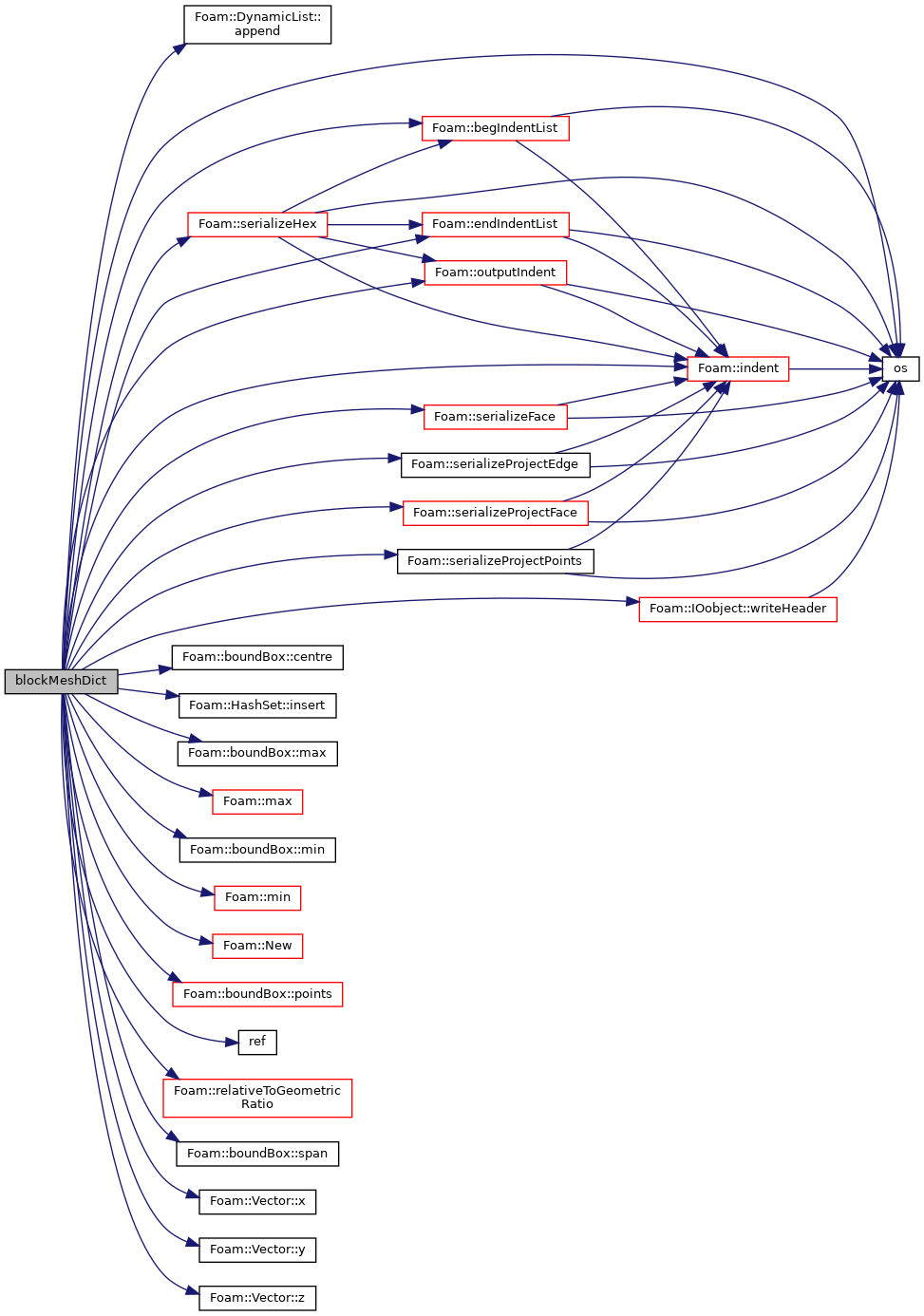

◆ blockMeshDict() [1/2]

Foam::Ostream & blockMeshDict	(	Ostream &	os,
		const bool	withHeader = `false`
	)		const

Definition at line 231 of file PDRblockBlockMesh.C.

References DynamicList::append(), Foam::begIndentList(), boundBox::centre(), Foam::constant::electromagnetic::e, Foam::endIndentList(), hex, Foam::indent(), HashSet::insert(), boundBox::max(), Foam::max(), boundBox::min(), Foam::min(), Foam::New(), Foam::nl, os(), Foam::outputIndent(), boundBox::points(), Foam::projGeomName, ref(), Foam::relativeToGeometricRatio(), Foam::serializeFace(), Foam::serializeHex(), Foam::serializeProjectEdge(), Foam::serializeProjectFace(), Foam::serializeProjectPoints(), boundBox::span(), IOobject::writeHeader(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ blockMeshDict() [2/2]

Foam::dictionary blockMeshDict ( ) const

Definition at line 770 of file PDRblockBlockMesh.C.

References os(), and List::transfer().

Here is the call graph for this function:

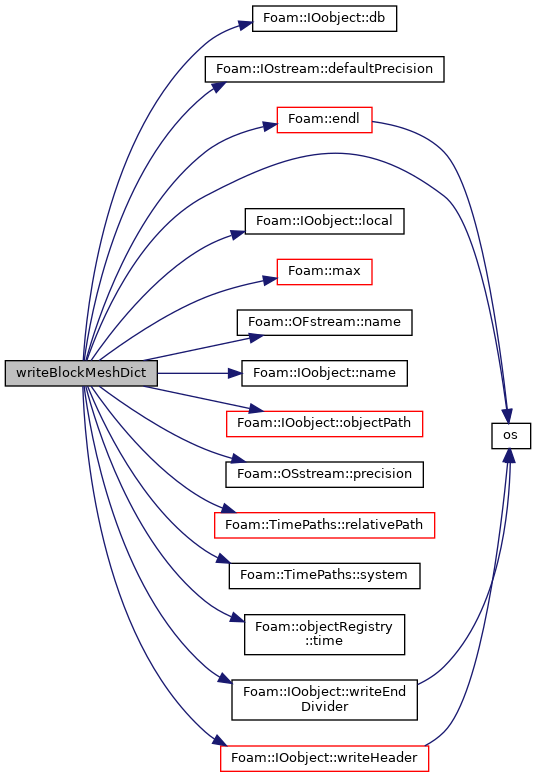

◆ writeBlockMeshDict()

void writeBlockMeshDict ( const IOobject & io ) const

Definition at line 782 of file PDRblockBlockMesh.C.

References IOobject::db(), IOstream::defaultPrecision(), Foam::endl(), Foam::Info, IOobject::local(), Foam::max(), OFstream::name(), IOobject::name(), Foam::nl, IOobject::NO_READ, IOobject::NO_WRITE, IOobject::objectPath(), os(), OSstream::precision(), TimePaths::relativePath(), TimePaths::system(), objectRegistry::time(), IOobject::writeEndDivider(), and IOobject::writeHeader().

Here is the call graph for this function:

◆ mesh()

Foam::autoPtr< Foam::polyMesh > mesh ( const IOobject & io ) const

Definition at line 374 of file PDRblockCreate.C.

References Foam::Info, and Foam::nl.

◆ innerMesh()

Foam::autoPtr< Foam::polyMesh > innerMesh ( const IOobject & io ) const

Definition at line 297 of file PDRblockCreate.C.

References polyMesh::addPatches(), IOobject::AUTO_WRITE, polyMesh::boundaryMesh(), meshPtr, autoPtr::New(), polyPatch::New(), nPoints, patches, PtrList::set(), and IOobject::writeOpt().

Here is the call graph for this function:

Member Data Documentation

◆ expansionNames_

const Foam::Enum< Foam::PDRblock::expansionType > expansionNames_

static

Definition at line 166 of file PDRblock.H.

The documentation for this class was generated from the following files:

src/mesh/blockMesh/PDRblockMesh/PDRblock.H
src/mesh/blockMesh/PDRblockMesh/PDRblock.C
src/mesh/blockMesh/PDRblockMesh/PDRblockBlockMesh.C
src/mesh/blockMesh/PDRblockMesh/PDRblockCreate.C
src/mesh/blockMesh/PDRblockMesh/PDRblockI.H
src/mesh/blockMesh/PDRblockMesh/PDRblockLocation.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

◆ expansionType

Constructor & Destructor Documentation

◆ PDRblock() [1/3]

◆ PDRblock() [2/3]

◆ PDRblock() [3/3]

Member Function Documentation

◆ null()

◆ read()

◆ reset()

◆ grid() [1/3]

◆ grading() [1/2]

◆ grading() [2/2]

◆ bounds()

◆ edgeLimits()

◆ dx() [1/2]

◆ dx() [2/2]

◆ dy() [1/2]

◆ dy() [2/2]

◆ dz() [1/2]

◆ dz() [2/2]

◆ span() [1/2]

◆ span() [2/2]

◆ grid() [2/3]

◆ grid() [3/3]

◆ C() [1/2]

◆ C() [2/2]

◆ V() [1/2]

◆ V() [2/2]

◆ width() [1/2]

◆ width() [2/2]

◆ findCell()

◆ gridIndex()

◆ blockMeshDict() [1/2]

◆ blockMeshDict() [2/2]

◆ writeBlockMeshDict()

◆ mesh()

◆ innerMesh()

Member Data Documentation

◆ expansionNames_
