Calculation of adjoint based sensitivities at wall faces. More...

Inheritance diagram for NURBS3DVolumeCylindrical:

Collaboration diagram for NURBS3DVolumeCylindrical:

Public Member Functions
	TypeName ("cylindrical")

	NURBS3DVolumeCylindrical (const dictionary &dict, const fvMesh &mesh, bool computeParamCoors=true)

virtual	~NURBS3DVolumeCylindrical ()=default

Public Member Functions inherited from NURBS3DVolume
	TypeName ("NURBS3DVolume")

	declareRunTimeSelectionTable (autoPtr, NURBS3DVolume, dictionary,(const dictionary &dict, const fvMesh &mesh, bool computeParamCoors),(dict, mesh, computeParamCoors))

	NURBS3DVolume (const dictionary &dict, const fvMesh &mesh, bool computeParamCoors=true)

	NURBS3DVolume (const NURBS3DVolume &)

virtual	~NURBS3DVolume ()=default

vector	volumeDerivativeU (const scalar u, const scalar v, const scalar w) const

vector	volumeDerivativeV (const scalar u, const scalar v, const scalar w) const

vector	volumeDerivativeW (const scalar u, const scalar v, const scalar w) const

tensor	JacobianUVW (const vector &u) const

scalar	volumeDerivativeCP (const vector &u, const label cpI) const

vectorField	computeControlPointSensitivities (const pointVectorField &pointSens, const labelList &sensitivityPatchIDs)

vectorField	computeControlPointSensitivities (const volVectorField &faceSens, const labelList &sensitivityPatchIDs)

vectorField	computeControlPointSensitivities (const boundaryVectorField &faceSens, const labelList &sensitivityPatchIDs)

vector	computeControlPointSensitivities (const vectorField &faceSens, const label patchI, const label cpI)

tmp< tensorField >	dndbBasedSensitivities (const label patchI, const label cpI, bool DimensionedNormalSens=true)

tmp< tensorField >	patchDxDb (const label patchI, const label cpI)

tmp< tensorField >	patchDxDbFace (const label patchI, const label cpI)

tmp< vectorField >	coordinates (const vectorField &uVector) const

vector	coordinates (const vector &uVector) const

tmp< vectorField >	computeNewPoints (const vectorField &controlPointsMovement)

tmp< vectorField >	computeNewBoundaryPoints (const vectorField &controlPointsMovement, const labelList &patchesToBeMoved)

label	getCPID (const label i, const label j, const label k) const

void	setControlPoints (const vectorField &newCps)

void	boundControlPointMovement (vectorField &controlPointsMovement)

scalar	computeMaxBoundaryDisplacement (const vectorField &controlPointsMovement, const labelList &patchesToBeMoved)

tmp< vectorField >	getPointsInBox ()

const labelList &	getMap ()

const labelList &	getReverseMap ()

const pointVectorField &	getParametricCoordinates ()

tmp< pointTensorField >	getDxDb (const label cpI)

tmp< volTensorField >	getDxCellsDb (const label cpI)

label	nUSymmetry () const

label	nVSymmetry () const

label	nWSymmetry () const

const word &	name () const

const boolList &	getActiveCPs () const

const boolList &	getActiveDesignVariables () const

const vectorField &	getControlPoints () const

vectorField &	getControlPoints ()

bool	confineUMovement () const

bool	confineVMovement () const

bool	confineWMovement () const

const NURBSbasis &	basisU () const

const NURBSbasis &	basisV () const

const NURBSbasis &	basisW () const

const fvMesh &	mesh () const

const dictionary &	dict () const

void	writeCps (const fileName &="cpsFile", const bool transform=true) const

void	writeCpsInDict () const

void	write () const

Protected Member Functions
vector	transformPointToCartesian (const vector &localCoordinates) const

tensor	transformationTensorDxDb (label globalPointIndex)

void	updateLocalCoordinateSystem (const vectorField &cartesianPoints)

Protected Member Functions inherited from NURBS3DVolume
void	findPointsInBox (const vectorField &meshPoints)

void	computeParametricCoordinates (const vectorField &points)

void	computeParametricCoordinates (tmp< vectorField > tPoints)

bool	bound (vector &vec, scalar minValue=1e-7, scalar maxValue=0.999999)

void	determineActiveDesignVariablesAndPoints ()

void	confineBoundaryControlPoints ()

void	continuityRealatedConfinement ()

void	confineControlPointsDirections ()

void	confineControlPoint (const label cpI)

void	confineControlPoint (const label cpI, const boolVector &)

void	makeFolders ()

Protected Attributes
vector	origin_

Protected Attributes inherited from NURBS3DVolume
const fvMesh &	mesh_

dictionary	dict_

word	name_

NURBSbasis	basisU_

NURBSbasis	basisV_

NURBSbasis	basisW_

label	maxIter_

scalar	tolerance_

label	nMaxBound_

vectorField	cps_

autoPtr< labelList >	mapPtr_

autoPtr< labelList >	reverseMapPtr_

autoPtr< pointVectorField >	parametricCoordinatesPtr_

vectorField	localSystemCoordinates_

label	confineUMovement_

label	confineVMovement_

label	confineWMovement_

label	confineBoundaryControlPoints_

boolVectorList	confineUMinCPs_

boolVectorList	confineUMaxCPs_

boolVectorList	confineVMinCPs_

boolVectorList	confineVMaxCPs_

boolVectorList	confineWMinCPs_

boolVectorList	confineWMaxCPs_

boolList	activeControlPoints_

boolList	activeDesignVariables_

string	cpsFolder_

bool	readStoredData_

Additional Inherited Members
Static Public Member Functions inherited from NURBS3DVolume
static autoPtr< NURBS3DVolume >	New (const dictionary &dict, const fvMesh &mesh, bool computeParamCoors=true)

Protected Types inherited from NURBS3DVolume
typedef List< boolVector >	boolVectorList

Detailed Description

Calculation of adjoint based sensitivities at wall faces.

Source files

Definition at line 49 of file NURBS3DVolumeCylindrical.H.

Constructor & Destructor Documentation

◆ NURBS3DVolumeCylindrical()

NURBS3DVolumeCylindrical	(	const dictionary &	dict,
		const fvMesh &	mesh,
		bool	computeParamCoors = `true`
	)

Definition at line 119 of file NURBS3DVolumeCylindrical.C.

References mesh.

◆ ~NURBS3DVolumeCylindrical()

virtual ~NURBS3DVolumeCylindrical ( )

virtualdefault

Member Function Documentation

◆ transformPointToCartesian()

Foam::vector transformPointToCartesian ( const vector & localCoordinates ) const

protectedvirtual

Implements NURBS3DVolume.

Definition at line 47 of file NURBS3DVolumeCylindrical.C.

References Foam::cos(), Foam::sin(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ transformationTensorDxDb()

Foam::tensor transformationTensorDxDb ( label globalPointIndex )

protectedvirtual

Implements NURBS3DVolume.

Definition at line 64 of file NURBS3DVolumeCylindrical.C.

References Foam::cos(), Foam::sin(), Vector< Cmpt >::x(), and Vector< Cmpt >::y().

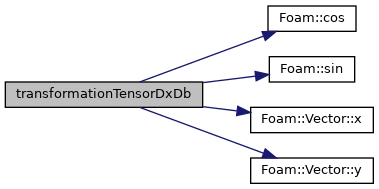

Here is the call graph for this function:

◆ updateLocalCoordinateSystem()

void updateLocalCoordinateSystem ( const vectorField & cartesianPoints )

protectedvirtual

Implements NURBS3DVolume.

Definition at line 81 of file NURBS3DVolumeCylindrical.C.

References Foam::atan2(), forAll, Foam::New(), GeometricField::primitiveFieldRef(), R, Foam::sqr(), Foam::sqrt(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), Vector< Cmpt >::z(), and Foam::Zero.

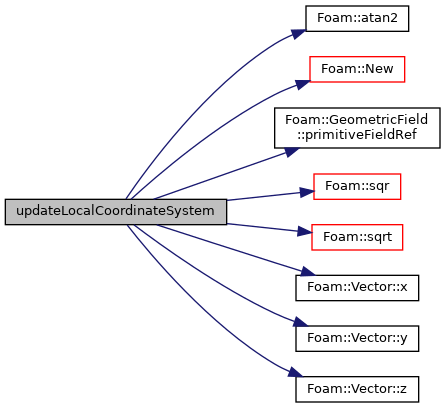

Here is the call graph for this function:

◆ TypeName()

TypeName ( "cylindrical" )

Member Data Documentation

◆ origin_

vector origin_

protected

Definition at line 58 of file NURBS3DVolumeCylindrical.H.

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/parameterization/NURBS/NURBS3DVolume/cylindrical/NURBS3DVolumeCylindrical.H
src/optimisation/adjointOptimisation/adjoint/parameterization/NURBS/NURBS3DVolume/cylindrical/NURBS3DVolumeCylindrical.C
