Templated class to calculate the fluid-particle heat transfer coefficients based on a specified Nusselt-number model. More...

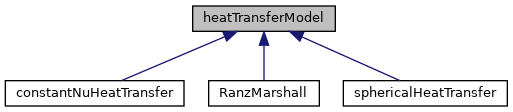

Inheritance diagram for HeatTransferModel:

[legend]

Public Member Functions
	TypeName ("heatTransferModel")

	declareRunTimeSelectionTable (autoPtr, HeatTransferModel, dictionary,(const dictionary &dict, CloudType &owner),(dict, owner))

void	operator= (const HeatTransferModel< CloudType > &)=delete

	HeatTransferModel (CloudType &owner)

	HeatTransferModel (const dictionary &dict, CloudType &owner, const word &type)

	HeatTransferModel (const HeatTransferModel< CloudType > &htm)

virtual autoPtr< HeatTransferModel< CloudType > >	clone () const =0

virtual	~HeatTransferModel ()=default

bool	BirdCorrection () const noexcept

virtual scalar	Nu (const scalar Re, const scalar Pr) const =0

virtual scalar	htc (const scalar dp, const scalar Re, const scalar Pr, const scalar kappa, const scalar NCpW) const

Static Public Member Functions
static autoPtr< HeatTransferModel< CloudType > >	New (const dictionary &dict, CloudType &owner)

Detailed Description

Templated class to calculate the fluid-particle heat transfer coefficients based on a specified Nusselt-number model.

$h = \frac{\mathrm{Nu} \, \kappa}{d_p}$

where

	=	Convective heat transfer coefficient of the flow
$\mathrm{Nu}$	=	Nusselt number
$\kappa$	=	Thermal conductivity of carrier in the film
	=	Particle diameter

Optionally, Bird-Stewart-Lightfoot correction can be applied to correct the heat transfer coefficient for evaporation:

$h_{corr} = h \, \frac{\beta}{ \exp(\beta) + 1 }$

with

$\beta = \frac{N \, C_p \, W}{h}$

where

$\beta$	=	Correction factor
	=	Molar flux
	=	Specific heat capacity
	=	Molecular weight

Reference:

        Bird, R. B., Stewart, W. E., & Lightfoot, E. N. (1960).
        Transport phenomena.
        John Wiley & Sons., New York.
        DOI:10.1002/aic.690070245

Usage

Minimal example by using constant/<CloudProperties>:

subModels
{
    heatTransferModel    <model>;

    <model>Coeffs
    {
        BirdCorrection   true;
    }
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`heatTransferModel`	Type name: <model>	word	yes	-
`<model>Coeffs`	Model properties	dict	cndtnl	-
`BirdCorrection`	Flag to apply Bird-Stewart-Lightfoot's correction to the heat transfer coefficient	bool	cndtnl	-

Options for the <model> entry:

      RanzMarshall   | Ranz-Marshall correlation for Nusselt number
      none           | No active model

Source files

Definition at line 55 of file ThermoCloud.H.

Constructor & Destructor Documentation

◆ HeatTransferModel() [1/3]

HeatTransferModel ( CloudType & owner )

Definition at line 27 of file HeatTransferModel.C.

◆ HeatTransferModel() [2/3]

HeatTransferModel	(	const dictionary &	dict,
		CloudType &	owner,
		const word &	type
	)

Definition at line 36 of file HeatTransferModel.C.

◆ HeatTransferModel() [3/3]

HeatTransferModel ( const HeatTransferModel< CloudType > & htm )

Definition at line 49 of file HeatTransferModel.C.

◆ ~HeatTransferModel()

virtual ~HeatTransferModel ( )

virtualdefault

Member Function Documentation

◆ TypeName()

TypeName ( "heatTransferModel" )

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		HeatTransferModel	,
		dictionary	,
		(const dictionary &dict, CloudType &owner)	,
		(dict, owner)
	)

◆ operator=()

void operator= ( const HeatTransferModel< CloudType > & )

delete

◆ clone()

virtual autoPtr<HeatTransferModel<CloudType> > clone ( ) const

pure virtual

◆ New()

Foam::autoPtr< Foam::HeatTransferModel< CloudType > > New	(	const dictionary &	dict,
		CloudType &	owner
	)

static

Definition at line 29 of file HeatTransferModelNew.C.

◆ BirdCorrection()

bool BirdCorrection ( ) const

inlinenoexcept

Definition at line 253 of file HeatTransferModel.H.

◆ Nu()

virtual scalar Nu	(	const scalar	Re,
		const scalar	Pr
	)		const

pure virtual

Implemented in RanzMarshall< CloudType >, and NoHeatTransfer< CloudType >.

◆ htc()

Foam::scalar htc	(	const scalar	dp,
		const scalar	Re,
		const scalar	Pr,
		const scalar	kappa,
		const scalar	NCpW
	)		const

virtual

Definition at line 62 of file HeatTransferModel.C.

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/clouds/Templates/ThermoCloud/ThermoCloud.H
src/lagrangian/intermediate/submodels/Thermodynamic/HeatTransferModel/HeatTransferModel/HeatTransferModel.H
src/lagrangian/intermediate/submodels/Thermodynamic/HeatTransferModel/HeatTransferModel/HeatTransferModel.C
src/lagrangian/intermediate/submodels/Thermodynamic/HeatTransferModel/HeatTransferModel/HeatTransferModelNew.C
