Hybrid convection scheme of Travin et al. for hybrid RAS/LES calculations. More...

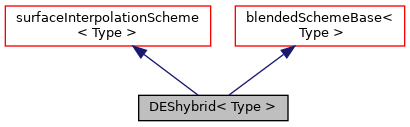

Inheritance diagram for DEShybrid< Type >:

Collaboration diagram for DEShybrid< Type >:

Public Member Functions
	TypeName ("DEShybrid")

	DEShybrid (const fvMesh &mesh, Istream &is)

	DEShybrid (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &is)

virtual tmp< surfaceScalarField >	blendingFactor (const GeometricField< Type, fvPatchField, volMesh > &vf) const

tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &vf) const

tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &vf) const

virtual bool	corrected () const

virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &vf) const

Public Member Functions inherited from surfaceInterpolationScheme< Type >
	TypeName ("surfaceInterpolationScheme")

	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))

	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))

	surfaceInterpolationScheme (const fvMesh &mesh)

virtual	~surfaceInterpolationScheme ()=default

const fvMesh &	mesh () const

virtual tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf) const

tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const tmp< GeometricField< Type, fvPatchField, volMesh >> &) const

tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const tmp< GeometricField< Type, fvPatchField, volMesh >> &) const

Public Member Functions inherited from refCount
constexpr	refCount () noexcept

int	count () const noexcept

bool	unique () const noexcept

void	operator++ () noexcept

void	operator++ (int) noexcept

void	operator-- () noexcept

void	operator-- (int) noexcept

Public Member Functions inherited from blendedSchemeBase< Type >
	blendedSchemeBase ()

virtual	~blendedSchemeBase ()=default

Additional Inherited Members
Static Public Member Functions inherited from surfaceInterpolationScheme< Type >
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)

static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)

static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const tmp< surfaceScalarField > &)

template<class SFType >
static tmp< GeometricField< typename innerProduct< typename SFType::value_type, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)

static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &)

Detailed Description

template<class Type>
class Foam::DEShybrid< Type >

Hybrid convection scheme of Travin et al. for hybrid RAS/LES calculations.

The scheme provides a blend between two convection schemes, based on local properties including the wall distance, velocity gradient and eddy viscosity. The scheme was originally developed for DES calculations to blend a low-dissipative scheme, e.g. linear, in the vorticity-dominated, finely-resolved regions and a numerically more robust, e.g. upwind-biased, convection scheme in irrotational or coarsely-resolved regions.

The routine calculates the blending factor denoted as "sigma" in the literature reference, where 0 <= sigma <= sigmaMax, which is then employed to set the weights:

$weight = (1-sigma) w_1 + sigma w_2$

where

	=	blending factor
	=	scheme 1 weights
	=	scheme 2 weights

First published in:

        A. Travin, M. Shur, M. Strelets, P. Spalart (2000).
        Physical and numerical upgrades in the detached-eddy simulation of
        complex turbulent flows.
        In Proceedings of the 412th Euromech Colloquium on LES and Complex
        Transition and Turbulent Flows, Munich, Germany

Original publication contained a typo for C_H3 constant. Corrected version with minor changes for 2 lower limiters published in:

        P. Spalart, M. Shur, M. Strelets, A. Travin (2012).
        Sensitivity of Landing-Gear Noise Predictions by Large-Eddy
        Simulation to Numerics and Resolution.
        AIAA Paper 2012-1174, 50th AIAA Aerospace Sciences Meeting,
        Nashville / TN, Jan. 2012

Example of the DEShybrid scheme specification using linear within the LES region and linearUpwind within the RAS region:

    divSchemes
    {
        .
        .
        div(phi,U)      Gauss DEShybrid
            linear                    // scheme 1
            linearUpwind grad(U)      // scheme 2
            hmax                      // LES delta name, e.g. 'delta', 'hmax'
            0.65                      // DES coefficient, typically = 0.65
            30                        // Reference velocity scale
            2                         // Reference length scale
            0                         // Minimum sigma limit (0-1)
            1                         // Maximum sigma limit (0-1)
            1.0e-03;                  // Limiter of B function, typically 1e-03
        .
        .
    }

Notes

Scheme 1 should be linear (or other low-dissipative schemes) which will be used in the detached/vortex shedding regions.
Scheme 2 should be an upwind/deferred correction/TVD scheme which will be used in the free-stream/Euler/boundary layer regions.
the scheme is compiled into a separate library, and not available to solvers by default. In order to use the scheme, add the library as a run-time loaded library in the $FOAM\_CASE/system/controlDict dictionary, e.g.:
```
        libs ("libturbulenceModelSchemes.so");
```

Source files

Definition at line 140 of file DEShybrid.H.
