Cone injection. More...

Inheritance diagram for ConeNozzleInjection< CloudType >:

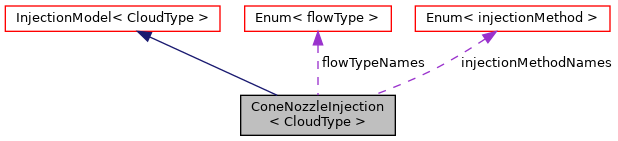

Collaboration diagram for ConeNozzleInjection< CloudType >:

[legend]

Public Types
enum	injectionMethod { imPoint, imDisc }

enum	flowType { ftConstantVelocity, ftPressureDrivenVelocity, ftFlowRateAndDischarge }

Public Types inherited from InjectionModel< CloudType >
enum	parcelBasis { pbNumber, pbMass, pbFixed }

typedef CloudType::parcelType	parcelType

Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType

Public Member Functions
	TypeName ("coneNozzleInjection")

	ConeNozzleInjection (const dictionary &dict, CloudType &owner, const word &modelName)

	ConeNozzleInjection (const ConeNozzleInjection< CloudType > &im)

virtual autoPtr< InjectionModel< CloudType > >	clone () const

virtual	~ConeNozzleInjection ()=default

virtual void	updateMesh ()

scalar	timeEnd () const

virtual label	parcelsToInject (const scalar time0, const scalar time1)

virtual scalar	volumeToInject (const scalar time0, const scalar time1)

virtual void	setPositionAndCell (const label parcelI, const label nParcels, const scalar time, vector &position, label &cellOwner, label &tetFacei, label &tetPti)

virtual void	setProperties (const label parcelI, const label nParcels, const scalar time, typename CloudType::parcelType &parcel)

virtual bool	fullyDescribed () const

virtual bool	validInjection (const label parcelI)

Public Member Functions inherited from InjectionModel< CloudType >
	TypeName ("injectionModel")

	declareRunTimeSelectionTable (autoPtr, InjectionModel, dictionary,(const dictionary &dict, CloudType &owner, const word &modelType),(dict, owner, modelType))

	InjectionModel (CloudType &owner)

	InjectionModel (const dictionary &dict, CloudType &owner, const word &modelName, const word &modelType)

	InjectionModel (const InjectionModel< CloudType > &im)

virtual	~InjectionModel ()=default

scalar	timeStart () const

scalar	volumeTotal () const

scalar	massTotal () const

scalar	massInjected () const

label	injectorID () const

virtual scalar	averageParcelMass ()

label	nInjections () const

label	parcelsAddedTotal () const

template<class TrackCloudType >
void	inject (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td)

template<class TrackCloudType >
void	injectSteadyState (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td, const scalar trackTime)

virtual void	info (Ostream &os)

Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)

	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")

	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)

	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)

virtual	~CloudSubModelBase ()

const CloudType &	owner () const

virtual bool	writeTime () const

virtual fileName	localPath () const

CloudType &	owner ()

virtual void	write (Ostream &os) const

Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)

	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")

	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)

	subModelBase (const subModelBase &smb)

virtual	~subModelBase ()

const word &	modelName () const

const dictionary &	dict () const

const word &	baseName () const

const word &	modelType () const

const dictionary &	coeffDict () const

const dictionary &	properties () const

virtual bool	defaultCoeffs (const bool printMsg) const

virtual bool	active () const

virtual void	cacheFields (const bool store)

template<class Type >
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
void	getBaseProperty (const word &entryName, Type &value) const

template<class Type >
void	setBaseProperty (const word &entryName, const Type &value)

bool	getModelDict (const word &entryName, dictionary &dict) const

template<class Type >
void	getModelProperty (const word &entryName, Type &value) const

template<class Type >
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
void	setModelProperty (const word &entryName, const Type &value)

Static Public Attributes
static const Enum< injectionMethod >	injectionMethodNames

static const Enum< flowType >	flowTypeNames

Additional Inherited Members
Static Public Member Functions inherited from InjectionModel< CloudType >
static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, CloudType &owner)

static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, const word &modelName, const word &modelType, CloudType &owner)

Protected Member Functions inherited from InjectionModel< CloudType >
virtual bool	prepareForNextTimeStep (const scalar time, label &newParcels, scalar &newVolumeFraction)

virtual bool	findCellAtPosition (label &celli, label &tetFacei, label &tetPti, vector &position, bool errorOnNotFound=true)

virtual scalar	setNumberOfParticles (const label parcels, const scalar volumeFraction, const scalar diameter, const scalar rho)

virtual void	postInjectCheck (const label parcelsAdded, const scalar massAdded)

Protected Member Functions inherited from subModelBase
bool	inLine () const

Protected Attributes inherited from InjectionModel< CloudType >
scalar	SOI_

scalar	volumeTotal_

scalar	massTotal_

autoPtr< Function1< scalar > >	massFlowRate_

scalar	massInjected_

label	nInjections_

label	parcelsAddedTotal_

parcelBasis	parcelBasis_

scalar	nParticleFixed_

scalar	time0_

scalar	timeStep0_

scalar	minParticlesPerParcel_

scalar	delayedVolume_

label	injectorID_

bool	ignoreOutOfBounds_

Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_

Protected Attributes inherited from subModelBase
const word	modelName_

dictionary &	properties_

const dictionary	dict_

const word	baseName_

const word	modelType_

const dictionary	coeffDict_

Detailed Description

template<class CloudType>
class Foam::ConeNozzleInjection< CloudType >

Cone injection.

User specifies:

time of start of injection
injector position
direction (along injection axis)
parcel flow rate
inner and outer half-cone angles

Properties:

Parcel diameters obtained by size distribution model.

Parcel velocity is calculated as:

Constant velocity:
```
      U = \<specified by user\>
```
Pressure driven velocity:
```
      U = sqrt(2*(Pinj - Pamb)/rho)
```
Flow rate and discharge:
```
      U = V_dot/(A*Cd)
```

Source files

Definition at line 85 of file ConeNozzleInjection.H.

Member Enumeration Documentation

◆ injectionMethod

enum injectionMethod

strong

Enumerator
imPoint
imDisc

Definition at line 92 of file ConeNozzleInjection.H.

◆ flowType

enum flowType

strong

Enumerator
ftConstantVelocity
ftPressureDrivenVelocity
ftFlowRateAndDischarge

Definition at line 101 of file ConeNozzleInjection.H.

Constructor & Destructor Documentation

◆ ConeNozzleInjection() [1/2]

ConeNozzleInjection	(	const dictionary &	dict,
		CloudType &	owner,
		const word &	modelName
	)

Definition at line 160 of file ConeNozzleInjection.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, and TimeState::userTimeToTime().

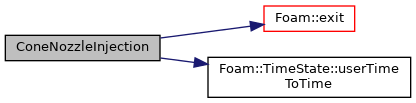

Here is the call graph for this function:

◆ ConeNozzleInjection() [2/2]

ConeNozzleInjection ( const ConeNozzleInjection< CloudType > & im )

Definition at line 256 of file ConeNozzleInjection.C.

◆ ~ConeNozzleInjection()

virtual ~ConeNozzleInjection ( )

virtualdefault

Member Function Documentation

◆ TypeName()

TypeName ( "coneNozzleInjection" )

◆ clone()

virtual autoPtr<InjectionModel<CloudType> > clone ( ) const

inlinevirtual

Implements InjectionModel< CloudType >.

Definition at line 220 of file ConeNozzleInjection.H.

◆ updateMesh()

void updateMesh

virtual

Reimplemented from InjectionModel< CloudType >.

Definition at line 290 of file ConeNozzleInjection.C.

◆ timeEnd()

Foam::scalar timeEnd

virtual

Implements InjectionModel< CloudType >.

Definition at line 309 of file ConeNozzleInjection.C.

◆ parcelsToInject()

Foam::label parcelsToInject	(	const scalar	time0,
		const scalar	time1
	)

virtual

Implements InjectionModel< CloudType >.

Definition at line 317 of file ConeNozzleInjection.C.

◆ volumeToInject()

Foam::scalar volumeToInject	(	const scalar	time0,
		const scalar	time1
	)

virtual

Implements InjectionModel< CloudType >.

Definition at line 333 of file ConeNozzleInjection.C.

◆ setPositionAndCell()

void setPositionAndCell	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		vector &	position,
		label &	cellOwner,
		label &	tetFacei,
		label &	tetPti
	)

virtual

Implements InjectionModel< CloudType >.

Definition at line 349 of file ConeNozzleInjection.C.

References beta(), Foam::cos(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::mag(), rndGen, DSMCCloud< ParcelType >::rndGen(), Foam::sin(), Foam::constant::mathematical::twoPi(), and Foam::Zero.

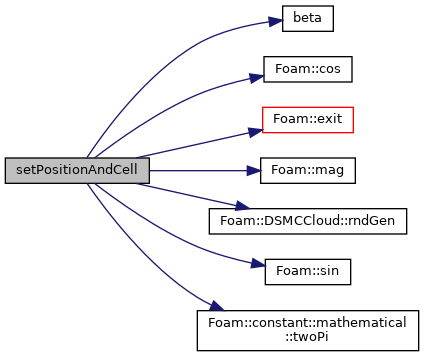

Here is the call graph for this function:

◆ setProperties()

void setProperties	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		typename CloudType::parcelType &	parcel
	)

virtual

Implements InjectionModel< CloudType >.

Definition at line 441 of file ConeNozzleInjection.C.

References Foam::constant::atomic::alpha, Foam::cos(), Foam::degToRad(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Vector< Cmpt >::normalise(), Foam::constant::mathematical::pi(), rho, rndGen, DSMCCloud< ParcelType >::rndGen(), Foam::sin(), and Foam::sqrt().

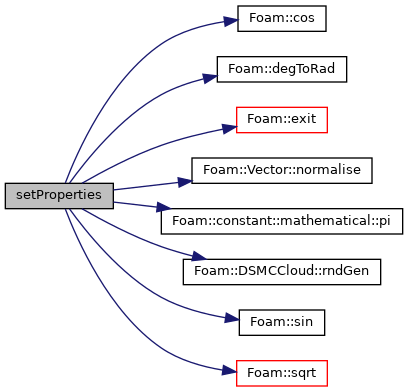

Here is the call graph for this function:

◆ fullyDescribed()

bool fullyDescribed

virtual

Implements InjectionModel< CloudType >.

Definition at line 507 of file ConeNozzleInjection.C.

◆ validInjection()

bool validInjection ( const label parcelI )

virtual

Implements InjectionModel< CloudType >.

Definition at line 514 of file ConeNozzleInjection.C.

Member Data Documentation

◆ injectionMethodNames

const Foam::Enum< typename Foam::ConeNozzleInjection< CloudType >::injectionMethod > injectionMethodNames

static

Definition at line 98 of file ConeNozzleInjection.H.

◆ flowTypeNames

const Foam::Enum< typename Foam::ConeNozzleInjection< CloudType >::flowType > flowTypeNames

static

Definition at line 108 of file ConeNozzleInjection.H.

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/ConeNozzleInjection/ConeNozzleInjection.H
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/ConeNozzleInjection/ConeNozzleInjection.C
