Base class for selecting the adjoint transpose convection model. Inherits from regIOobject to add lookup functionality. More...

Inheritance diagram for ATCModel:

[legend]

Collaboration diagram for ATCModel:

[legend]

Public Member Functions
	TypeName ("ATCModel")

	declareRunTimeSelectionTable (autoPtr, ATCModel, dictionary,(const fvMesh &mesh, const incompressibleVars &primalVars, const incompressibleAdjointVars &adjointVars, const dictionary &dict),(mesh, primalVars, adjointVars, dict))

	ATCModel (const fvMesh &mesh, const incompressibleVars &primalVars, const incompressibleAdjointVars &adjointVars, const dictionary &dict)

virtual	~ATCModel ()=default

virtual void	addATC (fvVectorMatrix &UaEqn)=0

const labelList &	getZeroATCcells ()

scalar	getExtraConvectionMultiplier ()

scalar	getExtraDiffusionMultiplier ()

const volScalarField &	getLimiter () const

template<class Type >
void	smoothFieldBasedOnCells (GeometricField< Type, fvPatchField, volMesh > &vf, const labelList &cells)

virtual tmp< volTensorField >	getFISensitivityTerm () const =0

virtual bool	writeData (Ostream &) const

Public Member Functions inherited from regIOobject
	TypeName ("regIOobject")

	regIOobject (const IOobject &io, const bool isTimeObject=false)

	regIOobject (const regIOobject &rio)

	regIOobject (const regIOobject &rio, bool registerCopy)

	regIOobject (const word &newName, const regIOobject &, bool registerCopy)

	regIOobject (const IOobject &io, const regIOobject &rio)

virtual	~regIOobject ()

bool	checkIn ()

bool	checkOut ()

virtual void	addWatch ()

bool	ownedByRegistry () const

bool	store ()

void	release (const bool unregister=false)

label	eventNo () const

label &	eventNo ()

bool	upToDate (const regIOobject &) const

bool	upToDate (const regIOobject &, const regIOobject &) const

bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const

bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const

void	setUpToDate ()

virtual void	rename (const word &newName)

const dictionary *	findMetaData () const noexcept

dictionary &	getMetaData () noexcept

void	removeMetaData ()

virtual void	updateMetaData ()

virtual fileName	filePath () const

bool	headerOk ()

Istream &	readStream (const word &, const bool valid=true)

void	close ()

virtual bool	readData (Istream &)

virtual bool	read ()

virtual label	addWatch (const fileName &)

const labelList &	watchIndices () const

labelList &	watchIndices ()

virtual bool	modified () const

virtual bool	readIfModified ()

virtual bool	writeObject (IOstreamOption streamOpt, const bool valid) const

virtual bool	write (const bool valid=true) const

virtual bool	global () const

void	operator= (const IOobject &io)

virtual bool	writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType comp, const bool valid) const

Public Member Functions inherited from IOobject
	TypeName ("IOobject")

	IOobject (const IOobject &)=default

virtual	~IOobject ()=default

	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true, bool globalObject=false)

	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true, bool globalObject=false)

	IOobject (const fileName &path, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true, bool globalObject=false)

	IOobject (const IOobject &io, const objectRegistry &registry)

	IOobject (const IOobject &io, const word &name)

	IOobject (const IOobject &io, readOption, writeOption)

autoPtr< IOobject >	clone () const

autoPtr< IOobject >	clone (const objectRegistry &registry) const

const objectRegistry &	db () const noexcept

const Time &	time () const

const word &	name () const noexcept

const word &	headerClassName () const noexcept

word &	headerClassName () noexcept

const string &	note () const noexcept

string &	note () noexcept

bool	registerObject () const noexcept

bool	registerObject (bool on) noexcept

bool	globalObject () const noexcept

bool	globalObject (bool on) noexcept

unsigned	labelByteSize () const noexcept

unsigned	scalarByteSize () const noexcept

bool	isHeaderClassName (const word &clsName) const

template<class Type >
bool	isHeaderClassName () const

readOption	readOpt () const noexcept

readOption	readOpt (readOption opt) noexcept

writeOption	writeOpt () const noexcept

writeOption	writeOpt (writeOption opt) noexcept

word	group () const

word	member () const

const fileName &	rootPath () const

const fileName &	caseName () const

const fileName &	instance () const noexcept

fileName &	instance () noexcept

const fileName &	local () const noexcept

fileName	path () const

fileName	path (const word &instance, const fileName &local=fileName::null) const

fileName	objectPath () const

fileName	objectRelPath () const

fileName	localFilePath (const word &typeName, const bool search=true) const

fileName	globalFilePath (const word &typeName, const bool search=true) const

IOstreamOption	parseHeader (const dictionary &headerDict)

bool	readHeader (Istream &is)

bool	readHeader (dictionary &headerDict, Istream &is)

template<class Type >
bool	typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true)

template<class Type >
void	warnNoRereading () const

bool	writeHeader (Ostream &os) const

bool	writeHeader (Ostream &os, const word &objectType) const

void	writeHeader (dictionary &dict, IOstreamOption streamOpt) const

void	writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const

bool	good () const noexcept

bool	bad () const noexcept

InfoProxy< IOobject >	info () const

void	operator= (const IOobject &io)

readOption &	readOpt () noexcept

writeOption &	writeOpt () noexcept

bool &	registerObject () noexcept

bool &	globalObject () noexcept

template<>
bool	isHeaderClassName () const

template<class StringType >
Foam::word	groupName (StringType base, const word &group)

Static Public Member Functions
static autoPtr< ATCModel >	New (const fvMesh &mesh, const incompressibleVars &primalVars, const incompressibleAdjointVars &adjointVars, const dictionary &dict)

static void	computeLimiter (volScalarField &limiter, const labelList &smoothCells, const label nSmooth)

static tmp< volScalarField >	createLimiter (const fvMesh &mesh, const dictionary &dict)

Static Public Member Functions inherited from regIOobject
template<class Type >
static Type &	store (Type *p)

template<class Type >
static Type &	store (autoPtr< Type > &ptr)

template<class Type >
static Type &	store (autoPtr< Type > &&ptr)

template<class Type >
static Type &	store (refPtr< Type > &ptr)

template<class Type >
static Type &	store (refPtr< Type > &&ptr)

template<class Type >
static Type &	store (tmp< Type > &ptr)

template<class Type >
static Type &	store (tmp< Type > &&ptr)

Static Public Member Functions inherited from IOobject
static bool	bannerEnabled () noexcept

static bool	bannerEnabled (bool on) noexcept

static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)

template<class StringType >
static word	groupName (StringType base, const word &group)

static word	group (const word &name)

static word	member (const word &name)

static word	scopedName (const std::string &scope, const word &name)

static IOobject	selectIO (const IOobject &io, const fileName &altFile, const word &ioName="")

static Ostream &	writeBanner (Ostream &os, const bool noSyntaxHint=false)

static Ostream &	writeDivider (Ostream &os)

static Ostream &	writeEndDivider (Ostream &os)

Protected Member Functions
void	computeLimiter ()

void	smoothATC ()

Protected Member Functions inherited from regIOobject
bool	readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName)

Protected Member Functions inherited from IOobject
void	setBad (const string &s)

Protected Attributes
const fvMesh &	mesh_

const incompressibleVars &	primalVars_

const incompressibleAdjointVars &	adjointVars_

const dictionary &	dict_

const scalar	extraConvection_

const scalar	extraDiffusion_

const label	nSmooth_

const bool	reconstructGradients_

word	adjointSolverName_

autoPtr< zeroATCcells >	zeroATCcells_

volScalarField	ATClimiter_

volVectorField	ATC_

Additional Inherited Members
Public Types inherited from IOobject
enum	objectState : char { GOOD, BAD }

enum	readOption : char { MUST_READ, MUST_READ_IF_MODIFIED, READ_IF_PRESENT, NO_READ }

enum	writeOption : char { AUTO_WRITE = 0, NO_WRITE = 1 }

enum	fileCheckTypes : char { timeStamp, timeStampMaster, inotify, inotifyMaster }

Static Public Attributes inherited from IOobject
static const Enum< fileCheckTypes >	fileCheckTypesNames

static char	scopeSeparator

static fileCheckTypes	fileModificationChecking

static float	fileModificationSkew

static int	maxFileModificationPolls

Static Protected Member Functions inherited from IOobject
static void	writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr)

static void	writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr)

Static Protected Attributes inherited from regIOobject
static bool	masterOnlyReading = false

Detailed Description

Base class for selecting the adjoint transpose convection model. Inherits from regIOobject to add lookup functionality.

Source files

Definition at line 56 of file ATCModel.H.

Constructor & Destructor Documentation

◆ ATCModel()

ATCModel	(	const fvMesh &	mesh,
		const incompressibleVars &	primalVars,
		const incompressibleAdjointVars &	adjointVars,
		const dictionary &	dict
	)

Definition at line 55 of file ATCModel.C.

◆ ~ATCModel()

virtual ~ATCModel ( )

virtualdefault

Member Function Documentation

◆ computeLimiter() [1/2]

void computeLimiter ( )

protected

Definition at line 38 of file ATCModel.C.

References ATCModel::ATClimiter_, ATCModel::nSmooth_, and ATCModel::zeroATCcells_.

◆ smoothATC()

void smoothATC ( )

protected

Definition at line 44 of file ATCModel.C.

References ATCModel::ATC_, ATCModel::ATClimiter_, DebugInfo, Foam::endl(), and Foam::gMax().

Referenced by ATCstandard::addATC(), and ATCUaGradU::addATC().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "ATCModel" )

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		ATCModel	,
		dictionary	,
		(const fvMesh &mesh, const incompressibleVars &primalVars, const incompressibleAdjointVars &adjointVars, const dictionary &dict)	,
		(mesh, primalVars, adjointVars, dict)
	)

◆ New()

autoPtr< ATCModel > New	(	const fvMesh &	mesh,
		const incompressibleVars &	primalVars,
		const incompressibleAdjointVars &	adjointVars,
		const dictionary &	dict
	)

static

Definition at line 122 of file ATCModel.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, dictionary::get(), Foam::Info, and mesh.

Referenced by adjointSimple::adjointSimple().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addATC()

virtual void addATC ( fvVectorMatrix & UaEqn )

pure virtual

Implemented in cancelATC, ATCstandard, and ATCUaGradU.

◆ getZeroATCcells()

const labelList & getZeroATCcells ( )

Definition at line 155 of file ATCModel.C.

References ATCModel::zeroATCcells_.

◆ getExtraConvectionMultiplier()

scalar getExtraConvectionMultiplier ( )

Definition at line 161 of file ATCModel.C.

References ATCModel::extraConvection_.

◆ getExtraDiffusionMultiplier()

scalar getExtraDiffusionMultiplier ( )

Definition at line 167 of file ATCModel.C.

References ATCModel::extraDiffusion_.

◆ getLimiter()

const volScalarField & getLimiter ( ) const

Definition at line 173 of file ATCModel.C.

References ATCModel::ATClimiter_.

Referenced by ATCstandard::getFISensitivityTerm().

Here is the caller graph for this function:

◆ computeLimiter() [2/2]

void computeLimiter	(	volScalarField &	limiter,
		const labelList &	smoothCells,
		const label	nSmooth
	)

static

Definition at line 180 of file ATCModel.C.

References Foam::fvc::average(), cells, Foam::limiter(), mesh, Foam::fac::scheme(), and Foam::Zero.

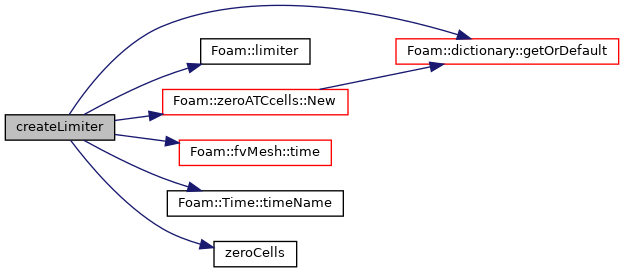

Here is the call graph for this function:

◆ createLimiter()

tmp< volScalarField > createLimiter	(	const fvMesh &	mesh,
		const dictionary &	dict
	)

static

Definition at line 214 of file ATCModel.C.

References dict, Foam::dimless, dictionary::getOrDefault(), Foam::limiter(), mesh, zeroATCcells::New(), IOobject::NO_READ, IOobject::NO_WRITE, fvMesh::time(), Time::timeName(), and zeroCells().

Referenced by adjointSpalartAllmaras::allocateMask().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ smoothFieldBasedOnCells()

void smoothFieldBasedOnCells	(	GeometricField< Type, fvPatchField, volMesh > &	vf,
		const labelList &	cells
	)

Definition at line 30 of file ATCModelTemplates.C.

References cells, Foam::dimless, and Foam::limiter().

Here is the call graph for this function:

◆ getFISensitivityTerm()

virtual tmp<volTensorField> getFISensitivityTerm ( ) const

pure virtual

Implemented in cancelATC, ATCstandard, and ATCUaGradU.

Referenced by adjointSensitivity::computeGradDxDbMultiplier().

Here is the caller graph for this function:

◆ writeData()

bool writeData ( Ostream & ) const

virtual

Implements regIOobject.

Definition at line 248 of file ATCModel.C.

Member Data Documentation

◆ mesh_

const fvMesh& mesh_

protected

Definition at line 75 of file ATCModel.H.

Referenced by ATCstandard::getFISensitivityTerm(), ATCUaGradU::getFISensitivityTerm(), and cancelATC::getFISensitivityTerm().

◆ primalVars_

const incompressibleVars& primalVars_

protected

Definition at line 76 of file ATCModel.H.

Referenced by ATCstandard::addATC(), ATCUaGradU::addATC(), ATCUaGradU::getFISensitivityTerm(), and ATCstandard::getFISensitivityTerm().

◆ adjointVars_

const incompressibleAdjointVars& adjointVars_

protected

Definition at line 77 of file ATCModel.H.

Referenced by ATCstandard::addATC(), ATCUaGradU::addATC(), ATCUaGradU::getFISensitivityTerm(), and ATCstandard::getFISensitivityTerm().

◆ dict_

const dictionary& dict_

protected

Definition at line 80 of file ATCModel.H.

◆ extraConvection_

const scalar extraConvection_

protected

Definition at line 81 of file ATCModel.H.

Referenced by ATCstandard::addATC(), ATCUaGradU::addATC(), and ATCModel::getExtraConvectionMultiplier().

◆ extraDiffusion_

const scalar extraDiffusion_

protected

Definition at line 82 of file ATCModel.H.

Referenced by ATCModel::getExtraDiffusionMultiplier().

◆ nSmooth_

const label nSmooth_

protected

Definition at line 83 of file ATCModel.H.

Referenced by ATCModel::computeLimiter().

◆ reconstructGradients_

const bool reconstructGradients_

protected

Definition at line 84 of file ATCModel.H.

Referenced by ATCstandard::addATC(), and ATCUaGradU::addATC().

◆ adjointSolverName_

word adjointSolverName_

protected

Definition at line 85 of file ATCModel.H.

◆ zeroATCcells_

autoPtr<zeroATCcells> zeroATCcells_

protected

Definition at line 86 of file ATCModel.H.

Referenced by ATCModel::computeLimiter(), and ATCModel::getZeroATCcells().

◆ ATClimiter_

volScalarField ATClimiter_

protected

Definition at line 87 of file ATCModel.H.

Referenced by ATCModel::computeLimiter(), ATCModel::getLimiter(), and ATCModel::smoothATC().

◆ ATC_

volVectorField ATC_

protected

Definition at line 88 of file ATCModel.H.

Referenced by ATCstandard::addATC(), ATCUaGradU::addATC(), and ATCModel::smoothATC().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/ATCModel/ATCModel/ATCModel.H
src/optimisation/adjointOptimisation/adjoint/ATCModel/ATCModel/ATCModel.C
src/optimisation/adjointOptimisation/adjoint/ATCModel/ATCModel/ATCModelTemplates.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ATCModel()

◆ ~ATCModel()

Member Function Documentation

◆ computeLimiter() [1/2]

◆ smoothATC()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ New()

◆ addATC()

◆ getZeroATCcells()

◆ getExtraConvectionMultiplier()

◆ getExtraDiffusionMultiplier()

◆ getLimiter()

◆ computeLimiter() [2/2]

◆ createLimiter()

◆ smoothFieldBasedOnCells()

◆ getFISensitivityTerm()

◆ writeData()

Member Data Documentation

◆ mesh_

◆ primalVars_

◆ adjointVars_

◆ dict_

◆ extraConvection_

◆ extraDiffusion_

◆ nSmooth_

◆ reconstructGradients_

◆ adjointSolverName_

◆ zeroATCcells_

◆ ATClimiter_

◆ ATC_
