Reader for vtk unstructured_grid legacy files. Supports single CELLS, POINTS etc. entry only. More...

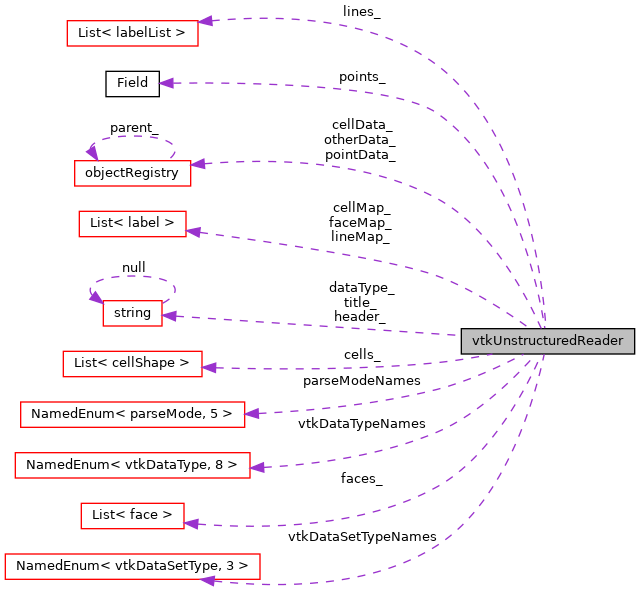

Collaboration diagram for vtkUnstructuredReader:

[legend]

Public Types
enum	vtkDataType { VTK_INT, VTK_UINT, VTK_LONG, VTK_ULONG, VTK_FLOAT, VTK_DOUBLE, VTK_STRING, VTK_ID }
	Enumeration defining the vtk data types. More...

enum	vtkDataSetType { VTK_FIELD, VTK_SCALARS, VTK_VECTORS }
	Enumeration defining the vtk dataset types. More...

enum	parseMode { NOMODE, UNSTRUCTURED_GRID, POLYDATA, CELL_DATA, POINT_DATA }
	Enumeration defining the parse mode - what type of data is being. More...

enum	vtkTypes { VTK_EMPTY_CELL = 0, VTK_VERTEX = 1, VTK_POLY_VERTEX = 2, VTK_LINE = 3, VTK_POLY_LINE = 4, VTK_TRIANGLE = 5, VTK_TRIANGLE_STRIP = 6, VTK_POLYGON = 7, VTK_PIXEL = 8, VTK_QUAD = 9, VTK_TETRA = 10, VTK_VOXEL = 11, VTK_HEXAHEDRON = 12, VTK_WEDGE = 13, VTK_PYRAMID = 14, VTK_PENTAGONAL_PRISM = 15, VTK_HEXAGONAL_PRISM = 16 }
	Enumeration defining the cell types. More...

Public Member Functions
	ClassName ("vtkUnstructuredReader")
	Runtime type information. More...

	vtkUnstructuredReader (const objectRegistry &obr, ISstream &)
	Construct from Istream, read all. More...

const string	header () const
	Header. More...

const string &	title () const
	Title. More...

const string &	dataType () const
	DataType. More...

const pointField &	points () const
	Points. More...

pointField &	points ()

const cellShapeList &	cells () const
	3D cells. More...

cellShapeList &	cells ()

const labelList &	cellMap () const

const faceList &	faces () const
	2D cells (=faces) More...

faceList &	faces ()

const labelList &	faceMap () const

const labelListList &	lines () const
	1D cells (=open lines) More...

labelListList &	lines ()

const labelList &	lineMap () const

const objectRegistry &	cellData () const
	Cell based fields. More...

objectRegistry &	cellData ()

const objectRegistry &	pointData () const
	Point based fields. More...

objectRegistry &	pointData ()

const objectRegistry &	otherData () const
	Other fields. More...

objectRegistry &	otherData ()

template<class Type >
void	printFieldStats (const objectRegistry &) const
	Debug: print contents of objectRegistry. More...

Static Public Attributes
static const NamedEnum< vtkDataType, 8 >	vtkDataTypeNames

static const NamedEnum< vtkDataSetType, 3 >	vtkDataSetTypeNames

static const NamedEnum< parseMode, 5 >	parseModeNames

Private Member Functions
template<class T >
void	readBlock (Istream &inFile, const label n, List< T > &lst) const

void	warnUnhandledType (Istream &inFile, const label type, labelHashSet &warningGiven) const

void	extractCells (Istream &inFile, const labelList &cellTypes, const labelList &cellVertData)

void	readField (ISstream &inFile, objectRegistry &obj, const word &arrayName, const word &dataType, const label size) const

wordList	readFieldArray (ISstream &inFile, objectRegistry &obj, const label wantedSize) const

objectRegistry &	selectRegistry (const parseMode readMode)

void	read (ISstream &inFile)

void	operator= (const vtkUnstructuredReader &)
	Dissallow assignment. More...

Private Attributes
string	header_
	Header. More...

string	title_
	Title. More...

string	dataType_
	DataType. More...

pointField	points_
	Points. More...

cellShapeList	cells_
	3D cells. More...

labelList	cellMap_
	Map from cells back to original ID. More...

faceList	faces_
	2D cells (=faces) More...

labelList	faceMap_
	Map from faces back to original ID. More...

labelListList	lines_
	1D cells (=edges) More...

labelList	lineMap_

objectRegistry	cellData_
	Cell based fields. More...

objectRegistry	pointData_
	Point based fields. More...

objectRegistry	otherData_
	Other fields. More...

Detailed Description

Reader for vtk unstructured_grid legacy files. Supports single CELLS, POINTS etc. entry only.

- all integer types (int, unsigned_int, long etc.) become Foam::label

all real types (float, double) become Foam::scalar
POINTS becomes OpenFOAM points
CELLS gets split into OpenFOAM
- cells
- faces
- lines
CELL_DATA or POINT_DATA gets stored on the corresponding objectRegistry in original vtk numbering order so use e.g. faceMap() to go from entry in faces() back to vtk numbering.

Source files

Definition at line 63 of file vtkUnstructuredReader.H.

Member Enumeration Documentation

◆ vtkDataType

enum vtkDataType

Enumeration defining the vtk data types.

Enumerator
VTK_INT
VTK_UINT
VTK_LONG
VTK_ULONG
VTK_FLOAT
VTK_DOUBLE
VTK_STRING
VTK_ID

Definition at line 70 of file vtkUnstructuredReader.H.

◆ vtkDataSetType

enum vtkDataSetType

Enumeration defining the vtk dataset types.

Enumerator
VTK_FIELD
VTK_SCALARS
VTK_VECTORS

Definition at line 86 of file vtkUnstructuredReader.H.

◆ parseMode

enum parseMode

Enumeration defining the parse mode - what type of data is being.

read

Enumerator
NOMODE
UNSTRUCTURED_GRID
POLYDATA
CELL_DATA
POINT_DATA

Definition at line 98 of file vtkUnstructuredReader.H.

◆ vtkTypes

enum vtkTypes

Enumeration defining the cell types.

Enumerator
VTK_EMPTY_CELL
VTK_VERTEX
VTK_POLY_VERTEX
VTK_LINE
VTK_POLY_LINE
VTK_TRIANGLE
VTK_TRIANGLE_STRIP
VTK_POLYGON
VTK_PIXEL
VTK_QUAD
VTK_TETRA
VTK_VOXEL
VTK_HEXAHEDRON
VTK_WEDGE
VTK_PYRAMID
VTK_PENTAGONAL_PRISM
VTK_HEXAGONAL_PRISM

Definition at line 111 of file vtkUnstructuredReader.H.

Constructor & Destructor Documentation

◆ vtkUnstructuredReader()

vtkUnstructuredReader	(	const objectRegistry &	obr,
		ISstream &	inFile
	)

Construct from Istream, read all.

Definition at line 538 of file vtkUnstructuredReader.C.

References Foam::read().

Here is the call graph for this function:

Member Function Documentation

◆ readBlock()

void readBlock	(	Istream &	inFile,
		const label	n,
		List< T > &	lst
	)		const

private

Definition at line 37 of file vtkUnstructuredReaderTemplates.C.

References forAll, n, and List::setSize().

Referenced by vtkUnstructuredReader::read().

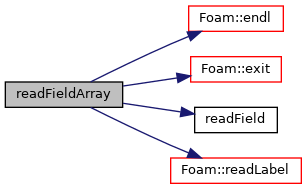

Here is the call graph for this function:

Here is the caller graph for this function:

◆ warnUnhandledType()

void warnUnhandledType	(	Istream &	inFile,
		const label	type,
		labelHashSet &	warningGiven
	)		const

private

Definition at line 86 of file vtkUnstructuredReader.C.

References Foam::endl(), HashSet< Key, Hash >::insert(), IOWarningInFunction, and Foam::type().

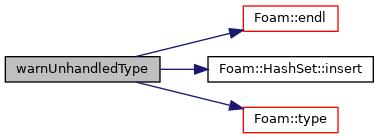

Here is the call graph for this function:

◆ extractCells()

void extractCells	(	Istream &	inFile,
		const labelList &	cellTypes,
		const labelList &	cellVertData
	)

private

Definition at line 102 of file vtkUnstructuredReader.C.

References Foam::endl(), Foam::exit(), f(), Foam::FatalIOError, FatalIOErrorInFunction, forAll, Foam::hex(), Foam::Info, lookup(), and List::size().

Referenced by vtkUnstructuredReader::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readField()

void readField	(	ISstream &	inFile,
		objectRegistry &	obj,
		const word &	arrayName,
		const word &	dataType,
		const label	size
	)		const

private

Definition at line 361 of file vtkUnstructuredReader.C.

References Foam::endl(), forAll, ISstream::getLine(), Foam::Info, and IOWarningInFunction.

Referenced by vtkUnstructuredReader::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFieldArray()

Foam::wordList readFieldArray	(	ISstream &	inFile,
		objectRegistry &	obj,
		const label	wantedSize
	)		const

private

Definition at line 463 of file vtkUnstructuredReader.C.

References Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, fields, Foam::Info, Foam::Pout, readField(), and Foam::readLabel().

Referenced by vtkUnstructuredReader::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ selectRegistry()

Foam::objectRegistry & selectRegistry ( const parseMode readMode )

private

Definition at line 516 of file vtkUnstructuredReader.C.

Referenced by vtkUnstructuredReader::read().

Here is the caller graph for this function:

◆ read()

void read ( ISstream & inFile )

private

3);

Definition at line 551 of file vtkUnstructuredReader.C.

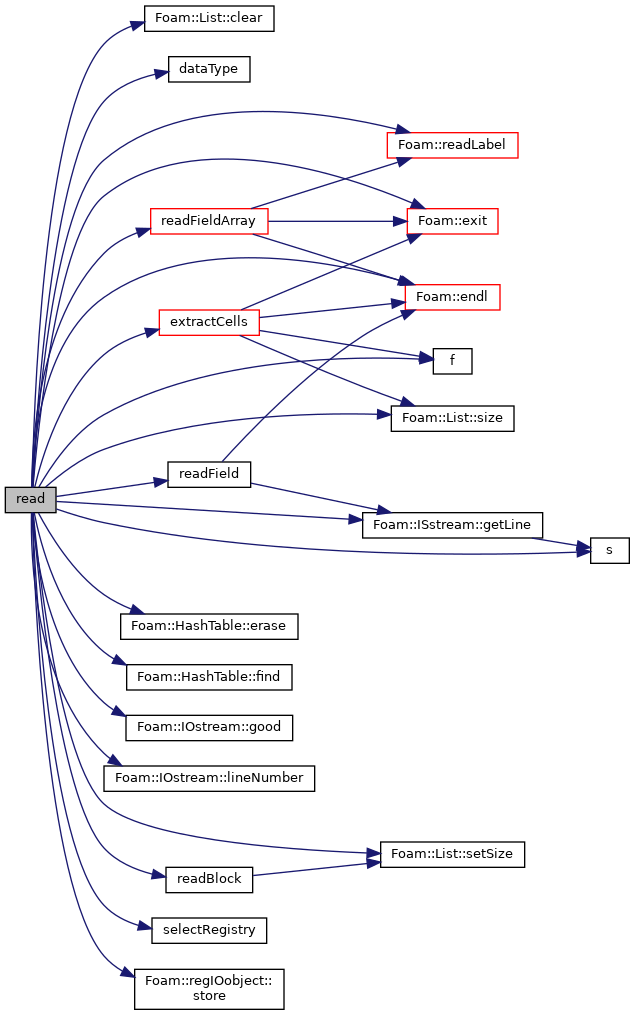

Here is the call graph for this function:

◆ operator=()

void operator= ( const vtkUnstructuredReader & )

private

Dissallow assignment.

◆ ClassName()

ClassName ( "vtkUnstructuredReader" )

Runtime type information.

◆ header()

const string header ( ) const

inline

Header.

Definition at line 242 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::header_.

◆ title()

const string& title ( ) const

inline

Title.

Definition at line 248 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::title_.

◆ dataType()

const string& dataType ( ) const

inline

DataType.

Definition at line 254 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::dataType_.

Referenced by vtkUnstructuredReader::read().

Here is the caller graph for this function:

◆ points() [1/2]

const pointField& points ( ) const

inline

Points.

Definition at line 261 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::points_.

Referenced by VTKsurfaceFormat< Face >::read(), and VTKedgeFormat::read().

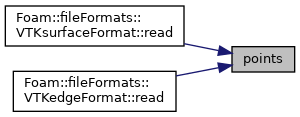

Here is the caller graph for this function:

◆ points() [2/2]

pointField& points ( )

inline

Definition at line 266 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::points_.

◆ cells() [1/2]

const cellShapeList& cells ( ) const

inline

3D cells.

Definition at line 272 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::cells_.

◆ cells() [2/2]

cellShapeList& cells ( )

inline

Definition at line 277 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::cells_.

◆ cellMap()

const labelList& cellMap ( ) const

inline

Definition at line 282 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::cellMap_.

◆ faces() [1/2]

const faceList& faces ( ) const

inline

2D cells (=faces)

Definition at line 288 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::faces_.

Referenced by VTKsurfaceFormat< Face >::read().

Here is the caller graph for this function:

◆ faces() [2/2]

faceList& faces ( )

inline

Definition at line 293 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::faces_.

◆ faceMap()

const labelList& faceMap ( ) const

inline

Definition at line 298 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::faceMap_.

◆ lines() [1/2]

const labelListList& lines ( ) const

inline

1D cells (=open lines)

Definition at line 304 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::lines_.

Referenced by VTKedgeFormat::read().

Here is the caller graph for this function:

◆ lines() [2/2]

labelListList& lines ( )

inline

Definition at line 309 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::lines_.

◆ lineMap()

const labelList& lineMap ( ) const

inline

Definition at line 314 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::lineMap_.

◆ cellData() [1/2]

const objectRegistry& cellData ( ) const

inline

Cell based fields.

Definition at line 320 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::cellData_.

Referenced by VTKsurfaceFormat< Face >::read().

Here is the caller graph for this function:

◆ cellData() [2/2]

objectRegistry& cellData ( )

inline

Definition at line 325 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::cellData_.

◆ pointData() [1/2]

const objectRegistry& pointData ( ) const

inline

Point based fields.

Definition at line 331 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::pointData_.

◆ pointData() [2/2]

objectRegistry& pointData ( )

inline

Definition at line 336 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::pointData_.

◆ otherData() [1/2]

const objectRegistry& otherData ( ) const

inline

Other fields.

Definition at line 342 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::otherData_.

◆ otherData() [2/2]

objectRegistry& otherData ( )

inline

Definition at line 347 of file vtkUnstructuredReader.H.

References vtkUnstructuredReader::otherData_.

◆ printFieldStats()

void printFieldStats ( const objectRegistry & obj ) const

Debug: print contents of objectRegistry.

Definition at line 53 of file vtkUnstructuredReaderTemplates.C.

References Foam::endl(), fieldNames, forAll, Foam::Info, objectRegistry::lookupObject(), objectRegistry::names(), Foam::nl, and List::size().

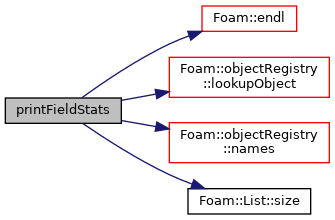

Here is the call graph for this function:

Field Documentation

◆ vtkDataTypeNames

const NamedEnum< vtkUnstructuredReader::vtkDataType, 8 > vtkDataTypeNames

static

Definition at line 82 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::read().

◆ vtkDataSetTypeNames

const NamedEnum< vtkUnstructuredReader::vtkDataSetType, 3 > vtkDataSetTypeNames

static

Definition at line 93 of file vtkUnstructuredReader.H.

◆ parseModeNames

const NamedEnum< vtkUnstructuredReader::parseMode, 5 > parseModeNames

static

Definition at line 107 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::read().

◆ header_

string header_

private

Header.

Definition at line 136 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::header(), and vtkUnstructuredReader::read().

◆ title_

string title_

private

Title.

Definition at line 139 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::read(), and vtkUnstructuredReader::title().

◆ dataType_

string dataType_

private

DataType.

Definition at line 142 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::dataType(), and vtkUnstructuredReader::read().

◆ points_

pointField points_

private

Points.

Definition at line 148 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::points(), and vtkUnstructuredReader::read().

◆ cells_

cellShapeList cells_

private

3D cells.

Definition at line 151 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::cells(), and vtkUnstructuredReader::read().

◆ cellMap_

labelList cellMap_

private

Map from cells back to original ID.

Definition at line 154 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::cellMap().

◆ faces_

faceList faces_

private

2D cells (=faces)

Definition at line 157 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::faces(), and vtkUnstructuredReader::read().

◆ faceMap_

labelList faceMap_

private

Map from faces back to original ID.

Definition at line 160 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::faceMap(), and vtkUnstructuredReader::read().

◆ lines_

labelListList lines_

private

1D cells (=edges)

Definition at line 163 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::lines(), and vtkUnstructuredReader::read().

◆ lineMap_

labelList lineMap_

private

Definition at line 165 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::lineMap(), and vtkUnstructuredReader::read().

◆ cellData_

objectRegistry cellData_

private

Cell based fields.

Definition at line 171 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::cellData(), and vtkUnstructuredReader::read().

◆ pointData_

objectRegistry pointData_

private

Point based fields.

Definition at line 174 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::pointData(), and vtkUnstructuredReader::read().

◆ otherData_

objectRegistry otherData_

private

Other fields.

Definition at line 177 of file vtkUnstructuredReader.H.

Referenced by vtkUnstructuredReader::otherData(), and vtkUnstructuredReader::read().

The documentation for this class was generated from the following files:

src/fileFormats/vtk/vtkUnstructuredReader.H
src/fileFormats/vtk/vtkUnstructuredReader.C
src/fileFormats/vtk/vtkUnstructuredReaderTemplates.C

Public Types

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ vtkDataType

◆ vtkDataSetType

◆ parseMode

◆ vtkTypes

Constructor & Destructor Documentation

◆ vtkUnstructuredReader()

Member Function Documentation

◆ readBlock()

◆ warnUnhandledType()

◆ extractCells()

◆ readField()

◆ readFieldArray()

◆ selectRegistry()

◆ read()

◆ operator=()

◆ ClassName()

◆ header()

◆ title()

◆ dataType()

◆ points() [1/2]

◆ points() [2/2]

◆ cells() [1/2]

◆ cells() [2/2]

◆ cellMap()

◆ faces() [1/2]

◆ faces() [2/2]

◆ faceMap()

◆ lines() [1/2]

◆ lines() [2/2]

◆ lineMap()

◆ cellData() [1/2]

◆ cellData() [2/2]

◆ pointData() [1/2]

◆ pointData() [2/2]

◆ otherData() [1/2]

◆ otherData() [2/2]

◆ printFieldStats()

Field Documentation

◆ vtkDataTypeNames

◆ vtkDataSetTypeNames

◆ parseModeNames

◆ header_

◆ title_

◆ dataType_

◆ points_

◆ cells_

◆ cellMap_

◆ faces_

◆ faceMap_

◆ lines_

◆ lineMap_

◆ cellData_

◆ pointData_

◆ otherData_
