Provides a reader interface for OpenFOAM to VTK interaction. More...

Collaboration diagram for vtkPV3Foam:

[legend]

Data Structures
class	arrayRange
	Bookkeeping for GUI checklists and the multi-block organization. More...

class	polyDecomp
	Bookkeeping for polyhedral cell decomposition. More...

Public Member Functions
	ClassName ("vtkPV3Foam")
	Static data members. More...

	vtkPV3Foam (const char const FileName, vtkPV3FoamReader reader)
	Construct from components. More...

	~vtkPV3Foam ()
	Destructor. More...

void	updateInfo ()
	Update. More...

void	Update (vtkMultiBlockDataSet output, vtkMultiBlockDataSet lagrangianOutput)

void	CleanUp ()
	Clean any storage. More...

double *	findTimes (int &nTimeSteps)
	Allocate and return a list of selected times. More...

void	renderPatchNames (vtkRenderer *, const bool show)
	Add/remove patch names to/from the view. More...

int	setTime (int count, const double requestTimes[])
	Set the runTime to the first plausible request time,. More...

int	timeIndex () const
	The current time index. More...

void	PrintSelf (ostream &, vtkIndent) const
	Debug information. More...

template<class Type >
Foam::label	addToSelection (vtkDataArraySelection *select, const IOobjectList &objectLst, const string &suffix)

Static Public Member Functions
static void	printMemory ()
	Simple memory used debugging information. More...

Private Member Functions
void	resetCounters ()
	Reset data counters. More...

void	updateMeshPartsStatus ()
	Update the mesh parts selected in the GUI. More...

void	updateInfoInternalMesh (vtkDataArraySelection *)
	Internal mesh info. More...

void	updateInfoLagrangian (vtkDataArraySelection *)
	Lagrangian info. More...

void	updateInfoPatches (vtkDataArraySelection *, stringList &)
	Patch info. More...

void	updateInfoSets (vtkDataArraySelection *)
	Set info. More...

void	updateInfoZones (vtkDataArraySelection *)
	Zone info. More...

wordList	getZoneNames (const word &zoneType) const
	Get non-empty zone names for zoneType from file. More...

template<class ZoneType >
wordList	getZoneNames (const ZoneMesh< ZoneType, polyMesh > &) const
	Get non-empty zone names from mesh info. More...

template<class Type >
label	addToSelection (vtkDataArraySelection *, const IOobjectList &, const string &suffix=string::null)
	Add objects of Type to paraview array selection. More...

template<template< class > class patchType, class meshType >
void	updateInfoFields (vtkDataArraySelection *)
	Field info. More...

void	updateInfoLagrangianFields ()
	Lagrangian field info. More...

void	updateFoamMesh ()
	OpenFOAM mesh. More...

void	reduceMemory ()
	Reduce memory footprint after conversion. More...

void	updateVolFields (vtkMultiBlockDataSet *)
	Volume fields. More...

void	updatePointFields (vtkMultiBlockDataSet *)
	Point fields. More...

void	updateLagrangianFields (vtkMultiBlockDataSet *)
	Lagrangian fields. More...

void	convertMeshVolume (vtkMultiBlockDataSet *, int &blockNo)
	Volume mesh. More...

void	convertMeshLagrangian (vtkMultiBlockDataSet *, int &blockNo)
	Lagrangian mesh. More...

void	convertMeshPatches (vtkMultiBlockDataSet *, int &blockNo)
	Patch meshes. More...

void	convertMeshCellZones (vtkMultiBlockDataSet *, int &blockNo)
	Cell zone meshes. More...

void	convertMeshFaceZones (vtkMultiBlockDataSet *, int &blockNo)
	Face zone meshes. More...

void	convertMeshPointZones (vtkMultiBlockDataSet *, int &blockNo)
	Point zone meshes. More...

void	convertMeshCellSets (vtkMultiBlockDataSet *, int &blockNo)
	Cell set meshes. More...

void	convertMeshFaceSets (vtkMultiBlockDataSet *, int &blockNo)
	Face set meshes. More...

void	convertMeshPointSets (vtkMultiBlockDataSet *, int &blockNo)
	Point set meshes. More...

vtkUnstructuredGrid *	volumeVTKMesh (const fvMesh &, polyDecomp &)
	Add internal mesh/cell set meshes. More...

vtkPolyData *	lagrangianVTKMesh (const fvMesh &, const word &cloudName)
	Add Lagrangian mesh. More...

template<class PatchType >
vtkPolyData *	patchVTKMesh (const word &name, const PatchType &)
	Add patch mesh. More...

vtkPolyData *	pointZoneVTKMesh (const fvMesh &, const labelList &pointLabels)
	Add point zone. More...

vtkPolyData *	faceSetVTKMesh (const fvMesh &, const faceSet &)
	Add face set mesh. More...

vtkPolyData *	pointSetVTKMesh (const fvMesh &, const pointSet &)
	Add point mesh. More...

void	convertVolFields (vtkMultiBlockDataSet *)
	Convert volume fields. More...

void	convertPointFields (vtkMultiBlockDataSet *)
	Convert point fields. More...

void	convertLagrangianFields (vtkMultiBlockDataSet *)
	Convert Lagrangian fields. More...

template<class GeoField >
label	addObjectsToSelection (vtkDataArraySelection *, const IOobjectList &, const string &suffix=string::null)
	Add the fields in the selected time directory to the selection. More...

template<class Type >
void	convertVolFields (const fvMesh &, const PtrList< PrimitivePatchInterpolation< primitivePatch > > &, const IOobjectList &, const bool interpFields, vtkMultiBlockDataSet *output)
	Volume fields - all types. More...

template<class Type >
void	convertVolFieldBlock (const GeometricField< Type, fvPatchField, volMesh > &, autoPtr< GeometricField< Type, pointPatchField, pointMesh > > &, vtkMultiBlockDataSet *output, const arrayRange &, const List< polyDecomp > &decompLst)
	Volume field - all selected parts. More...

template<class Type >
void	convertVolField (const GeometricField< Type, fvPatchField, volMesh > &, vtkMultiBlockDataSet *output, const arrayRange &, const label datasetNo, const polyDecomp &)
	Volume field. More...

template<class Type >
void	convertPatchField (const word &name, const Field< Type > &, vtkMultiBlockDataSet *output, const arrayRange &, const label datasetNo)
	Patch field. More...

template<class Type >
void	convertFaceField (const GeometricField< Type, fvPatchField, volMesh > &, vtkMultiBlockDataSet *output, const arrayRange &, const label datasetNo, const fvMesh &, const labelList &faceLabels)
	Face set/zone field. More...

template<class Type >
void	convertLagrangianFields (const IOobjectList &, vtkMultiBlockDataSet *output, const label datasetNo)
	Lagrangian fields - all types. More...

template<class Type >
void	convertLagrangianField (const IOField< Type > &, vtkMultiBlockDataSet *output, const arrayRange &, const label datasetNo)
	Lagrangian field. More...

template<class Type >
void	convertPointFields (const fvMesh &, const pointMesh &, const IOobjectList &, vtkMultiBlockDataSet *output)
	Point fields - all types. More...

template<class Type >
void	convertPointFieldBlock (const GeometricField< Type, pointPatchField, pointMesh > &, vtkMultiBlockDataSet *output, const arrayRange &, const List< polyDecomp > &)
	Point field - all selected parts. More...

template<class Type >
void	convertPointField (const GeometricField< Type, pointPatchField, pointMesh > &, const GeometricField< Type, fvPatchField, volMesh > &, vtkMultiBlockDataSet *output, const arrayRange &, const label datasetNo, const polyDecomp &)
	Point fields. More...

template<class Type >
void	convertPatchPointField (const word &name, const Field< Type > &, vtkMultiBlockDataSet *output, const arrayRange &, const label datasetNo)
	Patch point field. More...

word	getPartName (const int)
	Get the first word from the mesh parts selection. More...

	vtkPV3Foam (const vtkPV3Foam &)
	Disallow default bitwise copy construct. More...

void	operator= (const vtkPV3Foam &)
	Disallow default bitwise assignment. More...

Static Private Member Functions
static void	AddToBlock (vtkMultiBlockDataSet output, vtkDataSet dataset, const arrayRange &, const label datasetNo, const std::string &datasetName)

static vtkDataSet *	GetDataSetFromBlock (vtkMultiBlockDataSet *output, const arrayRange &, const label datasetNo)

static label	GetNumberOfDataSets (vtkMultiBlockDataSet *output, const arrayRange &)

static void	pruneObjectList (IOobjectList &, const wordHashSet &)
	Only keep what is listed in hashSet. More...

static wordHashSet	getSelected (vtkDataArraySelection *)
	Retrieve the current selections. More...

static wordHashSet	getSelected (vtkDataArraySelection *, const arrayRange &)
	Retrieve a sub-list of the current selections. More...

static stringList	getSelectedArrayEntries (vtkDataArraySelection *)
	Retrieve the current selections. More...

static stringList	getSelectedArrayEntries (vtkDataArraySelection *, const arrayRange &)
	Retrieve a sub-list of the current selections. More...

static void	setSelectedArrayEntries (vtkDataArraySelection *, const stringList &)
	Set selection(s) More...

Private Attributes
vtkPV3FoamReader *	reader_
	Access to the controlling vtkPV3FoamReader. More...

autoPtr< Time >	dbPtr_
	OpenFOAM time control. More...

fvMesh *	meshPtr_
	OpenFOAM mesh. More...

word	meshRegion_
	The mesh region. More...

fileName	meshDir_
	The mesh directory for the region. More...

int	timeIndex_
	The time index. More...

bool	meshChanged_
	Track changes in mesh geometry. More...

bool	fieldsChanged_
	Track changes in fields. More...

boolList	partStatus_
	Selected geometrical parts (internalMesh, patches, ...) More...

labelList	partDataset_
	Datasets corresponding to selected geometrical pieces. More...

arrayRange	arrayRangeVolume_
	First instance and size of various mesh parts. More...

arrayRange	arrayRangePatches_

arrayRange	arrayRangeLagrangian_

arrayRange	arrayRangeCellZones_

arrayRange	arrayRangeFaceZones_

arrayRange	arrayRangePointZones_

arrayRange	arrayRangeCellSets_

arrayRange	arrayRangeFaceSets_

arrayRange	arrayRangePointSets_

List< polyDecomp >	regionPolyDecomp_
	Decomposed cells information (mesh regions) More...

List< polyDecomp >	zonePolyDecomp_
	Decomposed cells information (cellZone meshes) More...

List< polyDecomp >	csetPolyDecomp_
	Decomposed cells information (cellSet meshes) More...

List< vtkTextActor * >	patchTextActorsPtrs_
	List of patch names for rendering to window. More...

Detailed Description

Provides a reader interface for OpenFOAM to VTK interaction.

Source files

Needed by VTK: vtkDataArrayTemplateImplicit.txx

Definition at line 107 of file vtkPV3Foam.H.

Constructor & Destructor Documentation

◆ vtkPV3Foam() [1/2]

vtkPV3Foam ( const vtkPV3Foam & )

private

Disallow default bitwise copy construct.

◆ vtkPV3Foam() [2/2]

vtkPV3Foam	(	const char *const	FileName,
		vtkPV3FoamReader *	reader
	)

Construct from components.

◆ ~vtkPV3Foam()

~vtkPV3Foam ( )

Destructor.

Member Function Documentation

◆ AddToBlock()

void AddToBlock	(	vtkMultiBlockDataSet *	output,
		vtkDataSet *	dataset,
		const arrayRange &	range,
		const label	datasetNo,
		const std::string &	datasetName
	)

staticprivate

Definition at line 77 of file vtkPV3FoamUtils.C.

References Foam::endl(), FatalErrorInFunction, Foam::Info, Foam::compressible::New(), and range.

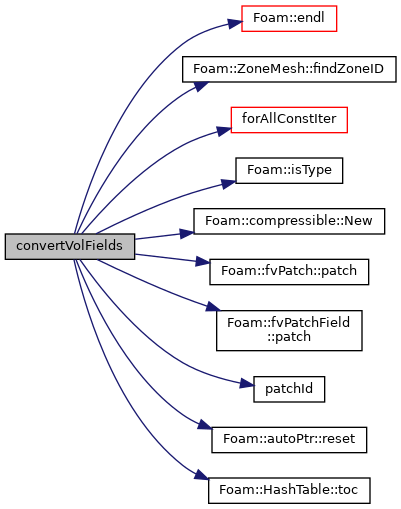

Here is the call graph for this function:

◆ GetDataSetFromBlock()

vtkDataSet * GetDataSetFromBlock	(	vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const label	datasetNo
	)

staticprivate

Definition at line 137 of file vtkPV3FoamUtils.C.

References range.

◆ GetNumberOfDataSets()

Foam::label GetNumberOfDataSets	(	vtkMultiBlockDataSet *	output,
		const arrayRange &	range
	)

staticprivate

Definition at line 159 of file vtkPV3FoamUtils.C.

References range.

◆ resetCounters()

void resetCounters ( )

private

Reset data counters.

◆ updateMeshPartsStatus()

void updateMeshPartsStatus ( )

private

Update the mesh parts selected in the GUI.

◆ updateInfoInternalMesh()

void updateInfoInternalMesh ( vtkDataArraySelection * )

private

Internal mesh info.

◆ updateInfoLagrangian()

void updateInfoLagrangian ( vtkDataArraySelection * )

private

Lagrangian info.

◆ updateInfoPatches()

void updateInfoPatches	(	vtkDataArraySelection *	,
		stringList &
	)

private

Patch info.

◆ updateInfoSets()

void updateInfoSets ( vtkDataArraySelection * )

private

Set info.

◆ updateInfoZones()

void updateInfoZones ( vtkDataArraySelection * )

private

Zone info.

◆ getZoneNames() [1/2]

wordList getZoneNames ( const word & zoneType ) const

private

Get non-empty zone names for zoneType from file.

◆ getZoneNames() [2/2]

wordList getZoneNames ( const ZoneMesh< ZoneType, polyMesh > & ) const

private

Get non-empty zone names from mesh info.

◆ addToSelection() [1/2]

label addToSelection	(	vtkDataArraySelection *	,
		const IOobjectList &	,
		const string &	suffix = `string::null`
	)

private

Add objects of Type to paraview array selection.

◆ updateInfoFields()

void updateInfoFields ( vtkDataArraySelection * select )

private

Field info.

Add volume fields to GUI

Definition at line 36 of file vtkPV3FoamUpdateInfoFields.H.

References Foam::endl(), Foam::vtkPV3Readers::getSelectedArrayEntries(), Foam::Info, Foam::vtkPV3Readers::setSelectedArrayEntries(), List::setSize(), and timeName.

Here is the call graph for this function:

◆ updateInfoLagrangianFields()

void updateInfoLagrangianFields ( )

private

Lagrangian field info.

◆ updateFoamMesh()

void updateFoamMesh ( )

private

OpenFOAM mesh.

◆ reduceMemory()

void reduceMemory ( )

private

Reduce memory footprint after conversion.

◆ updateVolFields()

void updateVolFields ( vtkMultiBlockDataSet * )

private

Volume fields.

◆ updatePointFields()

void updatePointFields ( vtkMultiBlockDataSet * )

private

Point fields.

◆ updateLagrangianFields()

void updateLagrangianFields ( vtkMultiBlockDataSet * )

private

Lagrangian fields.

◆ convertMeshVolume()

void convertMeshVolume	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Volume mesh.

◆ convertMeshLagrangian()

void convertMeshLagrangian	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Lagrangian mesh.

◆ convertMeshPatches()

void convertMeshPatches	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Patch meshes.

◆ convertMeshCellZones()

void convertMeshCellZones	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Cell zone meshes.

◆ convertMeshFaceZones()

void convertMeshFaceZones	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Face zone meshes.

◆ convertMeshPointZones()

void convertMeshPointZones	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Point zone meshes.

◆ convertMeshCellSets()

void convertMeshCellSets	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Cell set meshes.

◆ convertMeshFaceSets()

void convertMeshFaceSets	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Face set meshes.

◆ convertMeshPointSets()

void convertMeshPointSets	(	vtkMultiBlockDataSet *	,
		int &	blockNo
	)

private

Point set meshes.

◆ volumeVTKMesh()

vtkUnstructuredGrid* volumeVTKMesh	(	const fvMesh &	,
		polyDecomp &
	)

private

Add internal mesh/cell set meshes.

◆ lagrangianVTKMesh()

vtkPolyData* lagrangianVTKMesh	(	const fvMesh &	,
		const word &	cloudName
	)

private

Add Lagrangian mesh.

◆ patchVTKMesh()

vtkPolyData* patchVTKMesh	(	const word &	name,
		const PatchType &
	)

private

Add patch mesh.

◆ pointZoneVTKMesh()

vtkPolyData* pointZoneVTKMesh	(	const fvMesh &	,
		const labelList &	pointLabels
	)

private

Add point zone.

◆ faceSetVTKMesh()

vtkPolyData* faceSetVTKMesh	(	const fvMesh &	,
		const faceSet &
	)

private

Add face set mesh.

◆ pointSetVTKMesh()

vtkPolyData* pointSetVTKMesh	(	const fvMesh &	,
		const pointSet &
	)

private

Add point mesh.

◆ convertVolFields() [1/2]

void convertVolFields ( vtkMultiBlockDataSet * )

private

Convert volume fields.

◆ convertPointFields() [1/2]

void convertPointFields ( vtkMultiBlockDataSet * )

private

Convert point fields.

◆ convertLagrangianFields() [1/2]

void convertLagrangianFields ( vtkMultiBlockDataSet * )

private

Convert Lagrangian fields.

◆ addObjectsToSelection()

label addObjectsToSelection	(	vtkDataArraySelection *	,
		const IOobjectList &	,
		const string &	suffix = `string::null`
	)

private

Add the fields in the selected time directory to the selection.

lists

◆ convertVolFields() [2/2]

void convertVolFields	(	const fvMesh &	mesh,
		const PtrList< PrimitivePatchInterpolation< primitivePatch > > &	ppInterpList,
		const IOobjectList &	objects,
		const bool	interpFields,
		vtkMultiBlockDataSet *	output
	)

private

Volume fields - all types.

Definition at line 47 of file vtkPV3FoamVolFields.H.

References Foam::endl(), ZoneMesh::findZoneID(), forAllConstIter(), Foam::Info, Foam::isType(), mesh, Foam::compressible::New(), p, fvPatch::patch(), fvPatchField::patch(), patches, patchId(), autoPtr::reset(), tf, and HashTable::toc().

Here is the call graph for this function:

◆ convertVolFieldBlock()

void convertVolFieldBlock	(	const GeometricField< Type, fvPatchField, volMesh > &	tf,
		autoPtr< GeometricField< Type, pointPatchField, pointMesh > > &	ptfPtr,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const List< polyDecomp > &	decompLst
	)

private

Volume field - all selected parts.

Definition at line 285 of file vtkPV3FoamVolFields.H.

References range, and tf.

◆ convertVolField()

void convertVolField	(	const GeometricField< Type, fvPatchField, volMesh > &	tf,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const label	datasetNo,
		const polyDecomp &	decompInfo
	)

private

Volume field.

Definition at line 327 of file vtkPV3FoamVolFields.H.

References Foam::component(), Foam::endl(), forAll, Foam::vtkPV3Readers::GetDataSetFromBlock(), Foam::Info, Foam::compressible::New(), range, List::size(), vtkPV3Foam::polyDecomp::superCells(), and tf.

Here is the call graph for this function:

◆ convertPatchField()

void convertPatchField	(	const word &	name,
		const Field< Type > &	ptf,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const label	datasetNo
	)

private

Patch field.

Definition at line 45 of file vtkPV3FoamPatchField.H.

References Foam::component(), forAll, Foam::vtkPV3Readers::GetDataSetFromBlock(), Foam::name(), Foam::compressible::New(), and range.

Here is the call graph for this function:

◆ convertFaceField()

void convertFaceField	(	const GeometricField< Type, fvPatchField, volMesh > &	tf,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const label	datasetNo,
		const fvMesh &	mesh,
		const labelList &	faceLabels
	)

private

Face set/zone field.

Definition at line 44 of file vtkPV3FoamFaceField.H.

References Foam::component(), Foam::endl(), forAll, Foam::vtkPV3Readers::GetDataSetFromBlock(), Foam::Info, mesh, Foam::compressible::New(), range, List::size(), and tf.

Here is the call graph for this function:

◆ convertLagrangianFields() [2/2]

void convertLagrangianFields	(	const IOobjectList &	objects,
		vtkMultiBlockDataSet *	output,
		const label	datasetNo
	)

private

Lagrangian fields - all types.

Definition at line 40 of file vtkPV3FoamLagrangianFields.H.

References forAllConstIter(), range, and tf.

Here is the call graph for this function:

◆ convertLagrangianField()

void convertLagrangianField	(	const IOField< Type > &	tf,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const label	datasetNo
	)

private

Lagrangian field.

Definition at line 62 of file vtkPV3FoamLagrangianFields.H.

References Foam::component(), Foam::endl(), forAll, Foam::vtkPV3Readers::GetDataSetFromBlock(), Foam::Info, Foam::compressible::New(), range, and tf.

Here is the call graph for this function:

◆ convertPointFields() [2/2]

void convertPointFields	(	const fvMesh &	mesh,
		const pointMesh &	pMesh,
		const IOobjectList &	objects,
		vtkMultiBlockDataSet *	output
	)

private

Point fields - all types.

Definition at line 41 of file vtkPV3FoamPointFields.H.

References GeometricField::boundaryField(), Foam::endl(), fld(), forAllConstIter(), Foam::Info, GeometricField::internalField(), mesh, patches, and patchId().

Here is the call graph for this function:

◆ convertPointFieldBlock()

void convertPointFieldBlock	(	const GeometricField< Type, pointPatchField, pointMesh > &	ptf,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const List< polyDecomp > &	decompLst
	)

private

Point field - all selected parts.

Definition at line 174 of file vtkPV3FoamPointFields.H.

References range.

◆ convertPointField()

void convertPointField	(	const GeometricField< Type, pointPatchField, pointMesh > &	ptf,
		const GeometricField< Type, fvPatchField, volMesh > &	tf,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const label	datasetNo,
		const polyDecomp &	decomp
	)

private

Point fields.

Definition at line 203 of file vtkPV3FoamPointFields.H.

References vtkPV3Foam::polyDecomp::addPointCellLabels(), Foam::component(), Foam::endl(), forAll, Foam::vtkPV3Readers::GetDataSetFromBlock(), Foam::Info, Foam::interpolatePointToCell(), Foam::compressible::New(), nPoints, vtkPV3Foam::polyDecomp::pointMap(), range, List::size(), and tf.

Here is the call graph for this function:

◆ convertPatchPointField()

void convertPatchPointField	(	const word &	name,
		const Field< Type > &	pptf,
		vtkMultiBlockDataSet *	output,
		const arrayRange &	range,
		const label	datasetNo
	)

private

Patch point field.

Definition at line 87 of file vtkPV3FoamPatchField.H.

References Foam::component(), forAll, Foam::vtkPV3Readers::GetDataSetFromBlock(), Foam::name(), Foam::compressible::New(), and range.

Here is the call graph for this function:

◆ pruneObjectList()

static void pruneObjectList	(	IOobjectList &	,
		const wordHashSet &
	)

staticprivate

Only keep what is listed in hashSet.

◆ getSelected() [1/2]

Foam::wordHashSet getSelected ( vtkDataArraySelection * select )

staticprivate

Retrieve the current selections.

Definition at line 184 of file vtkPV3FoamUtils.C.

References HashSet< Key, Hash >::insert().

Here is the call graph for this function:

◆ getSelected() [2/2]

Foam::wordHashSet getSelected	(	vtkDataArraySelection *	select,
		const arrayRange &	range
	)

staticprivate

Retrieve a sub-list of the current selections.

Definition at line 204 of file vtkPV3FoamUtils.C.

References HashSet< Key, Hash >::insert(), and range.

Here is the call graph for this function:

◆ getSelectedArrayEntries() [1/2]

Foam::stringList getSelectedArrayEntries ( vtkDataArraySelection * select )

staticprivate

Retrieve the current selections.

Definition at line 225 of file vtkPV3FoamUtils.C.

References forAll, Foam::Info, and List::setSize().

Here is the call graph for this function:

◆ getSelectedArrayEntries() [2/2]

Foam::stringList getSelectedArrayEntries	(	vtkDataArraySelection *	select,
		const arrayRange &	range
	)

staticprivate

Retrieve a sub-list of the current selections.

Definition at line 264 of file vtkPV3FoamUtils.C.

References forAll, Foam::Info, range, and List::setSize().

Here is the call graph for this function:

◆ setSelectedArrayEntries()

void setSelectedArrayEntries	(	vtkDataArraySelection *	select,
		const stringList &	selections
	)

staticprivate

Set selection(s)

Definition at line 303 of file vtkPV3FoamUtils.C.

References forAll.

◆ getPartName()

Foam::word getPartName ( const int partId )

private

Get the first word from the mesh parts selection.

Definition at line 177 of file vtkPV3FoamUtils.C.

References vtkPV3Foam::reader_.

◆ operator=()

void operator= ( const vtkPV3Foam & )

private

Disallow default bitwise assignment.

◆ ClassName()

ClassName ( "vtkPV3Foam" )

Static data members.

◆ updateInfo()

void updateInfo ( )

Update.

◆ Update()

void Update	(	vtkMultiBlockDataSet *	output,
		vtkMultiBlockDataSet *	lagrangianOutput
	)

◆ CleanUp()

void CleanUp ( )

Clean any storage.

◆ findTimes()

double* findTimes ( int & nTimeSteps )

Allocate and return a list of selected times.

returns the count via the parameter

◆ renderPatchNames()

void renderPatchNames	(	vtkRenderer *	,
		const bool	show
	)

Add/remove patch names to/from the view.

◆ setTime()

int setTime	(	int	count,
		const double	requestTimes[]
	)

Set the runTime to the first plausible request time,.

returns the timeIndex sets to "constant" on error

◆ timeIndex()

int timeIndex ( ) const

inline

The current time index.

Definition at line 709 of file vtkPV3Foam.H.

References vtkPV3Foam::timeIndex_.

◆ PrintSelf()

void PrintSelf	(	ostream &	,
		vtkIndent
	)		const

Debug information.

◆ printMemory()

void printMemory ( )

static

Simple memory used debugging information.

Definition at line 330 of file vtkPV3FoamUtils.C.

References Foam::Info, and memInfo::valid().

Here is the call graph for this function:

◆ addToSelection() [2/2]

Foam::label addToSelection	(	vtkDataArraySelection *	select,
		const IOobjectList &	objectLst,
		const string &	suffix
	)

Definition at line 40 of file vtkPV3FoamAddToSelection.H.

References forAll, and IOobjectList::names().

Here is the call graph for this function:

Field Documentation

◆ reader_

vtkPV3FoamReader* reader_

private

Access to the controlling vtkPV3FoamReader.

Definition at line 249 of file vtkPV3Foam.H.

Referenced by vtkPV3Foam::getPartName().

◆ dbPtr_

autoPtr<Time> dbPtr_

private

OpenFOAM time control.

Definition at line 252 of file vtkPV3Foam.H.

◆ meshPtr_

fvMesh* meshPtr_

private

OpenFOAM mesh.

Definition at line 255 of file vtkPV3Foam.H.

◆ meshRegion_

word meshRegion_

private

The mesh region.

Definition at line 258 of file vtkPV3Foam.H.

◆ meshDir_

fileName meshDir_

private

The mesh directory for the region.

Definition at line 261 of file vtkPV3Foam.H.

◆ timeIndex_

int timeIndex_

private

The time index.

Definition at line 264 of file vtkPV3Foam.H.

Referenced by vtkPV3Foam::timeIndex().

◆ meshChanged_

bool meshChanged_

private

Track changes in mesh geometry.

Definition at line 267 of file vtkPV3Foam.H.

◆ fieldsChanged_

bool fieldsChanged_

private

Track changes in fields.

Definition at line 270 of file vtkPV3Foam.H.

◆ partStatus_

boolList partStatus_

private

Selected geometrical parts (internalMesh, patches, ...)

Definition at line 273 of file vtkPV3Foam.H.

◆ partDataset_

labelList partDataset_

private

Datasets corresponding to selected geometrical pieces.

a negative number indicates that no vtkmesh exists for this piece

Definition at line 277 of file vtkPV3Foam.H.

◆ arrayRangeVolume_

arrayRange arrayRangeVolume_

private

First instance and size of various mesh parts.

used to index into partStatus_ and partDataset_

Definition at line 281 of file vtkPV3Foam.H.

◆ arrayRangePatches_

arrayRange arrayRangePatches_

private

Definition at line 282 of file vtkPV3Foam.H.

◆ arrayRangeLagrangian_

arrayRange arrayRangeLagrangian_

private

Definition at line 283 of file vtkPV3Foam.H.

◆ arrayRangeCellZones_

arrayRange arrayRangeCellZones_

private

Definition at line 284 of file vtkPV3Foam.H.

◆ arrayRangeFaceZones_

arrayRange arrayRangeFaceZones_

private

Definition at line 285 of file vtkPV3Foam.H.

◆ arrayRangePointZones_

arrayRange arrayRangePointZones_

private

Definition at line 286 of file vtkPV3Foam.H.

◆ arrayRangeCellSets_

arrayRange arrayRangeCellSets_

private

Definition at line 287 of file vtkPV3Foam.H.

◆ arrayRangeFaceSets_

arrayRange arrayRangeFaceSets_

private

Definition at line 288 of file vtkPV3Foam.H.

◆ arrayRangePointSets_

arrayRange arrayRangePointSets_

private

Definition at line 289 of file vtkPV3Foam.H.

◆ regionPolyDecomp_

List<polyDecomp> regionPolyDecomp_

private

Decomposed cells information (mesh regions)

TODO: regions

Definition at line 293 of file vtkPV3Foam.H.

◆ zonePolyDecomp_

List<polyDecomp> zonePolyDecomp_

private

Decomposed cells information (cellZone meshes)

Definition at line 296 of file vtkPV3Foam.H.

◆ csetPolyDecomp_

List<polyDecomp> csetPolyDecomp_

private

Decomposed cells information (cellSet meshes)

Definition at line 299 of file vtkPV3Foam.H.

◆ patchTextActorsPtrs_

List<vtkTextActor*> patchTextActorsPtrs_

private

List of patch names for rendering to window.

Definition at line 302 of file vtkPV3Foam.H.

The documentation for this class was generated from the following files:

applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3Foam.H
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamAddToSelection.H
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamFaceField.H
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamLagrangianFields.H
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamPatchField.H
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamPointFields.H
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamUpdateInfoFields.H
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamUtils.C
applications/utilities/postProcessing/graphics/PV3Readers/PV3FoamReader/vtkPV3Foam/vtkPV3FoamVolFields.H

Data Structures

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ vtkPV3Foam() [1/2]

◆ vtkPV3Foam() [2/2]

◆ ~vtkPV3Foam()

Member Function Documentation

◆ AddToBlock()

◆ GetDataSetFromBlock()

◆ GetNumberOfDataSets()

◆ resetCounters()

◆ updateMeshPartsStatus()

◆ updateInfoInternalMesh()

◆ updateInfoLagrangian()

◆ updateInfoPatches()

◆ updateInfoSets()

◆ updateInfoZones()

◆ getZoneNames() [1/2]

◆ getZoneNames() [2/2]

◆ addToSelection() [1/2]

◆ updateInfoFields()

◆ updateInfoLagrangianFields()

◆ updateFoamMesh()

◆ reduceMemory()

◆ updateVolFields()

◆ updatePointFields()

◆ updateLagrangianFields()

◆ convertMeshVolume()

◆ convertMeshLagrangian()

◆ convertMeshPatches()

◆ convertMeshCellZones()

◆ convertMeshFaceZones()

◆ convertMeshPointZones()

◆ convertMeshCellSets()

◆ convertMeshFaceSets()

◆ convertMeshPointSets()

◆ volumeVTKMesh()

◆ lagrangianVTKMesh()

◆ patchVTKMesh()

◆ pointZoneVTKMesh()

◆ faceSetVTKMesh()

◆ pointSetVTKMesh()

◆ convertVolFields() [1/2]

◆ convertPointFields() [1/2]

◆ convertLagrangianFields() [1/2]

◆ addObjectsToSelection()

◆ convertVolFields() [2/2]

◆ convertVolFieldBlock()

◆ convertVolField()

◆ convertPatchField()

◆ convertFaceField()

◆ convertLagrangianFields() [2/2]

◆ convertLagrangianField()

◆ convertPointFields() [2/2]

◆ convertPointFieldBlock()

◆ convertPointField()

◆ convertPatchPointField()

◆ pruneObjectList()

◆ getSelected() [1/2]

◆ getSelected() [2/2]

◆ getSelectedArrayEntries() [1/2]

◆ getSelectedArrayEntries() [2/2]

◆ setSelectedArrayEntries()

◆ getPartName()

◆ operator=()

◆ ClassName()

◆ updateInfo()

◆ Update()

◆ CleanUp()

◆ findTimes()

◆ renderPatchNames()

◆ setTime()

◆ timeIndex()

◆ PrintSelf()

◆ printMemory()
