Displacement follows a triSurface. Use in a displacementMotionSolver as a bc on the pointDisplacement field. Following is done by calculating the projection onto the surface according to the projectMode. More...

Inheritance diagram for surfaceSlipDisplacementPointPatchVectorField:

[legend]

Collaboration diagram for surfaceSlipDisplacementPointPatchVectorField:

[legend]

Public Types
enum	projectMode { NEAREST, POINTNORMAL, FIXEDNORMAL }

Public Types inherited from pointPatchField
typedef pointPatch	Patch

Public Member Functions
	TypeName ("surfaceSlipDisplacement")
	Runtime type information. More...

	surfaceSlipDisplacementPointPatchVectorField (const pointPatch &, const DimensionedField< vector, pointMesh > &)
	Construct from patch and internal field. More...

	surfaceSlipDisplacementPointPatchVectorField (const pointPatch &, const DimensionedField< vector, pointMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...

	surfaceSlipDisplacementPointPatchVectorField (const surfaceSlipDisplacementPointPatchVectorField &, const pointPatch &, const DimensionedField< vector, pointMesh > &, const pointPatchFieldMapper &)
	Construct by mapping given patchField<vector> onto a new patch. More...

	surfaceSlipDisplacementPointPatchVectorField (const surfaceSlipDisplacementPointPatchVectorField &)
	Construct as copy. More...

virtual autoPtr< pointPatchVectorField >	clone () const
	Construct and return a clone. More...

	surfaceSlipDisplacementPointPatchVectorField (const surfaceSlipDisplacementPointPatchVectorField &, const DimensionedField< vector, pointMesh > &)
	Construct as copy setting internal field reference. More...

virtual autoPtr< pointPatchVectorField >	clone (const DimensionedField< vector, pointMesh > &iF) const
	Construct and return a clone setting internal field reference. More...

const searchableSurfaces &	surfaces () const
	Surface to follow. Demand loads surfaceNames. More...

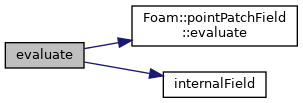

virtual void	evaluate (const Pstream::commsTypes commsType=Pstream::blocking)
	Update the patch field. More...

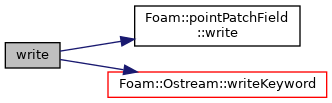

virtual void	write (Ostream &) const
	Write. More...

Public Member Functions inherited from pointPatchField
	TypeName ("pointPatchField")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, pointPatchField, pointPatch,(const pointPatch &p, const DimensionedField< Type, pointMesh > &iF),(p, iF))

	declareRunTimeSelectionTable (autoPtr, pointPatchField, patchMapper,(const pointPatchField< Type > &ptf, const pointPatch &p, const DimensionedField< Type, pointMesh > &iF, const pointPatchFieldMapper &m),(dynamic_cast< const pointPatchFieldType & >(ptf), p, iF, m))

	declareRunTimeSelectionTable (autoPtr, pointPatchField, dictionary,(const pointPatch &p, const DimensionedField< Type, pointMesh > &iF, const dictionary &dict),(p, iF, dict))

	pointPatchField (const pointPatch &, const DimensionedField< Type, pointMesh > &)
	Construct from patch and internal field. More...

	pointPatchField (const pointPatch &, const DimensionedField< Type, pointMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...

	pointPatchField (const pointPatchField< Type > &, const pointPatch &, const DimensionedField< Type, pointMesh > &, const pointPatchFieldMapper &)
	Construct by mapping given patchField<Type> onto a new patch. More...

	pointPatchField (const pointPatchField< Type > &)
	Construct as copy. More...

	pointPatchField (const pointPatchField< Type > &, const DimensionedField< Type, pointMesh > &)
	Construct as copy setting internal field reference. More...

virtual autoPtr< pointPatchField< Type > >	clone (const DimensionedField< Type, pointMesh > &iF) const =0
	Construct and return a clone setting internal field reference. More...

virtual	~pointPatchField ()
	Destructor. More...

const objectRegistry &	db () const
	Return local objectRegistry. More...

label	size () const
	Return size. More...

const pointPatch &	patch () const
	Return patch. More...

const DimensionedField< Type, pointMesh > &	dimensionedInternalField () const
	Return dimensioned internal field reference. More...

const Field< Type > &	internalField () const
	Return internal field reference. More...

const word &	patchType () const
	Optional patch type. More...

word &	patchType ()
	Optional patch type. More...

virtual bool	fixesValue () const
	Return true if this patch field fixes a value. More...

virtual bool	coupled () const
	Return true if this patch field is coupled. More...

bool	updated () const
	Return true if the boundary condition has already been updated. More...

tmp< Field< Type > >	patchInternalField () const
	Return field created from appropriate internal field values. More...

template<class Type1 >
tmp< Field< Type1 > >	patchInternalField (const Field< Type1 > &iF) const
	Return field created from appropriate internal field values. More...

template<class Type1 >
tmp< Field< Type1 > >	patchInternalField (const Field< Type1 > &iF, const labelList &meshPoints) const
	Return field created from selected internal field values. More...

template<class Type1 >
void	addToInternalField (Field< Type1 > &iF, const Field< Type1 > &pF) const
	Given the internal field and a patch field,. More...

template<class Type1 >
void	addToInternalField (Field< Type1 > &iF, const Field< Type1 > &pF, const labelList &points) const
	Given the internal field and a patch field,. More...

template<class Type1 >
void	setInInternalField (Field< Type1 > &iF, const Field< Type1 > &pF, const labelList &meshPoints) const
	Given the internal field and a patch field,. More...

template<class Type1 >
void	setInInternalField (Field< Type1 > &iF, const Field< Type1 > &pF) const
	Given the internal field and a patch field,. More...

virtual const word &	constraintType () const
	Return the constraint type this pointPatchField implements. More...

virtual void	autoMap (const pointPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object. More...

virtual void	rmap (const pointPatchField< Type > &, const labelList &)
	Reverse map the given pointPatchField onto this pointPatchField. More...

virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field. More...

virtual void	initEvaluate (const Pstream::commsTypes commsType=Pstream::blocking)
	Initialise evaluation of the patch field (do nothing) More...

virtual void	operator= (const pointPatchField< Type > &)

virtual void	operator+= (const pointPatchField< Type > &)

virtual void	operator-= (const pointPatchField< Type > &)

virtual void	operator*= (const pointPatchField< scalar > &)

virtual void	operator/= (const pointPatchField< scalar > &)

virtual void	operator= (const Field< Type > &)

virtual void	operator+= (const Field< Type > &)

virtual void	operator-= (const Field< Type > &)

virtual void	operator*= (const Field< scalar > &)

virtual void	operator/= (const Field< scalar > &)

virtual void	operator= (const Type &)

virtual void	operator+= (const Type &)

virtual void	operator-= (const Type &)

virtual void	operator*= (const scalar)

virtual void	operator/= (const scalar)

virtual void	operator== (const pointPatchField< Type > &)

virtual void	operator== (const Field< Type > &)

virtual void	operator== (const Type &)

template<class Type >
tmp< Field< Type > >	patchInternalField () const

Private Member Functions
void	calcProjection (vectorField &displacement) const
	Calculate displacement (w.r.t. points0()) to project onto surface. More...

void	operator= (const surfaceSlipDisplacementPointPatchVectorField &)
	Disallow default bitwise assignment. More...

Private Attributes
const dictionary	surfacesDict_
	Names of surfaces. More...

const projectMode	projectMode_
	How to project/project onto surface. More...

const vector	projectDir_
	Direction to project. More...

const label	wedgePlane_
	Plane for 2D wedge case or -1. More...

const word	frozenPointsZone_
	pointZone with frozen points More...

autoPtr< searchableSurfaces >	surfacesPtr_
	Demand driven: surface to project. More...

Static Private Attributes
static const NamedEnum< projectMode, 3 >	projectModeNames_
	Project mode names. More...

Additional Inherited Members
Static Public Member Functions inherited from pointPatchField
static autoPtr< pointPatchField< Type > >	New (const word &, const pointPatch &, const DimensionedField< Type, pointMesh > &)
	Return a pointer to a new patchField created on freestore given. More...

static autoPtr< pointPatchField< Type > >	New (const word &, const word &actualPatchType, const pointPatch &, const DimensionedField< Type, pointMesh > &)
	Return a pointer to a new patchField created on freestore given. More...

static autoPtr< pointPatchField< Type > >	New (const pointPatchField< Type > &, const pointPatch &, const DimensionedField< Type, pointMesh > &, const pointPatchFieldMapper &)
	Return a pointer to a new patchField created on freestore from. More...

static autoPtr< pointPatchField< Type > >	New (const pointPatch &, const DimensionedField< Type, pointMesh > &, const dictionary &)
	Return a pointer to a new patchField created on freestore. More...

template<class Type2 >
static autoPtr< pointPatchField< Type > >	NewCalculatedType (const pointPatchField< Type2 > &)
	Return a pointer to a new CalculatedpointPatchField created on. More...

static const word &	calculatedType ()
	Return the type of the calculated form of pointPatchField. More...

Static Public Attributes inherited from pointPatchField
static int	disallowGenericPointPatchField
	Debug switch to disallow the use of genericPointPatchField. More...

Detailed Description

Displacement follows a triSurface. Use in a displacementMotionSolver as a bc on the pointDisplacement field. Following is done by calculating the projection onto the surface according to the projectMode.

- NEAREST : nearest

POINTNORMAL : intersection with point normal
FIXEDNORMAL : intersection with fixed vector

Optionally (intersection only) removes a component ("wedgePlane") to stay in 2D.

Needs:

geometry : dictionary with searchableSurfaces. (usually triSurfaceMeshes in constant/triSurface)
projectMode : see above
projectDirection : if projectMode = fixedNormal
wedgePlane : -1 or component to knock out of intersection normal
frozenPointsZone : empty or name of pointZone containing points that do not move

Source files

Definition at line 67 of file surfaceSlipDisplacementPointPatchVectorField.H.

Member Enumeration Documentation

◆ projectMode

enum projectMode

Enumerator
NEAREST
POINTNORMAL
FIXEDNORMAL

Definition at line 76 of file surfaceSlipDisplacementPointPatchVectorField.H.

Constructor & Destructor Documentation

◆ surfaceSlipDisplacementPointPatchVectorField() [1/5]

surfaceSlipDisplacementPointPatchVectorField	(	const pointPatch &	p,
		const DimensionedField< vector, pointMesh > &	iF
	)

Construct from patch and internal field.

Definition at line 304 of file surfaceSlipDisplacementPointPatchVectorField.C.

◆ surfaceSlipDisplacementPointPatchVectorField() [2/5]

surfaceSlipDisplacementPointPatchVectorField	(	const pointPatch &	p,
		const DimensionedField< vector, pointMesh > &	iF,
		const dictionary &	dict
	)

Construct from patch, internal field and dictionary.

Definition at line 318 of file surfaceSlipDisplacementPointPatchVectorField.C.

◆ surfaceSlipDisplacementPointPatchVectorField() [3/5]

surfaceSlipDisplacementPointPatchVectorField	(	const surfaceSlipDisplacementPointPatchVectorField &	ppf,
		const pointPatch &	p,
		const DimensionedField< vector, pointMesh > &	iF,
		const pointPatchFieldMapper &
	)

Construct by mapping given patchField<vector> onto a new patch.

Definition at line 335 of file surfaceSlipDisplacementPointPatchVectorField.C.

◆ surfaceSlipDisplacementPointPatchVectorField() [4/5]

surfaceSlipDisplacementPointPatchVectorField ( const surfaceSlipDisplacementPointPatchVectorField & ppf )

Construct as copy.

Definition at line 353 of file surfaceSlipDisplacementPointPatchVectorField.C.

◆ surfaceSlipDisplacementPointPatchVectorField() [5/5]

surfaceSlipDisplacementPointPatchVectorField	(	const surfaceSlipDisplacementPointPatchVectorField &	ppf,
		const DimensionedField< vector, pointMesh > &	iF
	)
