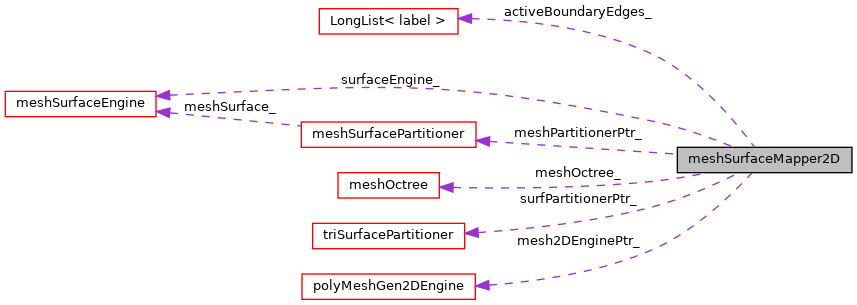

Collaboration diagram for meshSurfaceMapper2D:

[legend]

Public Member Functions
	meshSurfaceMapper2D (const meshSurfaceEngine &, const meshOctree &)
	Construct from meshSurfaceEngine and octree. More...

	~meshSurfaceMapper2D ()

void	adjustZCoordinates ()
	adjust z coordinates of the mesh to the ones in the surface mesh More...

void	mapVerticesOntoSurface ()

void	mapVerticesOntoSurface (const labelLongList &edgesToMap)

void	mapCorners ()

void	mapCorners (const labelLongList &edgesToMap)

void	mapVerticesOntoSurfacePatches ()

void	mapVerticesOntoSurfacePatches (const labelLongList &edgesToMap)

void	preMapVertices (const label nIterations=2)

Private Member Functions
void	findActiveBoundaryEdges ()
	find active boundary edges More...

void	create2DEngine () const
	create a 2D engine More...

const polyMeshGen2DEngine &	mesh2DEngine () const
	create and return mesh 2D engine More...

void	createTriSurfacePartitioner () const
	create surface partitioner More...

const triSurfacePartitioner &	surfacePartitioner () const
	create and reurn surface partitioner More...

void	createMeshSurfacePartitioner () const
	create mesh surface partitioner More...

const meshSurfacePartitioner &	meshPartitioner () const
	create and return mesh surface partitioner More...

void	clearOut ()
	delete dynamically allocated data More...

void	findMappingDistance (const labelLongList &, std::map< label, scalar > &) const
	find mapping distance for corner points More...

void	mapToSmallestDistance (LongList< parMapperHelper > &)
	map to the location with the smallest distance More...

	meshSurfaceMapper2D (const meshSurfaceMapper2D &)
	Disallow default bitwise copy construct. More...

void	operator= (const meshSurfaceMapper2D &)
	Disallow default bitwise assignment. More...

Private Attributes
const meshSurfaceEngine &	surfaceEngine_
	reference to mesh surface More...

const meshOctree &	meshOctree_
	reference to the octree More...

polyMeshGen2DEngine *	mesh2DEnginePtr_
	mesh 2D engine More...

triSurfacePartitioner *	surfPartitionerPtr_
	triSurface partitioner More...

meshSurfacePartitioner *	meshPartitionerPtr_
	mesh surface partitioner More...

labelLongList	activeBoundaryEdges_

Detailed Description

Definition at line 62 of file meshSurfaceMapper2D.H.

Constructor & Destructor Documentation

◆ meshSurfaceMapper2D() [1/2]

meshSurfaceMapper2D ( const meshSurfaceMapper2D & )

private

Disallow default bitwise copy construct.

◆ meshSurfaceMapper2D() [2/2]

meshSurfaceMapper2D	(	const meshSurfaceEngine &	mse,
		const meshOctree &	octree
	)

Construct from meshSurfaceEngine and octree.

allocate bpAtProcs and other addressing this is done here to prevent possible deadlocks

Definition at line 132 of file meshSurfaceMapper2D.C.

References UPstream::parRun().

Here is the call graph for this function:

◆ ~meshSurfaceMapper2D()

~meshSurfaceMapper2D ( )

Definition at line 157 of file meshSurfaceMapper2D.C.

References meshSurfaceMapper2D::clearOut().

Here is the call graph for this function:

Member Function Documentation

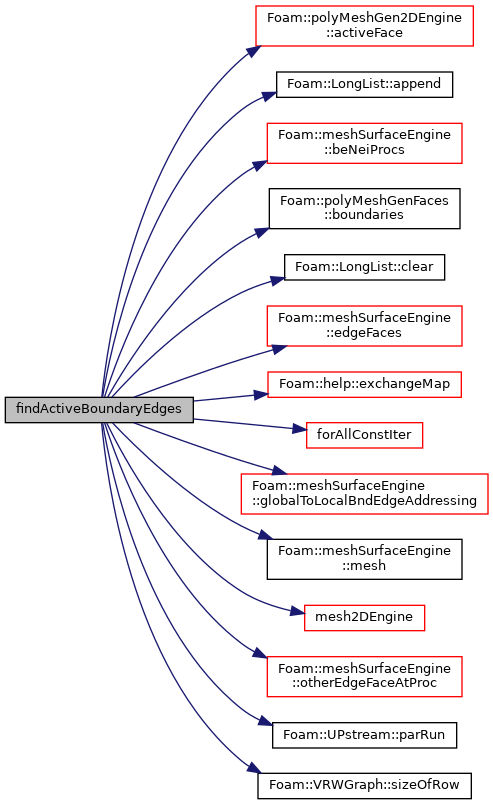

◆ findActiveBoundaryEdges()

void findActiveBoundaryEdges ( )

private

find active boundary edges

check which edges are at the boundary

Definition at line 47 of file meshSurfaceMapper2D.C.

References meshSurfaceMapper2D::activeBoundaryEdges_, polyMeshGen2DEngine::activeFace(), LongList< T, Offset >::append(), meshSurfaceEngine::beNeiProcs(), polyMeshGenFaces::boundaries(), LongList< T, Offset >::clear(), meshSurfaceEngine::edgeFaces(), Foam::help::exchangeMap(), forAll, forAllConstIter(), meshSurfaceEngine::globalToLocalBndEdgeAddressing(), meshSurfaceEngine::mesh(), meshSurfaceMapper2D::mesh2DEngine(), meshSurfaceEngine::otherEdgeFaceAtProc(), UPstream::parRun(), VRWGraph::sizeOfRow(), and meshSurfaceMapper2D::surfaceEngine_.

Here is the call graph for this function:

◆ create2DEngine()

void create2DEngine ( ) const

private

create a 2D engine

Definition at line 106 of file meshSurfaceMapper2D.C.

References mesh, meshSurfaceEngine::mesh(), meshSurfaceMapper2D::mesh2DEnginePtr_, and meshSurfaceMapper2D::surfaceEngine_.

Referenced by meshSurfaceMapper2D::mesh2DEngine().

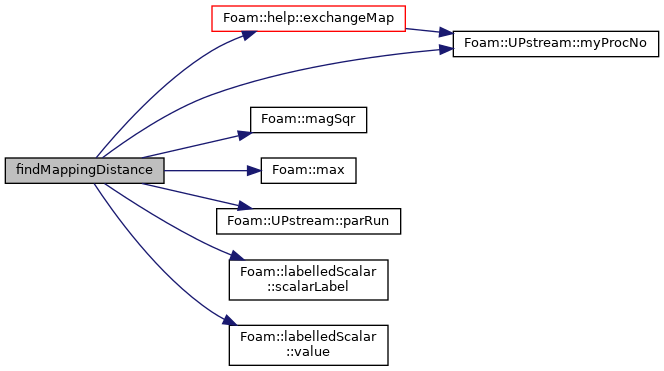

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mesh2DEngine()

const polyMeshGen2DEngine& mesh2DEngine ( ) const

inlineprivate

create and return mesh 2D engine

Definition at line 92 of file meshSurfaceMapper2D.H.

References meshSurfaceMapper2D::create2DEngine(), and meshSurfaceMapper2D::mesh2DEnginePtr_.

Referenced by meshSurfaceMapper2D::adjustZCoordinates(), and meshSurfaceMapper2D::findActiveBoundaryEdges().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createTriSurfacePartitioner()

void createTriSurfacePartitioner ( ) const

private

create surface partitioner

Definition at line 112 of file meshSurfaceMapper2D.C.

References meshSurfaceMapper2D::meshOctree_, meshOctree::surface(), and meshSurfaceMapper2D::surfPartitionerPtr_.

Referenced by meshSurfaceMapper2D::surfacePartitioner().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ surfacePartitioner()

const triSurfacePartitioner& surfacePartitioner ( ) const

inlineprivate

create and reurn surface partitioner

Definition at line 104 of file meshSurfaceMapper2D.H.

References meshSurfaceMapper2D::createTriSurfacePartitioner(), and meshSurfaceMapper2D::surfPartitionerPtr_.

Here is the call graph for this function:

◆ createMeshSurfacePartitioner()

void createMeshSurfacePartitioner ( ) const

private

create mesh surface partitioner

Definition at line 117 of file meshSurfaceMapper2D.C.

References meshSurfaceMapper2D::meshPartitionerPtr_, and meshSurfaceMapper2D::surfaceEngine_.

Referenced by meshSurfaceMapper2D::meshPartitioner().

Here is the caller graph for this function:

◆ meshPartitioner()

const meshSurfacePartitioner& meshPartitioner ( ) const

inlineprivate

create and return mesh surface partitioner

Definition at line 116 of file meshSurfaceMapper2D.H.

References meshSurfaceMapper2D::createMeshSurfacePartitioner(), and meshSurfaceMapper2D::meshPartitionerPtr_.

Referenced by meshSurfaceMapper2D::mapCorners().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearOut()

void clearOut ( )

private

delete dynamically allocated data

Definition at line 122 of file meshSurfaceMapper2D.C.

References Foam::deleteDemandDrivenData(), meshSurfaceMapper2D::mesh2DEnginePtr_, meshSurfaceMapper2D::meshPartitionerPtr_, and meshSurfaceMapper2D::surfPartitionerPtr_.

Referenced by meshSurfaceMapper2D::~meshSurfaceMapper2D().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findMappingDistance()

void findMappingDistance	(	const labelLongList &	edgesToMap,
		std::map< label, scalar > &	mappingDistance
	)		const

private

find mapping distance for corner points

generate search distance for corner edges

safety factor

make sure that corner edges at parallel boundaries have the same range in which they accept the corners

create the map for exchanging data

exchange data between processors

select the maximum mapping distance for processor points

choose the maximum value for the mapping distance

Definition at line 56 of file meshSurfaceMapper2DMapVertices.C.

References Foam::help::exchangeMap(), forAll, forAllRow, Foam::magSqr(), Foam::max(), UPstream::myProcNo(), p, UPstream::parRun(), points, labelledScalar::scalarLabel(), and labelledScalar::value().

Referenced by meshSurfaceMapper2D::mapCorners().

Here is the call graph for this function:

Here is the caller graph for this function:

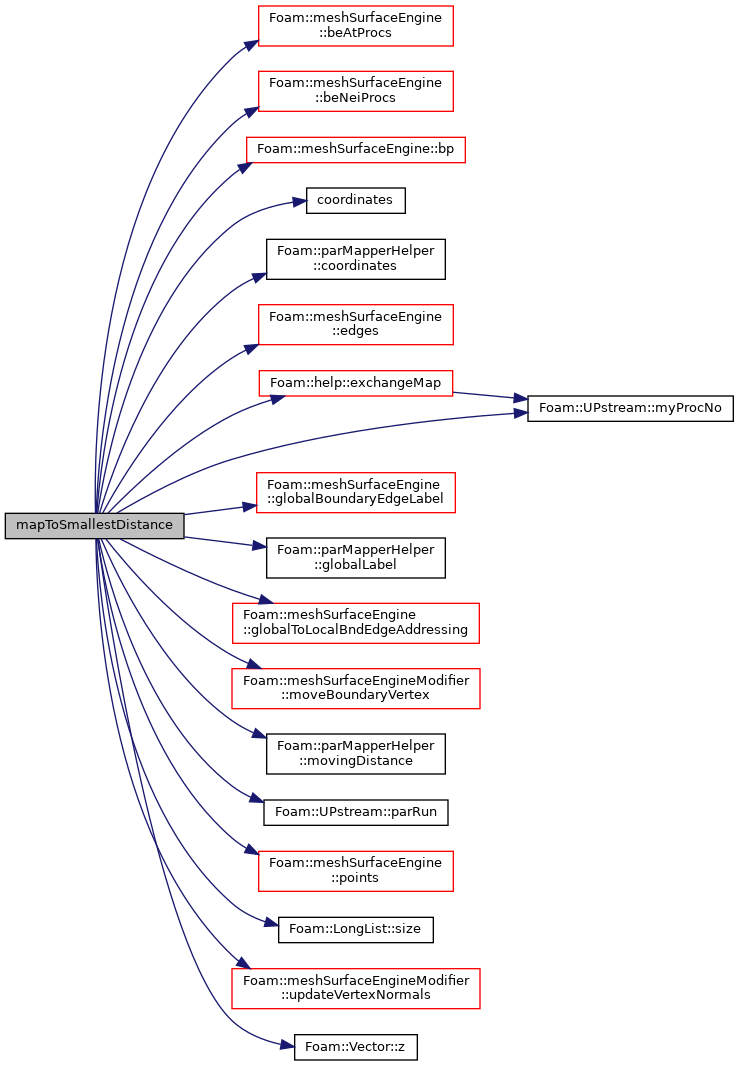

◆ mapToSmallestDistance()

void mapToSmallestDistance ( LongList< parMapperHelper > & parE )

private

map to the location with the smallest distance

exchange data

select the point with the smallest moving distance

Definition at line 139 of file meshSurfaceMapper2DMapVertices.C.

References meshSurfaceEngine::beAtProcs(), meshSurfaceEngine::beNeiProcs(), meshSurfaceEngine::bp(), coordinates(), parMapperHelper::coordinates(), Foam::e, meshSurfaceEngine::edges(), Foam::help::exchangeMap(), forAll, forAllRow, meshSurfaceEngine::globalBoundaryEdgeLabel(), parMapperHelper::globalLabel(), meshSurfaceEngine::globalToLocalBndEdgeAddressing(), meshSurfaceEngineModifier::moveBoundaryVertex(), parMapperHelper::movingDistance(), UPstream::myProcNo(), UPstream::parRun(), points, meshSurfaceEngine::points(), LongList< T, Offset >::size(), meshSurfaceMapper2D::surfaceEngine_, meshSurfaceEngineModifier::updateVertexNormals(), and Vector< Cmpt >::z().

Referenced by meshSurfaceMapper2D::mapVerticesOntoSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

void operator= ( const meshSurfaceMapper2D & )

private

Disallow default bitwise assignment.

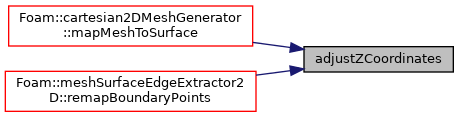

◆ adjustZCoordinates()

void adjustZCoordinates ( )

adjust z coordinates of the mesh to the ones in the surface mesh

create the bounding box of the surface mesh

Definition at line 219 of file meshSurfaceMapper2DMapVertices.C.

References meshSurfaceEngine::bp(), Foam::exit(), Foam::FatalError, FatalErrorIn, forAll, boundBox::max(), meshSurfaceMapper2D::mesh2DEngine(), meshSurfaceMapper2D::meshOctree_, boundBox::min(), meshSurfaceEngineModifier::moveBoundaryVertexNoUpdate(), points, triSurfPoints::points(), meshSurfaceEngine::points(), meshOctree::surface(), meshSurfaceMapper2D::surfaceEngine_, meshSurfaceEngineModifier::updateGeometry(), Vector< Cmpt >::z(), polyMeshGen2DEngine::zMaxPoints(), and polyMeshGen2DEngine::zMinPoints().

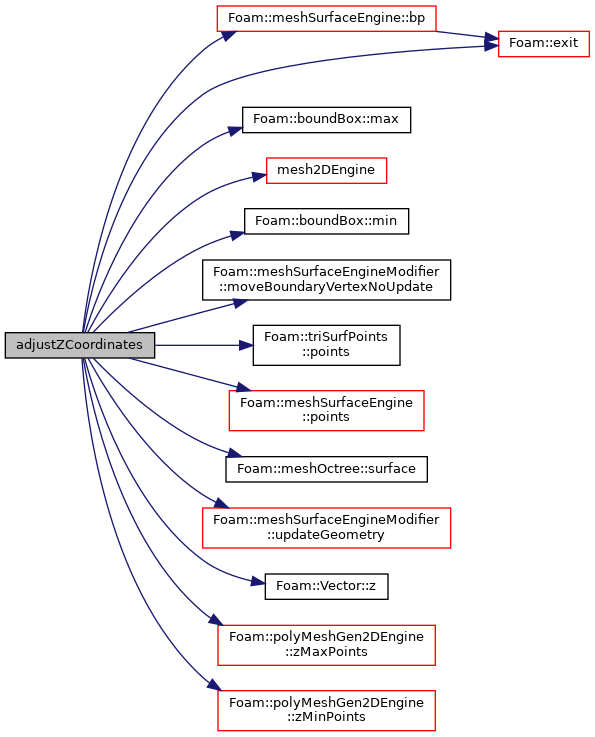

Referenced by cartesian2DMeshGenerator::mapMeshToSurface(), and meshSurfaceEdgeExtractor2D::remapBoundaryPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

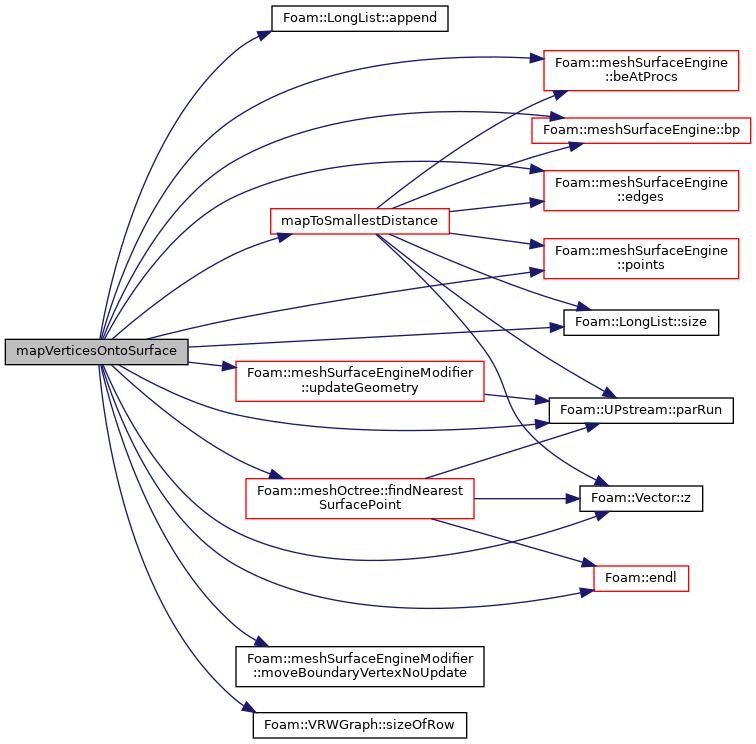

◆ mapVerticesOntoSurface() [1/2]

void mapVerticesOntoSurface ( )

projects surface vertices onto their nearest location on the surface mesh

Definition at line 262 of file meshSurfaceMapper2DMapVertices.C.

References meshSurfaceMapper2D::activeBoundaryEdges_, LongList< T, Offset >::append(), and forAll.

Referenced by cartesian2DMeshGenerator::mapMeshToSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapVerticesOntoSurface() [2/2]

void mapVerticesOntoSurface ( const labelLongList & edgesToMap )

projects selected edge to their nearest location on the surface mesh

Definition at line 272 of file meshSurfaceMapper2DMapVertices.C.

References LongList< T, Offset >::append(), meshSurfaceEngine::beAtProcs(), meshSurfaceEngine::bp(), Foam::e, meshSurfaceEngine::edges(), Foam::endl(), meshOctree::findNearestSurfacePoint(), forAll, Foam::Info, meshSurfaceMapper2D::mapToSmallestDistance(), meshSurfaceMapper2D::meshOctree_, meshSurfaceEngineModifier::moveBoundaryVertexNoUpdate(), Foam::nl, UPstream::parRun(), points, meshSurfaceEngine::points(), LongList< T, Offset >::size(), VRWGraph::sizeOfRow(), meshSurfaceMapper2D::surfaceEngine_, meshSurfaceEngineModifier::updateGeometry(), and Vector< Cmpt >::z().

Here is the call graph for this function:

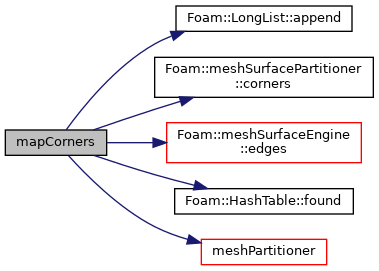

◆ mapCorners() [1/2]

void mapCorners ( )

projects edges with corners onto their nearest location on the surface mesh

Definition at line 354 of file meshSurfaceMapper2DMapVertices.C.

References meshSurfaceMapper2D::activeBoundaryEdges_, LongList< T, Offset >::append(), meshSurfacePartitioner::corners(), Foam::e, meshSurfaceEngine::edges(), forAll, HashTable::found(), meshSurfaceMapper2D::meshPartitioner(), and meshSurfaceMapper2D::surfaceEngine_.

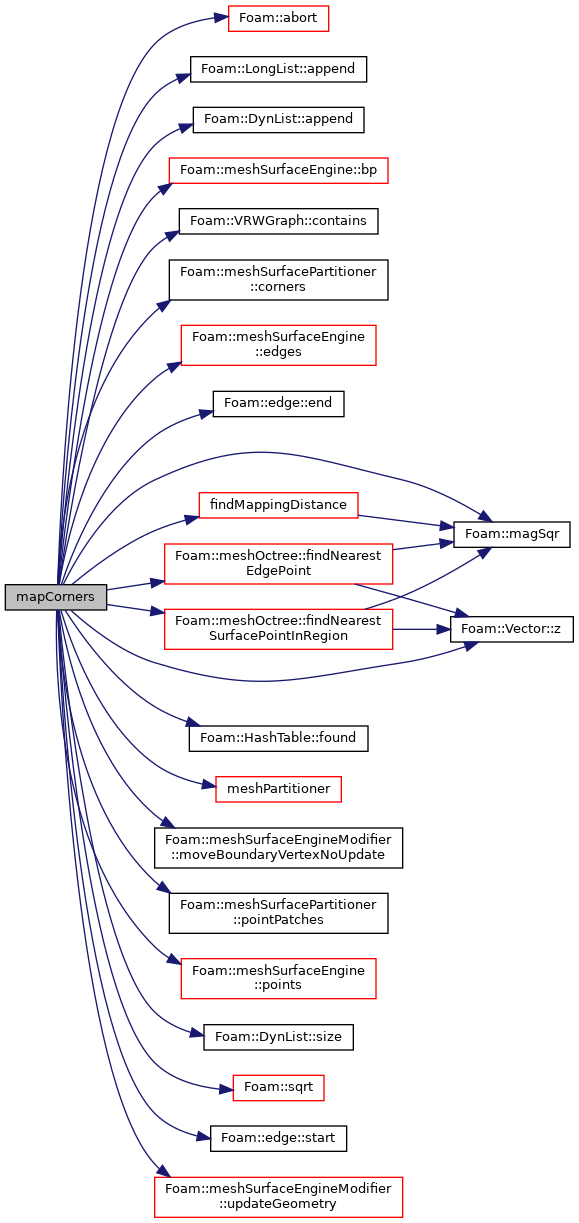

Here is the call graph for this function:

◆ mapCorners() [2/2]

void mapCorners ( const labelLongList & edgesToMap )

projects selected edges with corners onto their nearest locations on the surface mesh

for every corner in the mesh surface find the nearest corner in the triSurface

find the nearest position to the given point patches

find the nearest triSurface corner for the given corner

move the point to the nearest corner

Definition at line 373 of file meshSurfaceMapper2DMapVertices.C.

References Foam::abort(), LongList< T, Offset >::append(), DynList< T, staticSize >::append(), meshSurfaceEngine::bp(), VRWGraph::contains(), meshSurfacePartitioner::corners(), Foam::e, meshSurfaceEngine::edges(), edge::end(), Foam::FatalError, FatalErrorIn, meshSurfaceMapper2D::findMappingDistance(), meshOctree::findNearestEdgePoint(), meshOctree::findNearestSurfacePointInRegion(), forAll, forAllRow, HashTable::found(), Foam::magSqr(), meshSurfaceMapper2D::meshOctree_, meshSurfaceMapper2D::meshPartitioner(), meshSurfaceEngineModifier::moveBoundaryVertexNoUpdate(), p, meshSurfacePartitioner::pointPatches(), points, meshSurfaceEngine::points(), DynList< T, staticSize >::size(), Foam::sqrt(), edge::start(), meshSurfaceMapper2D::surfaceEngine_, meshSurfaceEngineModifier::updateGeometry(), Vector< Cmpt >::z(), and Vector< scalar >::zero.

Here is the call graph for this function:

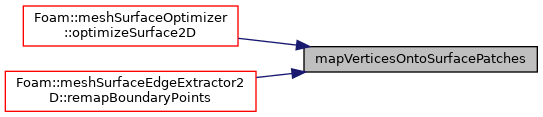

◆ mapVerticesOntoSurfacePatches() [1/2]

void mapVerticesOntoSurfacePatches ( )

projects surface edges onto the surface with respect to the surface patch they belong to. Corners are respected

Definition at line 490 of file meshSurfaceMapper2DMapVertices.C.

References meshSurfaceMapper2D::activeBoundaryEdges_, LongList< T, Offset >::append(), and forAll.

Referenced by meshSurfaceOptimizer::optimizeSurface2D(), and meshSurfaceEdgeExtractor2D::remapBoundaryPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapVerticesOntoSurfacePatches() [2/2]

void mapVerticesOntoSurfacePatches ( const labelLongList & edgesToMap )

projects selected surface edges onto the surface with respect to the surface patch they belong to. Corners are respected

map the selected edges on their patches

update geometry at moved vertices

Definition at line 501 of file meshSurfaceMapper2DMapVertices.C.

References LongList< T, Offset >::append(), LongList< T, Offset >::clear(), Foam::e, Foam::endl(), forAll, Foam::Info, meshSurfaceEngineModifier::moveBoundaryVertexNoUpdate(), p, UPstream::parRun(), points, LongList< T, Offset >::size(), VRWGraph::sizeOfRow(), meshSurfaceEngineModifier::updateGeometry(), and Vector< Cmpt >::z().

Here is the call graph for this function:

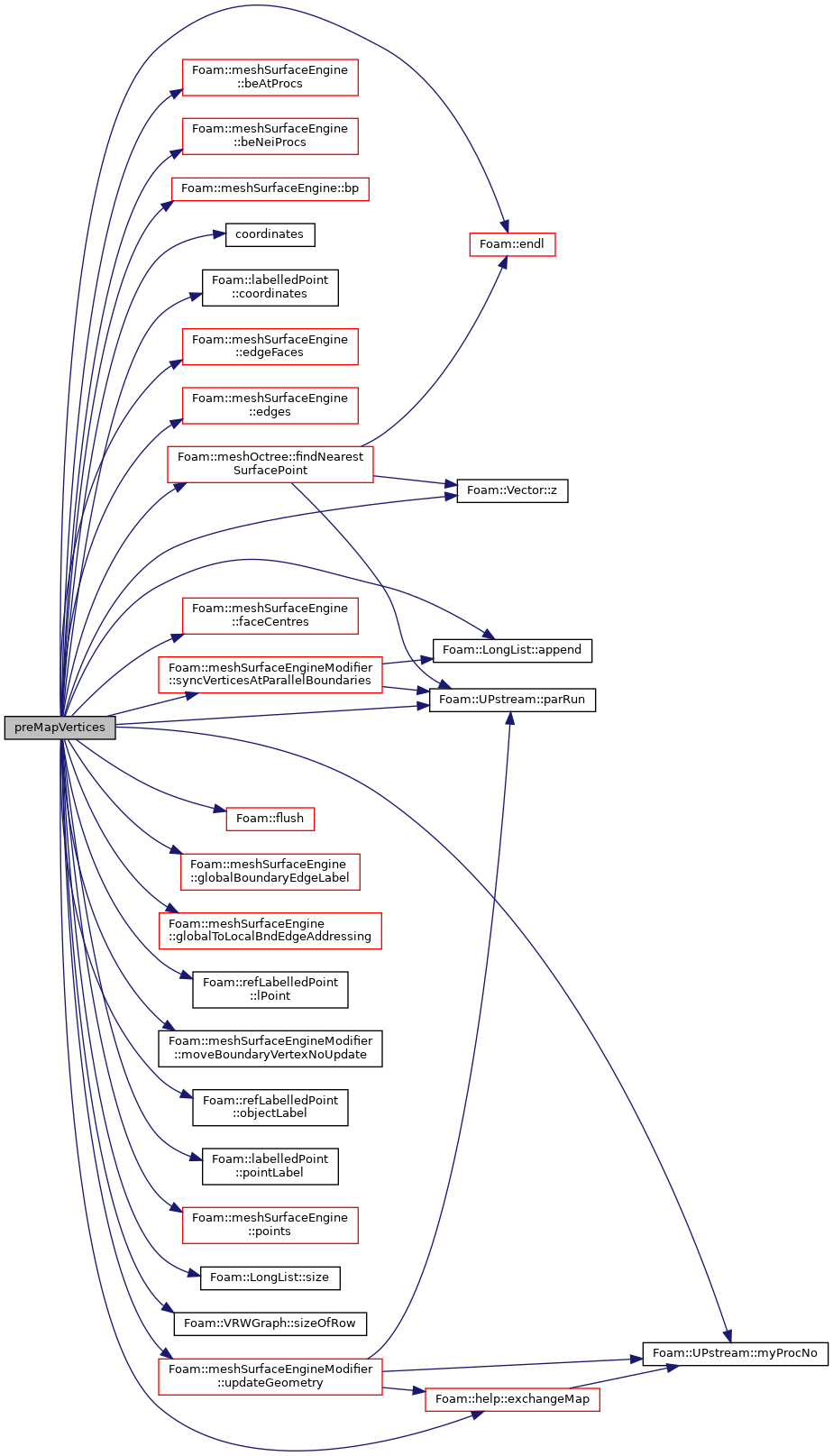

◆ preMapVertices()

void preMapVertices ( const label nIterations = 2 )

a combination of mapping and smoothing intended for better feature capturing

use the shrinking laplace first

store the information

collect data to be sent to other processors

exchange data with other processors

combine collected data with the available data

calculate coordinates of points for searching

create the surface modifier and move the surface points

Definition at line 49 of file meshSurfaceMapper2DPremapVertices.C.

Referenced by cartesian2DMeshGenerator::mapMeshToSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ surfaceEngine_

const meshSurfaceEngine& surfaceEngine_

private

reference to mesh surface

Definition at line 66 of file meshSurfaceMapper2D.H.

Referenced by meshSurfaceMapper2D::adjustZCoordinates(), meshSurfaceMapper2D::create2DEngine(), meshSurfaceMapper2D::createMeshSurfacePartitioner(), meshSurfaceMapper2D::findActiveBoundaryEdges(), meshSurfaceMapper2D::mapCorners(), meshSurfaceMapper2D::mapToSmallestDistance(), meshSurfaceMapper2D::mapVerticesOntoSurface(), and meshSurfaceMapper2D::preMapVertices().

◆ meshOctree_

const meshOctree& meshOctree_

private

reference to the octree

Definition at line 69 of file meshSurfaceMapper2D.H.

Referenced by meshSurfaceMapper2D::adjustZCoordinates(), meshSurfaceMapper2D::createTriSurfacePartitioner(), meshSurfaceMapper2D::mapCorners(), meshSurfaceMapper2D::mapVerticesOntoSurface(), and meshSurfaceMapper2D::preMapVertices().

◆ mesh2DEnginePtr_

polyMeshGen2DEngine* mesh2DEnginePtr_

mutableprivate

mesh 2D engine

Definition at line 72 of file meshSurfaceMapper2D.H.

Referenced by meshSurfaceMapper2D::clearOut(), meshSurfaceMapper2D::create2DEngine(), and meshSurfaceMapper2D::mesh2DEngine().

◆ surfPartitionerPtr_

triSurfacePartitioner* surfPartitionerPtr_

mutableprivate

triSurface partitioner

Definition at line 75 of file meshSurfaceMapper2D.H.

Referenced by meshSurfaceMapper2D::clearOut(), meshSurfaceMapper2D::createTriSurfacePartitioner(), and meshSurfaceMapper2D::surfacePartitioner().

◆ meshPartitionerPtr_

meshSurfacePartitioner* meshPartitionerPtr_

mutableprivate

mesh surface partitioner

Definition at line 78 of file meshSurfaceMapper2D.H.

Referenced by meshSurfaceMapper2D::clearOut(), meshSurfaceMapper2D::createMeshSurfacePartitioner(), and meshSurfaceMapper2D::meshPartitioner().

◆ activeBoundaryEdges_

labelLongList activeBoundaryEdges_

private

labels of edges which are at the boundary which shall be mapped onto the surface

Definition at line 82 of file meshSurfaceMapper2D.H.

Referenced by meshSurfaceMapper2D::findActiveBoundaryEdges(), meshSurfaceMapper2D::mapCorners(), meshSurfaceMapper2D::mapVerticesOntoSurface(), meshSurfaceMapper2D::mapVerticesOntoSurfacePatches(), and meshSurfaceMapper2D::preMapVertices().

The documentation for this class was generated from the following files:

applications/extra/cfMesh-v1.1.2/meshLibrary/utilities/surfaceTools/meshSurfaceMapper2D/meshSurfaceMapper2D.H
applications/extra/cfMesh-v1.1.2/meshLibrary/utilities/surfaceTools/meshSurfaceMapper2D/meshSurfaceMapper2D.C
applications/extra/cfMesh-v1.1.2/meshLibrary/utilities/surfaceTools/meshSurfaceMapper2D/meshSurfaceMapper2DMapVertices.C
applications/extra/cfMesh-v1.1.2/meshLibrary/utilities/surfaceTools/meshSurfaceMapper2D/meshSurfaceMapper2DPremapVertices.C

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ meshSurfaceMapper2D() [1/2]

◆ meshSurfaceMapper2D() [2/2]

◆ ~meshSurfaceMapper2D()

Member Function Documentation

◆ findActiveBoundaryEdges()

◆ create2DEngine()

◆ mesh2DEngine()

◆ createTriSurfacePartitioner()

◆ surfacePartitioner()

◆ createMeshSurfacePartitioner()

◆ meshPartitioner()

◆ clearOut()

◆ findMappingDistance()

◆ mapToSmallestDistance()

◆ operator=()

◆ adjustZCoordinates()

◆ mapVerticesOntoSurface() [1/2]

◆ mapVerticesOntoSurface() [2/2]

◆ mapCorners() [1/2]

◆ mapCorners() [2/2]

◆ mapVerticesOntoSurfacePatches() [1/2]

◆ mapVerticesOntoSurfacePatches() [2/2]

◆ preMapVertices()

Field Documentation

◆ surfaceEngine_

◆ meshOctree_

◆ mesh2DEnginePtr_

◆ surfPartitionerPtr_

◆ meshPartitionerPtr_

◆ activeBoundaryEdges_
