turbulentHeatFluxTemperatureFvPatchScalarField Class Reference

Fixed heat boundary condition to specify temperature gradient. Input heat source either specified in terms of an absolute power [W], or as a flux [W/m^2]. More...

Inheritance diagram for turbulentHeatFluxTemperatureFvPatchScalarField:

Collaboration diagram for turbulentHeatFluxTemperatureFvPatchScalarField:

Public Types
enum	heatSourceType { hsPower, hsFlux, hsPower, hsFlux }
	Enumeration listing the possible hest source input modes. More...
enum	heatSourceType { hsPower, hsFlux, hsPower, hsFlux }
	Enumeration listing the possible hest source input modes. More...

Public Member Functions
	TypeName ("turbulentHeatFluxTemperature")
	Runtime type information. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const turbulentHeatFluxTemperatureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const turbulentHeatFluxTemperatureFvPatchScalarField &)
	Construct as copy. More...
virtual tmp< fvPatchScalarField >	clone () const
	Construct and return a clone. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const turbulentHeatFluxTemperatureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference. More...
virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Construct and return a clone setting internal field reference. More...
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object. More...
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField. More...
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field. More...
virtual void	write (Ostream &) const
	Write. More...
	TypeName ("turbulentHeatFluxTemperature")
	Runtime type information. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const turbulentHeatFluxTemperatureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const turbulentHeatFluxTemperatureFvPatchScalarField &)
	Construct as copy. More...
virtual tmp< fvPatchScalarField >	clone () const
	Construct and return a clone. More...
	turbulentHeatFluxTemperatureFvPatchScalarField (const turbulentHeatFluxTemperatureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference. More...
virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Construct and return a clone setting internal field reference. More...
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object. More...
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField. More...
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field. More...
virtual void	write (Ostream &) const
	Write. More...

Private Attributes
heatSourceType	heatSource_
	Heat source type. More...
scalarField	q_
	Heat power [W] or flux [W/m2]. More...
word	QrName_
	Name of radiative in flux field. More...
word	alphaEffName_
	Name of effective thermal diffusivity field. More...

Static Private Attributes
static const NamedEnum< heatSourceType, 2 >	heatSourceTypeNames_
	Heat source type names. More...

Detailed Description

Fixed heat boundary condition to specify temperature gradient. Input heat source either specified in terms of an absolute power [W], or as a flux [W/m^2].

Fixed heat boundary condition to specify temperature gradient. Input heat source either specified in terms of an absolute power [W], or as a flux [W/m^2].
Patch usage

Patch usage

Property	Description	Required	Default value
heatSource	'power' [W] or 'flux' [W/m^2]	yes
q	heat power or flux field	yes
Qr	name of the radiative flux field	no	none
value	initial temperature value	no	calculated
gradient	initial gradient value	no	0.0

Example of the boundary condition specification:

    myPatch
    {
        type            incompressible::turbulentHeatFluxTemperature;
        heatSource      flux;
        q               uniform 10;
        value           uniform 300; // place holder
    }

Note

• The units of alphaEff are [kg/m/s]
• The density and specific heat capacity rho, Cp (units [kg/m^3], [J/kg/K]) are read from the transport dictionary entry

Source files

• turbulentHeatFluxTemperatureFvPatchScalarField.H
• turbulentHeatFluxTemperatureFvPatchScalarField.C

Property	Description	Required	Default value
heatSource	heat source type: flux [W/m^2] or power [W]	yes
q	heat source value	yes
alphaEff	turbulent thermal diffusivity field name	yes

Example of the boundary condition specification:

    myPatch
    {
        type            turbulentHeatFluxTemperature;
        heatSource      flux;
        q               uniform 10;
        alphaEff        alphaEff;
        value           uniform 300; // place holder
    }

Note

• The units of alphaEff are [kg/m/s]
• The density*specific heat capacity rhoCp0 (units [kg/m^3]*[J/kg/K]) is read from the transport dictionary entry

Source files

• bak_turbulentHeatFluxTemperatureFvPatchScalarField.H
• turbulentHeatFluxTemperatureFvPatchScalarField.C

Definition at line 114 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

Member Enumeration Documentation

heatSourceType [1/2]

enum heatSourceType

Enumeration listing the possible hest source input modes.

Enumerator
hsPower
hsFlux
hsPower
hsFlux

Definition at line 123 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

heatSourceType [2/2]

enum heatSourceType

Enumeration listing the possible hest source input modes.

Enumerator
hsPower
hsFlux
hsPower
hsFlux

Definition at line 100 of file bak_turbulentHeatFluxTemperatureFvPatchScalarField.H.

Constructor & Destructor Documentation

turbulentHeatFluxTemperatureFvPatchScalarField() [1/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Construct from patch and internal field.

Definition at line 74 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

Referenced by turbulentHeatFluxTemperatureFvPatchScalarField::clone().

Here is the caller graph for this function:

turbulentHeatFluxTemperatureFvPatchScalarField() [2/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Construct from patch, internal field and dictionary.

Definition at line 104 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

References dict, dictionary::found(), fvPatchField::operator=(), and p.

Here is the call graph for this function:

turbulentHeatFluxTemperatureFvPatchScalarField() [3/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const turbulentHeatFluxTemperatureFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Construct by mapping given.

turbulentHeatFluxTemperatureFvPatchScalarField onto a new patch

Definition at line 88 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

turbulentHeatFluxTemperatureFvPatchScalarField() [4/10]

turbulentHeatFluxTemperatureFvPatchScalarField

(

const turbulentHeatFluxTemperatureFvPatchScalarField &

thftpsf

)

Construct as copy.

Definition at line 130 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

turbulentHeatFluxTemperatureFvPatchScalarField() [5/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const turbulentHeatFluxTemperatureFvPatchScalarField &	thftpsf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Construct as copy setting internal field reference.

Definition at line 143 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

turbulentHeatFluxTemperatureFvPatchScalarField() [6/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const fvPatch &	,
		const DimensionedField< scalar, volMesh > &
	)

Construct from patch and internal field.

turbulentHeatFluxTemperatureFvPatchScalarField() [7/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const fvPatch &	,
		const DimensionedField< scalar, volMesh > &	,
		const dictionary &
	)

Construct from patch, internal field and dictionary.

turbulentHeatFluxTemperatureFvPatchScalarField() [8/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const turbulentHeatFluxTemperatureFvPatchScalarField &	,
		const fvPatch &	,
		const DimensionedField< scalar, volMesh > &	,
		const fvPatchFieldMapper &
	)

Construct by mapping given.

turbulentHeatFluxTemperatureFvPatchScalarField onto a new patch

turbulentHeatFluxTemperatureFvPatchScalarField() [9/10]

turbulentHeatFluxTemperatureFvPatchScalarField

(

const turbulentHeatFluxTemperatureFvPatchScalarField &

)

Construct as copy.

turbulentHeatFluxTemperatureFvPatchScalarField() [10/10]

turbulentHeatFluxTemperatureFvPatchScalarField	(	const turbulentHeatFluxTemperatureFvPatchScalarField &	,
		const DimensionedField< scalar, volMesh > &
	)

Construct as copy setting internal field reference.

Member Function Documentation

TypeName() [1/2]

TypeName

(

"turbulentHeatFluxTemperature"

)

Runtime type information.

clone() [1/4]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Construct and return a clone.

Definition at line 188 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

References turbulentHeatFluxTemperatureFvPatchScalarField::turbulentHeatFluxTemperatureFvPatchScalarField().

Here is the call graph for this function:

clone() [2/4]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > &  iF ) const

inlinevirtual

Construct and return a clone setting internal field reference.

Definition at line 205 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

autoMap() [1/2]

void autoMap ( const fvPatchFieldMapper &  m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 158 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

rmap() [1/2]

void rmap ( const fvPatchScalarField &  ptf, const labelList &  addr  )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 168 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

References turbulentHeatFluxTemperatureFvPatchScalarField::q_.

updateCoeffs() [1/2]

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Qr is negative going into the domain

Definition at line 185 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

References alphat, GeometricField::boundaryField(), dimensionedInternalField(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::constant::atomic::group, IOobject::groupName(), Foam::gSum(), turbulentHeatFluxTemperatureFvPatchScalarField::heatSource_, turbulentHeatFluxTemperatureFvPatchScalarField::heatSourceTypeNames_, turbulentHeatFluxTemperatureFvPatchScalarField::hsFlux, turbulentHeatFluxTemperatureFvPatchScalarField::hsPower, dictionary::lookup(), Foam::nl, nu, Pr(), turbulenceModel::propertiesName, turbulentHeatFluxTemperatureFvPatchScalarField::q_, turbulentHeatFluxTemperatureFvPatchScalarField::QrName_, rho, and dimensioned::value().

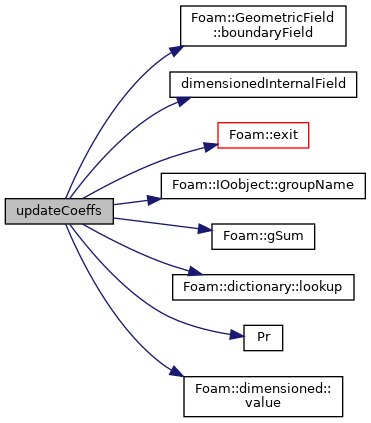

Here is the call graph for this function:

write() [1/2]

void write ( Ostream &  os ) const

virtual

Write.

Definition at line 252 of file turbulentHeatFluxTemperatureFvPatchScalarField.C.

References token::END_STATEMENT, turbulentHeatFluxTemperatureFvPatchScalarField::heatSource_, turbulentHeatFluxTemperatureFvPatchScalarField::heatSourceTypeNames_, Foam::nl, turbulentHeatFluxTemperatureFvPatchScalarField::q_, turbulentHeatFluxTemperatureFvPatchScalarField::QrName_, write(), Field::writeEntry(), and Ostream::writeKeyword().

Here is the call graph for this function:

TypeName() [2/2]

TypeName

(

"turbulentHeatFluxTemperature"

)

Runtime type information.

clone() [3/4]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Construct and return a clone.

Definition at line 165 of file bak_turbulentHeatFluxTemperatureFvPatchScalarField.H.

References turbulentHeatFluxTemperatureFvPatchScalarField::turbulentHeatFluxTemperatureFvPatchScalarField().

Here is the call graph for this function:

clone() [4/4]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > &  iF ) const

inlinevirtual

Construct and return a clone setting internal field reference.

Definition at line 182 of file bak_turbulentHeatFluxTemperatureFvPatchScalarField.H.

autoMap() [2/2]

virtual void autoMap ( const fvPatchFieldMapper &  )

virtual

Map (and resize as needed) from self given a mapping object.

rmap() [2/2]

virtual void rmap ( const fvPatchScalarField &  , const labelList &    )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

updateCoeffs() [2/2]

virtual void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

write() [2/2]

virtual void write ( Ostream &  ) const

virtual

Write.

Field Documentation

heatSourceTypeNames_

static const NamedEnum< heatSourceType, 2 > heatSourceTypeNames_

staticprivate

Heat source type names.

Definition at line 135 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

Referenced by turbulentHeatFluxTemperatureFvPatchScalarField::updateCoeffs(), and turbulentHeatFluxTemperatureFvPatchScalarField::write().

heatSource_

heatSourceType heatSource_

private

Heat source type.

Definition at line 138 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

Referenced by turbulentHeatFluxTemperatureFvPatchScalarField::updateCoeffs(), and turbulentHeatFluxTemperatureFvPatchScalarField::write().

q_

scalarField q_

private

Heat power [W] or flux [W/m2].

Definition at line 141 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

Referenced by turbulentHeatFluxTemperatureFvPatchScalarField::rmap(), turbulentHeatFluxTemperatureFvPatchScalarField::updateCoeffs(), and turbulentHeatFluxTemperatureFvPatchScalarField::write().

QrName_

word QrName_

private

Name of radiative in flux field.

Definition at line 144 of file turbulentHeatFluxTemperatureFvPatchScalarField.H.

Referenced by turbulentHeatFluxTemperatureFvPatchScalarField::updateCoeffs(), and turbulentHeatFluxTemperatureFvPatchScalarField::write().

alphaEffName_

word alphaEffName_

private

Name of effective thermal diffusivity field.

Definition at line 121 of file bak_turbulentHeatFluxTemperatureFvPatchScalarField.H.

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/incompressible/turbulentTransportModels/derivedFvPatchFields/turbulentHeatFluxTemperature/turbulentHeatFluxTemperatureFvPatchScalarField.H
• applications/DIYApp/indoorFoam/bak_turbulentHeatFluxTemperatureFvPatchScalarField.H
• src/TurbulenceModels/incompressible/turbulentTransportModels/derivedFvPatchFields/turbulentHeatFluxTemperature/turbulentHeatFluxTemperatureFvPatchScalarField.C
• applications/DIYApp/indoorFoam/bak_turbulentHeatFluxTemperatureFvPatchScalarField.C
