This source is designed to model the effect of solidification and melting processes, e.g. windhield defrosting. The phase change occurs at the melting temperature, Tmelt. More...

Inheritance diagram for solidificationMeltingSource:

[legend]

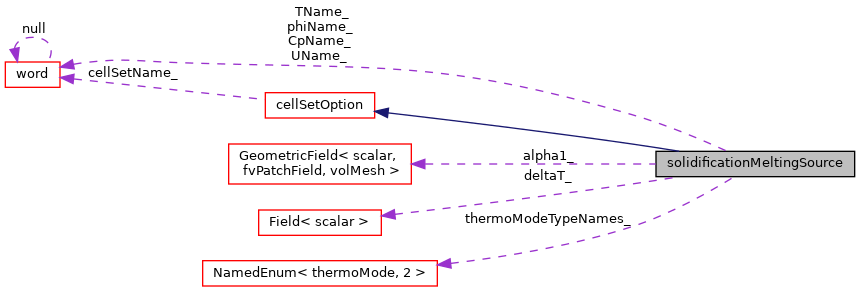

Collaboration diagram for solidificationMeltingSource:

[legend]

Public Types
enum	thermoMode { mdThermo, mdLookup }

Public Types inherited from cellSetOption
enum	selectionModeType { smPoints, smCellSet, smCellZone, smAll }
	Enumeration for selection mode types. More...

Public Member Functions
	TypeName ("solidificationMeltingSource")
	Runtime type information. More...

	solidificationMeltingSource (const word &sourceName, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from explicit source name and mesh. More...

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldI)
	Add explicit contribution to enthalpy equation. More...

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldI)
	Add implicit contribution to momentum equation. More...

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldI)
	Add explicit contribution to compressible enthalpy equation. More...

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldI)
	Add implicit contribution to compressible momentum equation. More...

virtual bool	read (const dictionary &dict)
	Read source dictionary. More...

Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")
	Runtime type information. More...

	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components. More...

virtual	~cellSetOption ()
	Destructor. More...

scalar	timeStart () const
	Return const access to the time start. More...

scalar	duration () const
	Return const access to the duration. More...

bool	inTimeLimits (const scalar time) const
	Return true if within time limits. More...

const selectionModeType &	selectionMode () const
	Return const access to the cell selection mode. More...

const word &	cellSetName () const
	Return const access to the name of cell set for "cellSet". More...

scalar	V () const
	Return const access to the total cell volume. More...

const labelList &	cells () const
	Return const access to the cell set. More...

scalar &	timeStart ()
	Return access to the time start. More...

scalar &	duration ()
	Return access to the duration. More...

virtual bool	isActive ()
	Is the source active? More...

Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components. More...

autoPtr< option >	clone () const
	Return clone. More...

virtual	~option ()
	Destructor. More...

const word &	name () const
	Return const access to the source name. More...

const fvMesh &	mesh () const
	Return const access to the mesh database. More...

const dictionary &	coeffs () const
	Return dictionary. More...

bool	active () const
	Return const access to the source active flag. More...

void	setApplied (const label fieldI)
	Set the applied flag to true for field index fieldI. More...

Switch &	active ()
	Return access to the source active flag. More...

virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list. More...

virtual void	checkApplied () const
	Check that the source has been applied. More...

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldI)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldI)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldI)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldI)

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldI)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldI)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldI)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldI)

virtual void	correct (volScalarField &field)

virtual void	correct (volVectorField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	writeHeader (Ostream &) const
	Write the source header information. More...

virtual void	writeFooter (Ostream &) const
	Write the source footer information. More...

virtual void	writeData (Ostream &) const
	Write the source properties. More...

Static Public Attributes
static const NamedEnum< thermoMode, 2 >	thermoModeTypeNames_

Static Public Attributes inherited from cellSetOption
static const NamedEnum< selectionModeType, 4 >	selectionModeTypeNames_
	Word list of selection mode type names. More...

Private Member Functions
tmp< volScalarField >	Cp () const
	Return the specific heat capacity field. More...

vector	g () const
	Return the gravity vector. More...

void	update (const volScalarField &Cp)
	Update the model. More...

template<class RhoFieldType >
void	apply (const RhoFieldType &rho, fvMatrix< scalar > &eqn)
	Helper function to apply to the energy equation. More...

	solidificationMeltingSource (const solidificationMeltingSource &)
	Disallow default bitwise copy construct. More...

void	operator= (const solidificationMeltingSource &)
	Disallow default bitwise assignment. More...

Private Attributes
scalar	Tmelt_
	Temperature at which melting occurs [K]. More...

scalar	L_
	Latent heat of fusion [J/kg]. More...

scalar	relax_
	Phase fraction under-relaxation coefficient. More...

thermoMode	mode_
	Thermodynamics mode. More...

scalar	rhoRef_
	Reference density - typically the solid density. More...

word	TName_
	Name of temperature field - default = "T" (optional) More...

word	CpName_
	Name of specific heat capacity field - default = "Cp" (optional) More...

word	UName_
	Name of velocity field - default = "U" (optional) More...

word	phiName_
	Name of flux field - default = "phi" (optional) More...

scalar	Cu_
	Mushy region momentum sink coefficient [1/s]; default = 10^5. More...

scalar	q_
	Coefficient used in porosity calc - default = 0.001. More...

scalar	beta_
	Thermal expansion coefficient [1/K]. More...

volScalarField	alpha1_
	Phase fraction indicator field. More...

label	curTimeIndex_
	Current time index (used for updating) More...

scalarField	deltaT_
	Temperature change cached for source calculation when alpha1 updated. More...

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model. More...

Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)
	Set the cellSet or points selection. More...

void	setCellSet ()
	Set the cell set based on the user input selection mode. More...

Protected Attributes inherited from cellSetOption
scalar	timeStart_
	Time start. More...

scalar	duration_
	Duration. More...

selectionModeType	selectionMode_
	Cell selection mode. More...

word	cellSetName_
	Name of cell set for "cellSet" and "cellZone" selectionMode. More...

List< point >	points_
	List of points for "points" selectionMode. More...

labelList	cells_
	Set of cells to apply source to. More...

scalar	V_
	Sum of cell volumes. More...

Protected Attributes inherited from option
const word	name_
	Source name. More...

const word	modelType_
	Model type. More...

const fvMesh &	mesh_
	Reference to the mesh database. More...

dictionary	dict_
	Top level source dictionary. More...

dictionary	coeffs_
	Dictionary containing source coefficients. More...

Switch	active_
	Source active flag. More...

wordList	fieldNames_
	Field names to apply source to - populated by derived models. More...

List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry. More...

Detailed Description

This source is designed to model the effect of solidification and melting processes, e.g. windhield defrosting. The phase change occurs at the melting temperature, Tmelt.

The presence of the solid phase in the flow field is incorporated into the model as a momentum porosity contribution; the energy associated with the phase change is added as an enthalpy contribution.

Based on the references:

V.R. Voller and C. Prakash, A fixed grid numerical modelling methodology for convection-diffusion mushy phase-change problems, Int. J. Heat Mass Transfer 30(8):17091719, 1987.
C.R. Swaminathan. and V.R. Voller, A general enthalpy model for modeling solidification processes, Metallurgical Transactions 23B:651664, 1992.

The model generates a field <name>:alpha1 which can be visualised to to show the melt distribution as a fraction [0-1]

Source usage
Example usage:

solidificationMeltingSource1
{
    type            solidificationMeltingSource;
    active          yes;

    solidificationMeltingSourceCoeffs
    {
        selectionMode   cellZone;
        cellZone        iceZone;

        Tmelt           273;
        L               334000;
        thermoMode      thermo;
        beta            50e-6;
        rhoRef          800;
    }
}

Where:

Property	Description	Required	Default value
`Tmelt`	Melting temperature [K]	yes
`L`	Latent heat of fusion [J/kg]	yes
`relax`	Relaxation coefficient [0-1]	no	0.9
`thermoMode`	Thermo mode [thermo	lookup]	yes
`rhoRef`	Reference (solid) density	yes
`rhoName`	Name of density field	no	rho
`TName`	Name of temperature field	no	T
`CpName`	Name of specific heat capacity field	no	Cp
`UName`	Name of velocity field	no	U
`phiName`	Name of flux field	no	phi
`Cu`	Model coefficient	no	100000
`q`	Model coefficient	no	0.001
`beta`	Thermal expansion coefficient [1/K]	yes
`g`	Accelerartion due to gravity	no

Source files

Definition at line 188 of file solidificationMeltingSource.H.

Member Enumeration Documentation

◆ thermoMode

enum thermoMode

Enumerator
mdThermo
mdLookup

Definition at line 194 of file solidificationMeltingSource.H.

Constructor & Destructor Documentation

◆ solidificationMeltingSource() [1/2]

solidificationMeltingSource ( const solidificationMeltingSource & )

private

Disallow default bitwise copy construct.

◆ solidificationMeltingSource() [2/2]

solidificationMeltingSource	(	const word &	sourceName,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Construct from explicit source name and mesh.

Definition at line 182 of file solidificationMeltingSource.C.

References Foam::abort(), basicThermo::dictName, Foam::FatalError, and FatalErrorInFunction.

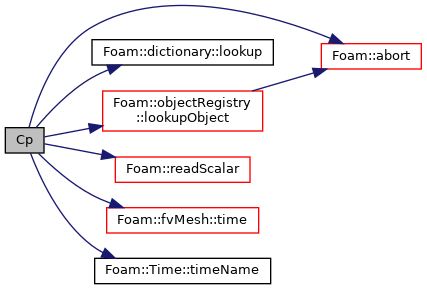

Here is the call graph for this function:

Member Function Documentation

◆ Cp()

Foam::tmp< Foam::volScalarField > Cp ( ) const

private

Return the specific heat capacity field.

Definition at line 69 of file solidificationMeltingSource.C.

References Foam::abort(), option::coeffs_, solidificationMeltingSource::CpName_, basicThermo::dictName, Foam::dimEnergy, Foam::dimMass, Foam::dimTemperature, Foam::FatalError, FatalErrorInFunction, dictionary::lookup(), objectRegistry::lookupObject(), solidificationMeltingSource::mdLookup, solidificationMeltingSource::mdThermo, option::mesh_, solidificationMeltingSource::mode_, option::name_, IOobject::NO_READ, IOobject::NO_WRITE, Foam::readScalar(), solidificationMeltingSource::thermoModeTypeNames_, fvMesh::time(), and Time::timeName().

Here is the call graph for this function:

◆ g()

Foam::vector g ( ) const

private

Return the gravity vector.

Definition at line 129 of file solidificationMeltingSource.C.

References dimensioned::value().

Here is the call graph for this function:

◆ update()

void update ( const volScalarField & Cp )

private

Update the model.

Definition at line 144 of file solidificationMeltingSource.C.

References Foam::endl(), forAll, Foam::Info, Foam::max(), Foam::min(), Foam::T(), and Foam::type().

Here is the call graph for this function:

◆ apply()

void apply	(	const RhoFieldType &	rho,
		fvMatrix< scalar > &	eqn
	)

private

Helper function to apply to the energy equation.

Definition at line 33 of file solidificationMeltingSourceTemplates.C.

References Foam::fvc::ddt(), Foam::dimEnergy, Foam::dimMass, Foam::dimTemperature, Foam::endl(), Foam::Info, fvMatrix::psi(), rho, and Foam::type().

Here is the call graph for this function:

◆ operator=()

void operator= ( const solidificationMeltingSource & )

private

Disallow default bitwise assignment.

◆ TypeName()

TypeName ( "solidificationMeltingSource" )

Runtime type information.

◆ addSup() [1/4]

void addSup	(	fvMatrix< scalar > &	eqn,
		const label	fieldI
	)

virtual

Add explicit contribution to enthalpy equation.

Reimplemented from option.

Definition at line 252 of file solidificationMeltingSource.C.

◆ addSup() [2/4]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Add implicit contribution to momentum equation.

Reimplemented from option.

Definition at line 273 of file solidificationMeltingSource.C.

References Foam::endl(), forAll, g, Foam::Info, Foam::pow3(), fvMatrix::psi(), fvMatrix::source(), Foam::fvc::Sp(), Foam::sqr(), Foam::fvc::Su(), and Foam::type().

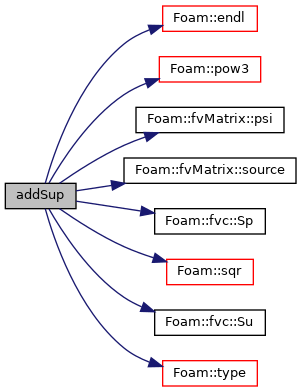

Here is the call graph for this function:

◆ addSup() [3/4]

void addSup	(	const volScalarField &	rho,
		fvMatrix< scalar > &	eqn,
		const label	fieldI
	)

virtual

Add explicit contribution to compressible enthalpy equation.

Reimplemented from option.

Definition at line 262 of file solidificationMeltingSource.C.

References rho.

◆ addSup() [4/4]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Add implicit contribution to compressible momentum equation.

Reimplemented from option.

Definition at line 310 of file solidificationMeltingSource.C.

◆ read()

bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented from cellSetOption.

Definition at line 30 of file solidificationMeltingSourceIO.C.

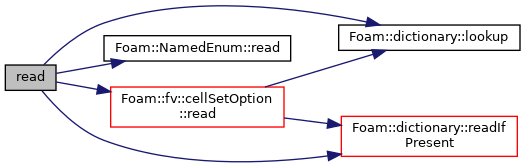

Here is the call graph for this function:

Field Documentation

◆ thermoModeTypeNames_

const Foam::NamedEnum< Foam::fv::solidificationMeltingSource::thermoMode, 2 > thermoModeTypeNames_

static

Definition at line 200 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::Cp(), and solidificationMeltingSource::read().

◆ Tmelt_

scalar Tmelt_

private

Temperature at which melting occurs [K].

Definition at line 208 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ L_

scalar L_

private

Latent heat of fusion [J/kg].

Definition at line 211 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ relax_

scalar relax_

private

Phase fraction under-relaxation coefficient.

Definition at line 214 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ mode_

thermoMode mode_

private

Thermodynamics mode.

Definition at line 217 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::Cp(), and solidificationMeltingSource::read().

◆ rhoRef_

scalar rhoRef_

private

Reference density - typically the solid density.

Definition at line 220 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ TName_

word TName_

private

Name of temperature field - default = "T" (optional)

Definition at line 223 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ CpName_

word CpName_

private

Name of specific heat capacity field - default = "Cp" (optional)

Definition at line 226 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::Cp().

◆ UName_

word UName_

private

Name of velocity field - default = "U" (optional)

Definition at line 229 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ phiName_

word phiName_

private

Name of flux field - default = "phi" (optional)

Definition at line 232 of file solidificationMeltingSource.H.

◆ Cu_

scalar Cu_

private

Mushy region momentum sink coefficient [1/s]; default = 10^5.

Definition at line 235 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ q_

scalar q_

private

Coefficient used in porosity calc - default = 0.001.

Definition at line 238 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ beta_

scalar beta_

private

Thermal expansion coefficient [1/K].

Definition at line 241 of file solidificationMeltingSource.H.

Referenced by solidificationMeltingSource::read().

◆ alpha1_

volScalarField alpha1_

private

Phase fraction indicator field.

Definition at line 244 of file solidificationMeltingSource.H.

◆ curTimeIndex_

label curTimeIndex_

private

Current time index (used for updating)

Definition at line 247 of file solidificationMeltingSource.H.

◆ deltaT_

scalarField deltaT_

private

Temperature change cached for source calculation when alpha1 updated.

Definition at line 250 of file solidificationMeltingSource.H.

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/solidificationMeltingSource/solidificationMeltingSource.H
src/fvOptions/sources/derived/solidificationMeltingSource/solidificationMeltingSource.C
src/fvOptions/sources/derived/solidificationMeltingSource/solidificationMeltingSourceIO.C
src/fvOptions/sources/derived/solidificationMeltingSource/solidificationMeltingSourceTemplates.C

Public Types

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ thermoMode

Constructor & Destructor Documentation

◆ solidificationMeltingSource() [1/2]

◆ solidificationMeltingSource() [2/2]

Member Function Documentation

◆ Cp()

◆ g()

◆ update()

◆ apply()

◆ operator=()

◆ TypeName()

◆ addSup() [1/4]

◆ addSup() [2/4]

◆ addSup() [3/4]

◆ addSup() [4/4]

◆ read()

Field Documentation

◆ thermoModeTypeNames_

◆ Tmelt_

◆ L_

◆ relax_

◆ mode_

◆ rhoRef_

◆ TName_

◆ CpName_

◆ UName_

◆ phiName_

◆ Cu_

◆ q_

◆ beta_

◆ alpha1_

◆ curTimeIndex_

◆ deltaT_
