Quality-based under-relaxation wrapped around generic displacementMotionSolver. More...

Inheritance diagram for displacementMotionSolverMeshMover:

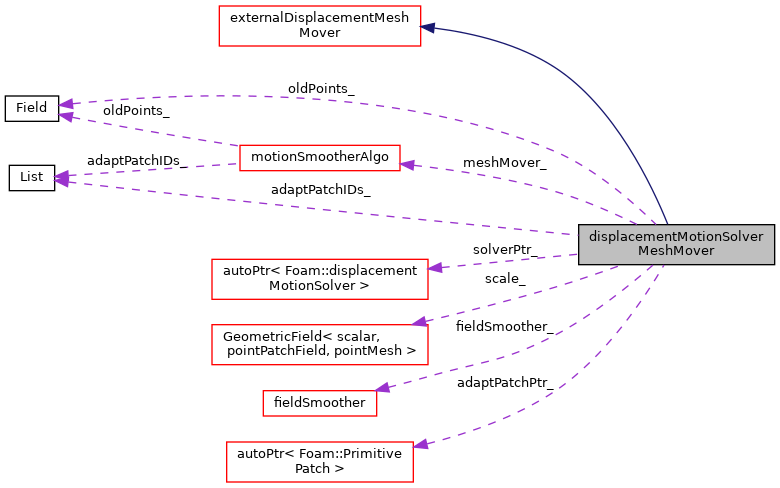

Collaboration diagram for displacementMotionSolverMeshMover:

[legend]

Public Member Functions
	TypeName ("displacementMotionSolver")
	Runtime type information. More...

	displacementMotionSolverMeshMover (const dictionary &dict, const List< labelPair > &baffles, pointVectorField &pointDisplacemen)
	Construct from a polyMesh and an IOdictionary. More...

virtual	~displacementMotionSolverMeshMover ()
	Destructor. More...

virtual bool	move (const dictionary &, const label nAllowableErrors, labelList &checkFaces)
	Move mesh using current pointDisplacement boundary values. More...

virtual void	movePoints (const pointField &)
	Update local data for geometry changes. More...

virtual void	updateMesh (const mapPolyMesh &)
	Update local data for topology changes. More...

Public Member Functions inherited from externalDisplacementMeshMover
	TypeName ("externalDisplacementMeshMover")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, externalDisplacementMeshMover, dictionary,(const dictionary &dict, const List< labelPair > &baffles, pointVectorField &pointDisplacement),(dict, baffles, pointDisplacement))

	externalDisplacementMeshMover (const dictionary &dict, const List< labelPair > &baffles, pointVectorField &pointDisplacement)
	Construct from dictionary and displacement field. Dictionary is. More...

virtual	~externalDisplacementMeshMover ()
	Destructor. More...

pointVectorField &	pointDisplacement ()
	Return reference to the point motion displacement field. More...

const pointVectorField &	pointDisplacement () const
	Return const reference to the point motion displacement field. More...

const pointMesh &	pMesh () const

const polyMesh &	mesh () const

Private Member Functions
bool	moveMesh (const dictionary &moveDict, const label nAllowableErrors, labelList &checkFaces)
	Apply the mesh mover algorithm. More...

Private Attributes
autoPtr< displacementMotionSolver >	solverPtr_
	Mesh motion solver. More...

const labelList	adaptPatchIDs_
	IDs of fixedValue patches that we can modify. More...

autoPtr< indirectPrimitivePatch >	adaptPatchPtr_
	Combined indirect fixedValue patches that we can modify. More...

pointScalarField	scale_
	Scale factor for displacemen. More...

pointField	oldPoints_
	Old point field. More...

motionSmootherAlgo	meshMover_
	Mesh mover algorithm. More...

fieldSmoother	fieldSmoother_
	Field smoothing. More...

Additional Inherited Members
Static Public Member Functions inherited from externalDisplacementMeshMover
static autoPtr< externalDisplacementMeshMover >	New (const word &type, const dictionary &dict, const List< labelPair > &baffles, pointVectorField &pointDisplacement)
	Return a reference to the selected meshMover model. More...

Static Protected Member Functions inherited from externalDisplacementMeshMover
static labelList	getFixedValueBCs (const pointVectorField &)
	Extract fixed-value patchfields. More...

static autoPtr< indirectPrimitivePatch >	getPatch (const polyMesh &, const labelList &)
	Construct patch on selected patches. More...

Protected Attributes inherited from externalDisplacementMeshMover
List< labelPair >	baffles_
	Baffles in the mesh. More...

pointVectorField &	pointDisplacement_
	Reference to point motion field. More...

Detailed Description

Quality-based under-relaxation wrapped around generic displacementMotionSolver.

Example of use in layer settings in snappyHexMeshDict:

meshShrinker displacementMotionSolver;
solver displacementLaplacian;
displacementLaplacianCoeffs
{
    diffusivity quadratic inverseDistance 1(wall);
}

Source files

Definition at line 62 of file displacementMotionSolverMeshMover.H.

Constructor & Destructor Documentation

◆ displacementMotionSolverMeshMover()

displacementMotionSolverMeshMover	(	const dictionary &	dict,
		const List< labelPair > &	baffles,
		pointVectorField &	pointDisplacemen
	)

Construct from a polyMesh and an IOdictionary.

Definition at line 109 of file displacementMotionSolverMeshMover.C.

◆ ~displacementMotionSolverMeshMover()

~displacementMotionSolverMeshMover ( )

virtual

Destructor.

Definition at line 190 of file displacementMotionSolverMeshMover.C.

Member Function Documentation

◆ moveMesh()

bool moveMesh	(	const dictionary &	moveDict,
		const label	nAllowableErrors,
		labelList &	checkFaces
	)

private

Apply the mesh mover algorithm.

Definition at line 48 of file displacementMotionSolverMeshMover.C.

References Foam::endl(), Foam::Info, dictionary::lookup(), and Foam::readLabel().

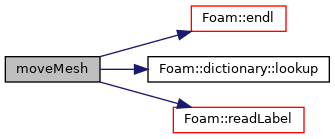

Here is the call graph for this function:

◆ TypeName()

TypeName ( "displacementMotionSolver" )

Runtime type information.

◆ move()

bool move	(	const dictionary &	moveDict,
		const label	nAllowableErrors,
		labelList &	checkFaces
	)

virtual

Move mesh using current pointDisplacement boundary values.

Return true if succesful (errors on checkFaces less than allowable). Updates pointDisplacement.

Implements externalDisplacementMeshMover.

Definition at line 197 of file displacementMotionSolverMeshMover.C.

References forAll, meshRefinement::getMasterEdges(), meshRefinement::getMasterPoints(), internalField(), dictionary::lookup(), objectRegistry::lookupObject(), Foam::mag(), mesh, nPoints, and Foam::readLabel().

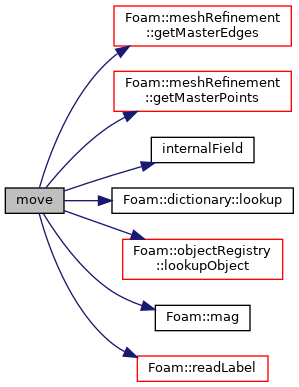

Here is the call graph for this function:

◆ movePoints()

void movePoints ( const pointField & p )

virtual

Update local data for geometry changes.

Reimplemented from externalDisplacementMeshMover.

Definition at line 298 of file displacementMotionSolverMeshMover.C.

References externalDisplacementMeshMover::movePoints(), and p.

Here is the call graph for this function:

◆ updateMesh()

virtual void updateMesh ( const mapPolyMesh & )

inlinevirtual

Update local data for topology changes.

Reimplemented from externalDisplacementMeshMover.

Definition at line 138 of file displacementMotionSolverMeshMover.H.

References NotImplemented.

Field Documentation

◆ solverPtr_

autoPtr<displacementMotionSolver> solverPtr_

private

Mesh motion solver.

Definition at line 69 of file displacementMotionSolverMeshMover.H.

◆ adaptPatchIDs_

const labelList adaptPatchIDs_

private

IDs of fixedValue patches that we can modify.

Definition at line 72 of file displacementMotionSolverMeshMover.H.

◆ adaptPatchPtr_

autoPtr<indirectPrimitivePatch> adaptPatchPtr_

private

Combined indirect fixedValue patches that we can modify.

Definition at line 75 of file displacementMotionSolverMeshMover.H.

◆ scale_

pointScalarField scale_

private

Scale factor for displacemen.

Definition at line 78 of file displacementMotionSolverMeshMover.H.

◆ oldPoints_

pointField oldPoints_

private

Old point field.

Definition at line 81 of file displacementMotionSolverMeshMover.H.

◆ meshMover_

motionSmootherAlgo meshMover_

private

Mesh mover algorithm.

Definition at line 84 of file displacementMotionSolverMeshMover.H.

◆ fieldSmoother_

fieldSmoother fieldSmoother_

private

Field smoothing.

Definition at line 87 of file displacementMotionSolverMeshMover.H.

The documentation for this class was generated from the following files:

src/mesh/autoMesh/autoHexMesh/externalDisplacementMeshMover/displacementMotionSolverMeshMover.H
src/mesh/autoMesh/autoHexMesh/externalDisplacementMeshMover/displacementMotionSolverMeshMover.C
