Cyclic plane patch. More...

Inheritance diagram for cyclicPolyPatch:

[legend]

Collaboration diagram for cyclicPolyPatch:

[legend]

Public Member Functions
	TypeName ("cyclic")
	Runtime type information. More...

	cyclicPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType, const transformType transform=UNKNOWN)
	Construct from components. More...

	cyclicPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &neighbPatchName, const transformType transform, const vector &rotationAxis, const point &rotationCentre, const vector &separationVector)
	Construct from components. More...

	cyclicPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from dictionary. More...

	cyclicPolyPatch (const cyclicPolyPatch &, const polyBoundaryMesh &)
	Construct as copy, resetting the boundary mesh. More...

	cyclicPolyPatch (const cyclicPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart, const word &neighbPatchName)
	Construct given the original patch and resetting the. More...

	cyclicPolyPatch (const cyclicPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map. More...

virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm) const
	Construct and return a clone, resetting the boundary mesh. More...

virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) const
	Construct and return a clone, resetting the face list. More...

virtual autoPtr< polyPatch >	clone (const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) const
	Construct and return a clone, resetting the face list. More...

virtual	~cyclicPolyPatch ()
	Destructor. More...

const word &	neighbPatchName () const
	Neighbour patch name. More...

virtual label	neighbPatchID () const
	Neighbour patchID. More...

virtual bool	owner () const
	Does this side own the patch ? More...

virtual bool	neighbour () const
	Does the coupled side own the patch ? More...

const cyclicPolyPatch &	neighbPatch () const

const edgeList &	coupledPoints () const
	Return connected points (from patch local to neighbour patch local) More...

const edgeList &	coupledEdges () const
	Return connected edges (from patch local to neighbour patch local). More...

virtual void	transformPosition (pointField &l) const
	Transform a patch-based position from other side to this side. More...

virtual void	transformPosition (point &, const label facei) const
	Transform a patch-based position from other side to this side. More...

label	transformGlobalFace (const label facei) const

const vector &	rotationAxis () const
	Axis of rotation for rotational cyclics. More...

const point &	rotationCentre () const
	Point on axis of rotation for rotational cyclics. More...

const vector &	separationVector () const
	Translation vector for translational cyclics. More...

virtual void	initOrder (PstreamBuffers &, const primitivePatch &) const
	Initialize ordering for primitivePatch. Does not. More...

virtual bool	order (PstreamBuffers &, const primitivePatch &, labelList &faceMap, labelList &rotation) const
	Return new ordering for primitivePatch. More...

virtual void	write (Ostream &) const
	Write the polyPatch data as a dictionary. More...

Public Member Functions inherited from coupledPolyPatch
	TypeName ("coupled")
	Runtime type information. More...

	coupledPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType, const transformType transform)
	Construct from components. More...

	coupledPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from dictionary. More...

	coupledPolyPatch (const coupledPolyPatch &, const polyBoundaryMesh &)
	Construct as copy, resetting the boundary mesh. More...

	coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart)
	Construct given the original patch and resetting the. More...

	coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map. More...

virtual	~coupledPolyPatch ()
	Destructor. More...

virtual bool	coupled () const
	Return true because this patch is coupled. More...

virtual transformType	transform () const
	Type of transform. More...

virtual transformType &	transform ()
	Type of transform. More...

virtual bool	separated () const
	Are the planes separated. More...

virtual const vectorField &	separation () const
	If the planes are separated the separation vector. More...

virtual bool	parallel () const
	Are the cyclic planes parallel. More...

virtual const tensorField &	forwardT () const
	Return face transformation tensor. More...

virtual const tensorField &	reverseT () const
	Return neighbour-cell transformation tensor. More...

virtual const boolList &	collocated () const
	Are faces collocated. Either size 0,1 or length of patch. More...

scalar	matchTolerance () const

Public Member Functions inherited from polyPatch
	TypeName ("patch")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, polyPatch, word,(const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, size, start, index, bm, patchType))

	declareRunTimeSelectionTable (autoPtr, polyPatch, dictionary,(const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, dict, index, bm, patchType))

	polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from components. More...

	polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &physicalType, const wordList &inGroups)
	Construct from components. More...

	polyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType)
	Construct from dictionary. More...

	polyPatch (const polyPatch &, const polyBoundaryMesh &)
	Construct as copy, resetting the boundary mesh. More...

	polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart)
	Construct given the original patch and resetting the. More...

	polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart)
	Construct given the original patch and a map. More...

	polyPatch (const polyPatch &)
	Construct as copy. More...

virtual	~polyPatch ()
	Destructor. More...

label	start () const
	Return start label of this patch in the polyMesh face list. More...

const polyBoundaryMesh &	boundaryMesh () const
	Return boundaryMesh reference. More...

template<class T >
const UIndirectList< T >	patchInternalList (const UList< T > &internalValues) const
	Extract face cell data. More...

template<class T >
const List< T >::subList	patchSlice (const UList< T > &l) const
	Slice list to patch. More...

template<class T >
const Field< T >::subField	patchSlice (const Field< T > &l) const
	Slice Field to patch. More...

const vectorField::subField	faceCentres () const
	Return face centres. More...

const vectorField::subField	faceAreas () const
	Return face normals. More...

tmp< vectorField >	faceCellCentres () const
	Return face cell centres. More...

const labelUList &	faceCells () const
	Return face-cell addressing. More...

const labelList &	meshEdges () const
	Return global edge index for local edges. More...

virtual void	clearAddressing ()
	Clear addressing. More...

label	whichFace (const label l) const
	Return label of face in patch from global face label. More...

void	operator= (const polyPatch &)
	Assignment. More...

Public Member Functions inherited from patchIdentifier
	patchIdentifier (const word &name, const label index, const word &physicalType=word::null, const wordList &inGroups=wordList())
	Construct from components. More...

	patchIdentifier (const word &name, const dictionary &, const label index)
	Construct from dictionary. More...

	patchIdentifier (const patchIdentifier &, const label index)
	Construct from geometric patch, resetting the index. More...

virtual	~patchIdentifier ()
	Destructor. More...

const word &	name () const
	Return name. More...

word &	name ()
	Return name for modification. More...

const word &	physicalType () const
	Return the optional physical type of the patch. More...

word &	physicalType ()
	Return the optional physical type of the patch for modification. More...

label	index () const
	Return the index of this patch in the boundaryMesh. More...

label &	index ()
	Return the index of this patch in the boundaryMesh for modification. More...

const wordList &	inGroups () const
	Return the optional groups patch belongs to. More...

wordList &	inGroups ()
	Return the optional groups patch belongs to for modification. More...

bool	inGroup (const word &) const
	Test if in group. More...

void	write (Ostream &) const
	Write patchIdentifier as a dictionary. More...

Public Member Functions inherited from PrimitivePatch< Face, FaceList, PointField, PointType >
	PrimitivePatch (const FaceList< Face > &faces, const Field< PointType > &points)
	Construct from components. More...

	PrimitivePatch (FaceList< Face > &faces, Field< PointType > &points, const bool reUse)
	Construct from components, reuse storage. More...

	PrimitivePatch (const PrimitivePatch< Face, FaceList, PointField, PointType > &)
	Construct as copy. More...

virtual	~PrimitivePatch ()

void	clearOut ()

void	clearGeom ()

void	clearTopology ()

void	clearPatchMeshAddr ()

const Field< PointType > &	points () const
	Return reference to global points. More...

label	nPoints () const
	Return number of points supporting patch faces. More...

label	nEdges () const
	Return number of edges in patch. More...

const edgeList &	edges () const
	Return list of edges, address into LOCAL point list. More...

label	nInternalEdges () const
	Number of internal edges. More...

bool	isInternalEdge (const label edgeI) const
	Is internal edge? More...

const labelList &	boundaryPoints () const
	Return list of boundary points,. More...

const labelListList &	faceFaces () const
	Return face-face addressing. More...

const labelListList &	edgeFaces () const
	Return edge-face addressing. More...

const labelListList &	faceEdges () const
	Return face-edge addressing. More...

const labelListList &	pointEdges () const
	Return point-edge addressing. More...

const labelListList &	pointFaces () const
	Return point-face addressing. More...

const List< Face > &	localFaces () const
	Return patch faces addressing into local point list. More...

const labelList &	meshPoints () const
	Return labelList of mesh points in patch. More...

const Map< label > &	meshPointMap () const
	Mesh point map. Given the global point index find its. More...

const Field< PointType > &	localPoints () const
	Return pointField of points in patch. More...

const labelList &	localPointOrder () const
	Return orders the local points for most efficient search. More...

label	whichPoint (const label gp) const
	Given a global point index, return the local point. More...

label	whichEdge (const edge &e) const
	Given an edge in local point labels, return its index. More...

labelList	meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
	Return labels of patch edges in the global edge list using. More...

labelList	meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of patch edges in the global edge list using. More...

const Field< PointType > &	faceCentres () const
	Return face centres for patch. More...

const Field< PointType > &	faceNormals () const
	Return face normals for patch. More...

const Field< PointType > &	pointNormals () const
	Return point normals for patch. More...

template<class ToPatch >
List< objectHit >	projectPoints (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm alg=intersection::FULL_RAY, const intersection::direction dir=intersection::VECTOR) const
	Project vertices of patch onto another patch. More...

template<class ToPatch >
List< objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm alg=intersection::FULL_RAY, const intersection::direction dir=intersection::VECTOR) const
	Project vertices of patch onto another patch. More...

const labelListList &	edgeLoops () const
	Return list of closed loops of boundary vertices. More...

surfaceTopo	surfaceType () const
	Calculate surface type formed by patch. More...

bool	checkTopology (const bool report=false, labelHashSet *setPtr=NULL) const
	Check surface formed by patch for manifoldness (see above). More...

bool	checkPointManifold (const bool report=false, labelHashSet *setPtr=NULL) const
	Checks primitivePatch for faces sharing point but not edge. More...

void	writeVTK (const fileName &name) const
	Write VTK patch. More...

void	writeVTKNormals (const fileName &name) const
	Write VTK patch normals. More...

virtual void	movePoints (const Field< PointType > &)
	Correct patch after moving points. More...

void	operator= (const PrimitivePatch< Face, FaceList, PointField, PointType > &)
	Assignment. More...

	PrimitivePatch (const FaceList< Face > &faces, const Field< PointType > &points)
	Construct from components. More...

	PrimitivePatch (const Xfer< FaceList< Face > > &faces, const Xfer< List< PointType > > &points)
	Construct from components. More...

	PrimitivePatch (FaceList< Face > &faces, Field< PointType > &points, const bool reUse)
	Construct from components, reuse storage. More...

	PrimitivePatch (const PrimitivePatch< Face, FaceList, PointField, PointType > &)
	Construct as copy. More...

virtual	~PrimitivePatch ()
	Destructor. More...

void	clearOut ()

void	clearGeom ()

void	clearTopology ()

void	clearPatchMeshAddr ()

const Field< PointType > &	points () const
	Return reference to global points. More...

label	nPoints () const
	Return number of points supporting patch faces. More...

label	nEdges () const
	Return number of edges in patch. More...

const edgeList &	edges () const
	Return list of edges, address into LOCAL point list. More...

label	nInternalEdges () const
	Number of internal edges. More...

bool	isInternalEdge (const label edgeI) const
	Is internal edge? More...

const labelList &	boundaryPoints () const
	Return list of boundary points,. More...

const labelListList &	faceFaces () const
	Return face-face addressing. More...

const labelListList &	edgeFaces () const
	Return edge-face addressing. More...

const labelListList &	faceEdges () const
	Return face-edge addressing. More...

const labelListList &	pointEdges () const
	Return point-edge addressing. More...

const labelListList &	pointFaces () const
	Return point-face addressing. More...

const List< Face > &	localFaces () const
	Return patch faces addressing into local point list. More...

const labelList &	meshPoints () const
	Return labelList of mesh points in patch. They are constructed. More...

const Map< label > &	meshPointMap () const
	Mesh point map. Given the global point index find its. More...

const Field< PointType > &	localPoints () const
	Return pointField of points in patch. More...

const labelList &	localPointOrder () const
	Return orders the local points for most efficient search. More...

label	whichPoint (const label gp) const
	Given a global point index, return the local point index. More...

label	whichEdge (const edge &) const
	Given an edge in local point labels, return its. More...

labelList	meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
	Return labels of patch edges in the global edge list using. More...

labelList	meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of patch edges in the global edge list using. More...

const Field< PointType > &	faceCentres () const
	Return face centres for patch. More...

const Field< PointType > &	faceNormals () const
	Return face normals for patch. More...

const Field< PointType > &	pointNormals () const
	Return point normals for patch. More...

template<class ToPatch >
List< objectHit >	projectPoints (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch. More...

template<class ToPatch >
List< objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch. More...

const labelListList &	edgeLoops () const
	Return list of closed loops of boundary vertices. More...

surfaceTopo	surfaceType () const
	Calculate surface type formed by patch. More...

bool	checkTopology (const bool report=false, labelHashSet *setPtr=NULL) const
	Check surface formed by patch for manifoldness (see above). More...

bool	checkPointManifold (const bool report=false, labelHashSet *setPtr=NULL) const
	Checks primitivePatch for faces sharing point but not edge. More...

virtual void	movePoints (const Field< PointType > &)
	Correct patch after moving points. More...

void	operator= (const PrimitivePatch< Face, FaceList, PointField, PointType > &)
	Assignment. More...

template<class ToPatch >
Foam::List< Foam::objectHit >	projectPoints (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const

template<class ToPatch >
Foam::List< Foam::objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const

Protected Member Functions
virtual void	calcTransforms ()
	Recalculate the transformation tensors. More...

virtual void	initGeometry (PstreamBuffers &)
	Initialise the calculation of the patch geometry. More...

virtual void	initGeometry (const primitivePatch &referPatch, pointField &nbrCtrs, vectorField &nbrAreas, pointField &nbrCc)
	Initialise the calculation of the patch geometry. More...

virtual void	calcGeometry (PstreamBuffers &)
	Calculate the patch geometry. More...

virtual void	calcGeometry (const primitivePatch &referPatch, const pointField &thisCtrs, const vectorField &thisAreas, const pointField &thisCc, const pointField &nbrCtrs, const vectorField &nbrAreas, const pointField &nbrCc)
	Calculate the patch geometry. More...

virtual void	initMovePoints (PstreamBuffers &, const pointField &)
	Initialise the patches for moving points. More...

virtual void	movePoints (PstreamBuffers &, const pointField &)
	Correct patches after moving points. More...

virtual void	initUpdateMesh (PstreamBuffers &)
	Initialise the update of the patch topology. More...

virtual void	updateMesh (PstreamBuffers &)
	Update of the patch topology. More...

Protected Member Functions inherited from coupledPolyPatch
void	calcTransformTensors (const vectorField &Cf, const vectorField &Cr, const vectorField &nf, const vectorField &nr, const scalarField &smallDist, const scalar absTol, const transformType=UNKNOWN) const
	Calculate the transformation tensors. More...

Protected Member Functions inherited from polyPatch
virtual void	clearGeom ()
	Clear geometry. More...

virtual void	movePoints (const Field< PointType > &)
	Inherit movePoints from primitivePatch. More...

virtual void	movePoints (const Field< PointType > &)
	Inherit movePoints from primitivePatch. More...

Private Member Functions
void	calcTransforms (const primitivePatch &half0, const pointField &half0Ctrs, const vectorField &half0Areas, const pointField &half1Ctrs, const vectorField &half1Areas)

void	getCentresAndAnchors (const primitivePatch &pp0, const primitivePatch &pp1, pointField &half0Ctrs, pointField &half1Ctrs, pointField &anchors0, scalarField &tols) const

vector	findFaceMaxRadius (const pointField &faceCentres) const
	Return normal of face at max distance from rotation axis. More...

Static Private Member Functions
static label	findMaxArea (const pointField &, const faceList &)
	Find amongst selected faces the one with the largest area. More...

Private Attributes
word	neighbPatchName_
	Name of other half. More...

const coupleGroupIdentifier	coupleGroup_
	Optional patchGroup to find neighbPatch. More...

label	neighbPatchID_
	Index of other half. More...

vector	rotationAxis_
	Axis of rotation for rotational cyclics. More...

point	rotationCentre_
	Point on axis of rotation for rotational cyclics. More...

vector	separationVector_
	Translation vector. More...

edgeList *	coupledPointsPtr_
	List of edges formed from connected points. e[0] is the point on. More...

edgeList *	coupledEdgesPtr_
	List of connected edges. e[0] is the edge on the first half of the. More...

autoPtr< primitivePatch >	ownerPatchPtr_
	Temporary storage of owner side patch during ordering. More...

Friends
class	processorCyclicPolyPatch
	Declare friendship with processorCyclicPolyPatch. More...

Additional Inherited Members
Public Types inherited from coupledPolyPatch
enum	transformType { UNKNOWN, ROTATIONAL, TRANSLATIONAL, COINCIDENTFULLMATCH, NOORDERING }

Public Types inherited from PrimitivePatch< Face, FaceList, PointField, PointType >
enum	surfaceTopo { MANIFOLD, OPEN, ILLEGAL, MANIFOLD, OPEN, ILLEGAL }
	Enumeration defining the surface type. Used in check routines. More...

enum	surfaceTopo { MANIFOLD, OPEN, ILLEGAL, MANIFOLD, OPEN, ILLEGAL }
	Enumeration defining the surface type. Used in check routines. More...

typedef Face	FaceType

typedef FaceList< Face >	FaceListType

typedef PointField	PointFieldType

typedef Face	FaceType

typedef FaceList< Face >	FaceListType

typedef PointField	PointFieldType

Static Public Member Functions inherited from coupledPolyPatch
static scalarField	calcFaceTol (const UList< face > &faces, const pointField &points, const pointField &faceCentres)
	Calculate typical tolerance per face. Is currently max distance. More...

Static Public Member Functions inherited from polyPatch
static autoPtr< polyPatch >	New (const word &patchType, const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm)
	Return a pointer to a new patch created on freestore from. More...

static autoPtr< polyPatch >	New (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm)
	Return a pointer to a new patch created on freestore from. More...

static autoPtr< polyPatch >	New (const word &patchType, const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm)
	Return a pointer to a new patch created on freestore from. More...

static bool	constraintType (const word &pt)
	Return true if the given type is a constraint type. More...

static wordList	constraintTypes ()
	Return a list of all the constraint patch types. More...

Static Public Member Functions inherited from PrimitivePatch< Face, FaceList, PointField, PointType >
static void	writeVTK (const fileName &name, const FaceListType &faces, const Field< PointType > &points)
	Write generic VTK patch, HJ, 14/Jan/2009. More...

static void	writeVTKNormals (const fileName &name, const FaceListType &faces, const Field< PointType > &points)
	Write generic VTK patch normals, HJ, 14/Jan/2009. More...

Static Public Attributes inherited from coupledPolyPatch
static const NamedEnum< transformType, 5 >	transformTypeNames

Static Public Attributes inherited from polyPatch
static int	disallowGenericPolyPatch
	Debug switch to disallow the use of genericPolyPatch. More...

Static Protected Member Functions inherited from coupledPolyPatch
static void	writeOBJ (Ostream &os, const point &pt)
	Write point in OBJ format. More...

static void	writeOBJ (Ostream &, const pointField &, const labelList &)
	Write selected points in OBJ format. More...

static void	writeOBJ (const fileName &, const UList< face > &, const pointField &)
	Write patch. More...

static void	writeOBJ (Ostream &os, const point &p0, const point &p1, label &vertI)
	Write edge in OBJ format. More...

static pointField	getAnchorPoints (const UList< face > &, const pointField &, const transformType)
	Get a unique anchor point for all faces. More...

static label	getRotation (const pointField &points, const face &f, const point &anchor, const scalar tol)
	Get the number of vertices face f needs to be rotated such that. More...

Detailed Description

Cyclic plane patch.

Note: morph patch face ordering uses geometric matching so with the following restrictions: -coupled patches should be flat planes. -no rotation in patch plane

Uses coupledPolyPatch::calcFaceTol to calculate tolerance per face which might need tweaking.

Switch on 'cyclicPolyPatch' debug flag to write .obj files to show the matching.

Source files

Definition at line 63 of file cyclicPolyPatch.H.

Constructor & Destructor Documentation

◆ cyclicPolyPatch() [1/6]

cyclicPolyPatch	(	const word &	name,
		const label	size,
		const label	start,
		const label	index,
		const polyBoundaryMesh &	bm,
		const word &	patchType,
		const transformType	transform = `UNKNOWN`
	)

Construct from components.

Definition at line 595 of file cyclicPolyPatch.C.

Referenced by cyclicPolyPatch::clone().

Here is the caller graph for this function:

◆ cyclicPolyPatch() [2/6]

cyclicPolyPatch	(	const word &	name,
		const label	size,
		const label	start,
		const label	index,
		const polyBoundaryMesh &	bm,
		const word &	neighbPatchName,
		const transformType	transform,
		const vector &	rotationAxis,
		const point &	rotationCentre,
		const vector &	separationVector
	)

Construct from components.

Definition at line 620 of file cyclicPolyPatch.C.

◆ cyclicPolyPatch() [3/6]

cyclicPolyPatch	(	const word &	name,
		const dictionary &	dict,
		const label	index,
		const polyBoundaryMesh &	bm,
		const word &	patchType
	)

Construct from dictionary.

Definition at line 648 of file cyclicPolyPatch.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, dictionary::lookup(), Foam::mag(), Foam::name(), word::null, Foam::transform(), and word::valid().

Here is the call graph for this function:

◆ cyclicPolyPatch() [4/6]

cyclicPolyPatch	(	const cyclicPolyPatch &	pp,
		const polyBoundaryMesh &	bm
	)

Construct as copy, resetting the boundary mesh.

Definition at line 721 of file cyclicPolyPatch.C.

◆ cyclicPolyPatch() [5/6]

cyclicPolyPatch	(	const cyclicPolyPatch &	pp,
		const polyBoundaryMesh &	bm,
		const label	index,
		const label	newSize,
		const label	newStart,
		const word &	neighbPatchName
	)

Construct given the original patch and resetting the.

face list and boundary mesh information

Definition at line 742 of file cyclicPolyPatch.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::name().

Here is the call graph for this function:

◆ cyclicPolyPatch() [6/6]

cyclicPolyPatch	(	const cyclicPolyPatch &	pp,
		const polyBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const label	newStart
	)

Construct given the original patch and a map.

Definition at line 775 of file cyclicPolyPatch.C.

◆ ~cyclicPolyPatch()

~cyclicPolyPatch ( )

virtual

Destructor.

Definition at line 797 of file cyclicPolyPatch.C.

References Foam::deleteDemandDrivenData().

Here is the call graph for this function:

Member Function Documentation

◆ findMaxArea()

Foam::label findMaxArea	(	const pointField &	points,
		const faceList &	faces
	)

staticprivate

Find amongst selected faces the one with the largest area.

Definition at line 53 of file cyclicPolyPatch.C.

References forAll, Foam::magSqr(), and points.

Here is the call graph for this function:

◆ calcTransforms() [1/2]

void calcTransforms	(	const primitivePatch &	half0,
		const pointField &	half0Ctrs,
		const vectorField &	half0Areas,
		const pointField &	half1Ctrs,
		const vectorField &	half1Areas
	)

private

Definition at line 108 of file cyclicPolyPatch.C.

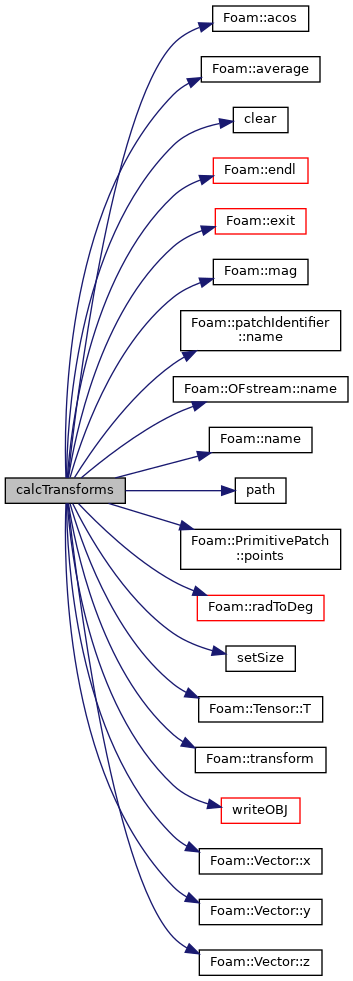

References Foam::acos(), Foam::average(), clear(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::mag(), mesh, patchIdentifier::name(), OFstream::name(), Foam::name(), Foam::nl, path(), PrimitivePatch< Face, FaceList, PointField, PointType >::points(), Foam::Pout, Foam::radToDeg(), setSize(), Tensor::T(), Foam::transform(), WarningInFunction, writeOBJ(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

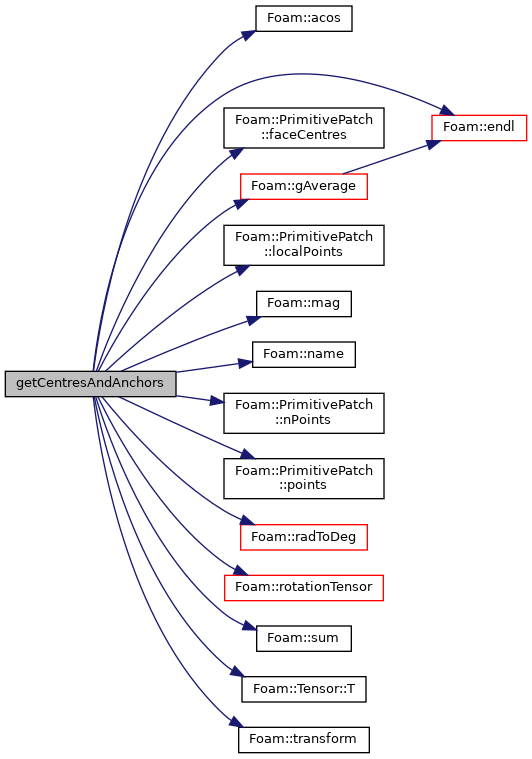

◆ getCentresAndAnchors()

void getCentresAndAnchors	(	const primitivePatch &	pp0,
		const primitivePatch &	pp1,
		pointField &	half0Ctrs,
		pointField &	half1Ctrs,
		pointField &	anchors0,
		scalarField &	tols
	)		const

private

Definition at line 390 of file cyclicPolyPatch.C.

References Foam::acos(), Foam::endl(), PrimitivePatch< Face, FaceList, PointField, PointType >::faceCentres(), forAll, Foam::gAverage(), PrimitivePatch< Face, FaceList, PointField, PointType >::localPoints(), Foam::mag(), Foam::name(), Foam::nl, PrimitivePatch< Face, FaceList, PointField, PointType >::nPoints(), PrimitivePatch< Face, FaceList, PointField, PointType >::points(), Foam::Pout, Foam::radToDeg(), Foam::rotationTensor(), Foam::sum(), Tensor::T(), and Foam::transform().

Here is the call graph for this function:

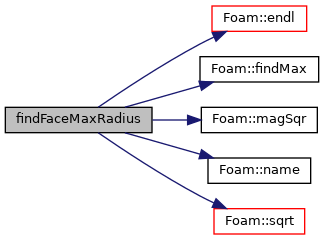

◆ findFaceMaxRadius()

Foam::vector findFaceMaxRadius ( const pointField & faceCentres ) const

private

Return normal of face at max distance from rotation axis.

Definition at line 567 of file cyclicPolyPatch.C.

References Foam::endl(), Foam::findMax(), Foam::Info, Foam::magSqr(), n, Foam::name(), Foam::nl, and Foam::sqrt().

Here is the call graph for this function:

◆ calcTransforms() [2/2]

void calcTransforms ( )

protectedvirtual

Recalculate the transformation tensors.

Definition at line 75 of file cyclicPolyPatch.C.

References polyPatch::faceCentres(), forAll, cyclicPolyPatch::neighbPatch(), and PrimitivePatch< Face, FaceList, PointField, PointType >::points().

Here is the call graph for this function:

◆ initGeometry() [1/2]

void initGeometry ( PstreamBuffers & pBufs )

protectedvirtual

Initialise the calculation of the patch geometry.

Implements coupledPolyPatch.

Definition at line 924 of file cyclicPolyPatch.C.

References polyPatch::initGeometry().

Here is the call graph for this function:

◆ initGeometry() [2/2]

void initGeometry	(	const primitivePatch &	referPatch,
		pointField &	nbrCtrs,
		vectorField &	nbrAreas,
		pointField &	nbrCc
	)

protectedvirtual

Initialise the calculation of the patch geometry.

Definition at line 931 of file cyclicPolyPatch.C.

◆ calcGeometry() [1/2]

void calcGeometry ( PstreamBuffers & pBufs )

protectedvirtual

Calculate the patch geometry.

Implements coupledPolyPatch.

Definition at line 962 of file cyclicPolyPatch.C.

◆ calcGeometry() [2/2]

void calcGeometry	(	const primitivePatch &	referPatch,
		const pointField &	thisCtrs,
		const vectorField &	thisAreas,
		const pointField &	thisCc,
		const pointField &	nbrCtrs,
		const vectorField &	nbrAreas,
		const pointField &	nbrCc
	)

protectedvirtual

Calculate the patch geometry.

Implements coupledPolyPatch.

Definition at line 941 of file cyclicPolyPatch.C.

◆ initMovePoints()

void initMovePoints	(	PstreamBuffers &	pBufs,
		const pointField &	p
	)

protectedvirtual

Initialise the patches for moving points.

Implements coupledPolyPatch.

Definition at line 978 of file cyclicPolyPatch.C.

References polyPatch::initMovePoints(), and p.

Here is the call graph for this function:

◆ movePoints()

void movePoints	(	PstreamBuffers &	pBufs,
		const pointField &	p
	)

protectedvirtual

Correct patches after moving points.

Implements coupledPolyPatch.

Definition at line 988 of file cyclicPolyPatch.C.

References polyPatch::movePoints(), and p.

Here is the call graph for this function:

◆ initUpdateMesh()

void initUpdateMesh ( PstreamBuffers & pBufs )

protectedvirtual

Initialise the update of the patch topology.

Implements coupledPolyPatch.

Definition at line 998 of file cyclicPolyPatch.C.

References polyPatch::initUpdateMesh().

Here is the call graph for this function:

◆ updateMesh()

void updateMesh ( PstreamBuffers & pBufs )

protectedvirtual

Update of the patch topology.

Implements coupledPolyPatch.

Definition at line 1004 of file cyclicPolyPatch.C.

References Foam::deleteDemandDrivenData(), and polyPatch::updateMesh().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "cyclic" )

Runtime type information.

◆ clone() [1/3]

virtual autoPtr<polyPatch> clone ( const polyBoundaryMesh & bm ) const

inlinevirtual

Construct and return a clone, resetting the boundary mesh.

Reimplemented from polyPatch.

Reimplemented in cyclicSlipPolyPatch, and nonuniformTransformCyclicPolyPatch.

Definition at line 260 of file cyclicPolyPatch.H.

References cyclicPolyPatch::cyclicPolyPatch().

Here is the call graph for this function:

◆ clone() [2/3]

virtual autoPtr<polyPatch> clone	(	const polyBoundaryMesh &	bm,
		const label	index,
		const label	newSize,
		const label	newStart
	)		const

inlinevirtual

Construct and return a clone, resetting the face list.

and boundary mesh

Reimplemented from polyPatch.

Reimplemented in nonuniformTransformCyclicPolyPatch, and cyclicSlipPolyPatch.

Definition at line 268 of file cyclicPolyPatch.H.

References patchIdentifier::index(), and cyclicPolyPatch::neighbPatchName_.

Here is the call graph for this function:

◆ clone() [3/3]

virtual autoPtr<polyPatch> clone	(	const polyBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const label	newStart
	)		const

inlinevirtual

Construct and return a clone, resetting the face list.

and boundary mesh

Reimplemented from polyPatch.

Reimplemented in nonuniformTransformCyclicPolyPatch, and cyclicSlipPolyPatch.

Definition at line 292 of file cyclicPolyPatch.H.

References cyclicPolyPatch::cyclicPolyPatch(), and patchIdentifier::index().

Here is the call graph for this function:

◆ neighbPatchName()

const Foam::word & neighbPatchName ( ) const

Neighbour patch name.

Definition at line 806 of file cyclicPolyPatch.C.

Referenced by cyclicSlipPolyPatch::clone(), nonuniformTransformCyclicPolyPatch::clone(), and cyclicPolyPatch::neighbPatchID().

Here is the caller graph for this function:

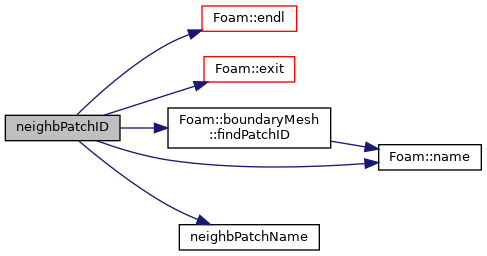

◆ neighbPatchID()

Foam::label neighbPatchID ( ) const

virtual

Neighbour patchID.

Definition at line 819 of file cyclicPolyPatch.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, boundaryMesh::findPatchID(), Foam::name(), cyclicPolyPatch::neighbPatchName(), and WarningInFunction.

Referenced by cyclicFvPatch::neighbFvPatch(), cyclicFvPatch::neighbPatch(), cyclicPointPatch::neighbPatch(), cyclicPolyPatch::neighbPatch(), cyclicFvPatch::neighbPatchID(), cyclicPolyPatch::owner(), and globalPoints::receivePatchPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ owner()

virtual bool owner ( ) const

inlinevirtual

Does this side own the patch ?

Implements coupledPolyPatch.

Definition at line 318 of file cyclicPolyPatch.H.

References patchIdentifier::index(), and cyclicPolyPatch::neighbPatchID().

Referenced by fvMeshDistribute::getNeighbourData(), cyclicPolyPatch::neighbour(), cyclicFvPatch::owner(), domainDecomposition::processInterCyclics(), syncTools::syncBoundaryFaceList(), syncTools::syncEdgeMap(), syncTools::syncFaceList(), syncTools::syncPointMap(), and isoSurface::syncUnseparatedPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ neighbour()

virtual bool neighbour ( ) const

inlinevirtual

Does the coupled side own the patch ?

Reimplemented from coupledPolyPatch.

Definition at line 323 of file cyclicPolyPatch.H.

References cyclicPolyPatch::owner().

Here is the call graph for this function:

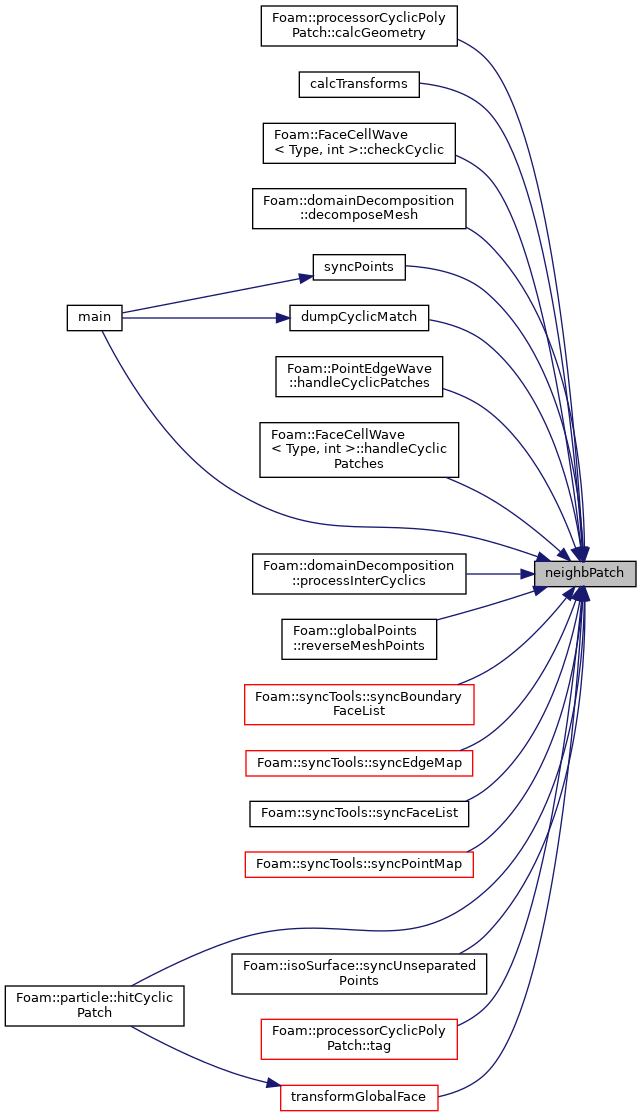

◆ neighbPatch()

const cyclicPolyPatch& neighbPatch ( ) const

inline

Definition at line 328 of file cyclicPolyPatch.H.

References polyPatch::boundaryMesh(), and cyclicPolyPatch::neighbPatchID().

Referenced by processorCyclicPolyPatch::calcGeometry(), cyclicPolyPatch::calcTransforms(), FaceCellWave< Type, int >::checkCyclic(), domainDecomposition::decomposeMesh(), dumpCyclicMatch(), PointEdgeWave< Type, TrackingData >::handleCyclicPatches(), FaceCellWave< Type, int >::handleCyclicPatches(), particle< Type >::hitCyclicPatch(), main(), domainDecomposition::processInterCyclics(), globalPoints::reverseMeshPoints(), syncTools::syncBoundaryFaceList(), syncTools::syncEdgeMap(), syncTools::syncFaceList(), syncTools::syncPointMap(), syncPoints(), isoSurface::syncUnseparatedPoints(), processorCyclicPolyPatch::tag(), and cyclicPolyPatch::transformGlobalFace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ coupledPoints()

const Foam::edgeList & coupledPoints ( ) const

Return connected points (from patch local to neighbour patch local)

Demand driven calculation. Does primitivePatch::clearOut after calculation!

Definition at line 1012 of file cyclicPolyPatch.C.

References Foam::constant::physicoChemical::b, Foam::endl(), forAll, mesh, OFstream::name(), Foam::name(), Foam::nl, nPoints, path(), points, Foam::Pout, List::setSize(), List::size(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by PointEdgeWave< Type, TrackingData >::handleCyclicPatches(), syncTools::syncPointMap(), syncPoints(), and isoSurface::syncUnseparatedPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

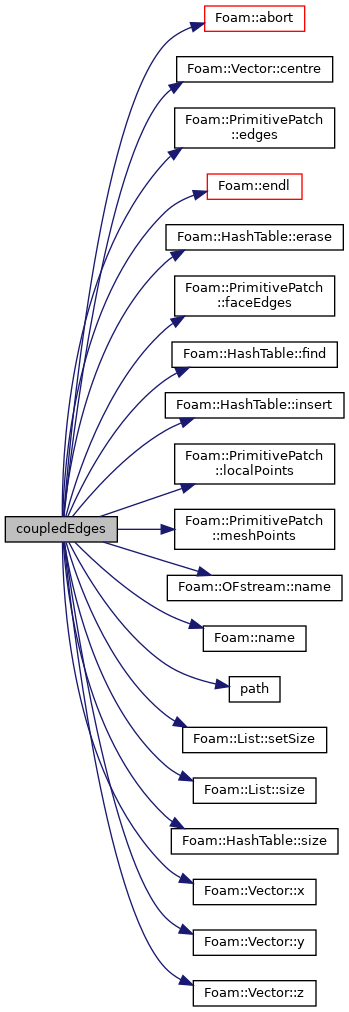

◆ coupledEdges()

const Foam::edgeList & coupledEdges ( ) const

Return connected edges (from patch local to neighbour patch local).

Demand driven calculation. Does primitivePatch::clearOut after calculation!

Definition at line 1093 of file cyclicPolyPatch.C.

References Foam::abort(), Foam::constant::physicoChemical::b, Vector< Cmpt >::centre(), Foam::e, PrimitivePatch< Face, FaceList, PointField, PointType >::edges(), Foam::endl(), HashTable::erase(), PrimitivePatch< Face, FaceList, PointField, PointType >::faceEdges(), Foam::FatalError, FatalErrorInFunction, HashTable::find(), forAll, HashTable::insert(), PrimitivePatch< Face, FaceList, PointField, PointType >::localPoints(), mesh, PrimitivePatch< Face, FaceList, PointField, PointType >::meshPoints(), Foam::constant::atomic::mp, OFstream::name(), Foam::name(), Foam::nl, path(), Foam::Pout, List::setSize(), List::size(), HashTable::size(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by syncTools::syncEdgeMap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transformPosition() [1/2]

void transformPosition ( pointField & l ) const

virtual

Transform a patch-based position from other side to this side.

Implements coupledPolyPatch.

Definition at line 854 of file cyclicPolyPatch.C.

References forAll, s(), and Foam::transform().

Referenced by particle< Type >::hitCyclicPatch().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transformPosition() [2/2]

void transformPosition	(	point &	l,
		const label	facei
	)		const

virtual

Transform a patch-based position from other side to this side.

Implements coupledPolyPatch.

Definition at line 890 of file cyclicPolyPatch.C.

References s(), Foam::T(), and Foam::transform().

Here is the call graph for this function:

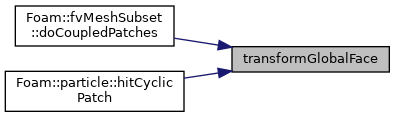

◆ transformGlobalFace()

label transformGlobalFace ( const label facei ) const

inline

Definition at line 353 of file cyclicPolyPatch.H.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, patchIdentifier::name(), cyclicPolyPatch::neighbPatch(), and polyPatch::start().

Referenced by fvMeshSubset::doCoupledPatches(), and particle< Type >::hitCyclicPatch().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotationAxis()

const vector& rotationAxis ( ) const

inline

Axis of rotation for rotational cyclics.

Definition at line 372 of file cyclicPolyPatch.H.

References cyclicPolyPatch::rotationAxis_.

◆ rotationCentre()

const point& rotationCentre ( ) const

inline

Point on axis of rotation for rotational cyclics.

Definition at line 378 of file cyclicPolyPatch.H.

References cyclicPolyPatch::rotationCentre_.

◆ separationVector()

const vector& separationVector ( ) const

inline

Translation vector for translational cyclics.

Definition at line 384 of file cyclicPolyPatch.H.

References cyclicPolyPatch::separationVector_.

Referenced by main().

Here is the caller graph for this function:

◆ initOrder()

void initOrder	(	PstreamBuffers &	,
		const primitivePatch &	pp
	)		const

virtual

Initialize ordering for primitivePatch. Does not.

refer to *this (except for name() and type() etc.)

Implements coupledPolyPatch.

Definition at line 1233 of file cyclicPolyPatch.C.

References PrimitivePatch< Face, FaceList, PointField, PointType >::points().

Here is the call graph for this function:

◆ order()

bool order	(	PstreamBuffers &	pBufs,
		const primitivePatch &	pp,
		labelList &	faceMap,
		labelList &	rotation
	)		const

virtual

Return new ordering for primitivePatch.

Ordering is -faceMap: for every face index of the new face -rotation:for every new face the clockwise shift of the original face. Return false if nothing changes (faceMap is identity, rotation is 0), true otherwise.

Implements coupledPolyPatch.

Definition at line 1255 of file cyclicPolyPatch.C.

References Foam::constant::physicoChemical::c1, Foam::endl(), Foam::faceMap(), forAll, Foam::gAverage(), Foam::matchPoints(), mesh, OFstream::name(), Foam::name(), Foam::nl, path(), PrimitivePatch< Face, FaceList, PointField, PointType >::points(), Foam::Pout, SeriousErrorInFunction, List::setSize(), Foam::transform(), and writeOBJ().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write the polyPatch data as a dictionary.

Reimplemented from coupledPolyPatch.

Definition at line 1445 of file cyclicPolyPatch.C.

References token::END_STATEMENT, Foam::nl, Foam::transform(), coupledPolyPatch::write(), and Ostream::writeKeyword().

Here is the call graph for this function:

Friends And Related Function Documentation

◆ processorCyclicPolyPatch

friend class processorCyclicPolyPatch

friend

Declare friendship with processorCyclicPolyPatch.

Definition at line 188 of file cyclicPolyPatch.H.

Field Documentation

◆ neighbPatchName_

word neighbPatchName_

mutableprivate

Name of other half.

Definition at line 70 of file cyclicPolyPatch.H.

Referenced by cyclicPolyPatch::clone().

◆ coupleGroup_

const coupleGroupIdentifier coupleGroup_

private

Optional patchGroup to find neighbPatch.

Definition at line 73 of file cyclicPolyPatch.H.

◆ neighbPatchID_

label neighbPatchID_

mutableprivate

Index of other half.

Definition at line 76 of file cyclicPolyPatch.H.

◆ rotationAxis_

vector rotationAxis_

private

Axis of rotation for rotational cyclics.

Definition at line 81 of file cyclicPolyPatch.H.

Referenced by cyclicPolyPatch::rotationAxis().

◆ rotationCentre_

point rotationCentre_

private

Point on axis of rotation for rotational cyclics.

Definition at line 84 of file cyclicPolyPatch.H.

Referenced by cyclicPolyPatch::rotationCentre().

◆ separationVector_

vector separationVector_

private

Translation vector.

Definition at line 89 of file cyclicPolyPatch.H.

Referenced by cyclicPolyPatch::separationVector().

◆ coupledPointsPtr_

edgeList* coupledPointsPtr_

mutableprivate

List of edges formed from connected points. e[0] is the point on.

the first half of the patch, e[1] the corresponding point on the second half.

Definition at line 95 of file cyclicPolyPatch.H.

◆ coupledEdgesPtr_

edgeList* coupledEdgesPtr_

mutableprivate

List of connected edges. e[0] is the edge on the first half of the.

patch, e[1] the corresponding edge on the second half.

Definition at line 99 of file cyclicPolyPatch.H.

◆ ownerPatchPtr_

autoPtr<primitivePatch> ownerPatchPtr_

mutableprivate

Temporary storage of owner side patch during ordering.

Definition at line 102 of file cyclicPolyPatch.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/polyMesh/polyPatches/constraint/cyclic/cyclicPolyPatch.H
src/OpenFOAM/meshes/polyMesh/polyPatches/constraint/cyclic/cyclicPolyPatch.C

Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ cyclicPolyPatch() [1/6]

◆ cyclicPolyPatch() [2/6]

◆ cyclicPolyPatch() [3/6]

◆ cyclicPolyPatch() [4/6]

◆ cyclicPolyPatch() [5/6]

◆ cyclicPolyPatch() [6/6]

◆ ~cyclicPolyPatch()

Member Function Documentation

◆ findMaxArea()

◆ calcTransforms() [1/2]

◆ getCentresAndAnchors()

◆ findFaceMaxRadius()

◆ calcTransforms() [2/2]

◆ initGeometry() [1/2]

◆ initGeometry() [2/2]

◆ calcGeometry() [1/2]

◆ calcGeometry() [2/2]

◆ initMovePoints()

◆ movePoints()

◆ initUpdateMesh()

◆ updateMesh()

◆ TypeName()

◆ clone() [1/3]

◆ clone() [2/3]

◆ clone() [3/3]

◆ neighbPatchName()

◆ neighbPatchID()

◆ owner()

◆ neighbour()

◆ neighbPatch()

◆ coupledPoints()

◆ coupledEdges()

◆ transformPosition() [1/2]

◆ transformPosition() [2/2]

◆ transformGlobalFace()

◆ rotationAxis()

◆ rotationCentre()

◆ separationVector()

◆ initOrder()

◆ order()

◆ write()

Friends And Related Function Documentation

◆ processorCyclicPolyPatch

Field Documentation

◆ neighbPatchName_

◆ coupleGroup_

◆ neighbPatchID_

◆ rotationAxis_

◆ rotationCentre_

◆ separationVector_

◆ coupledPointsPtr_

◆ coupledEdgesPtr_

◆ ownerPatchPtr_
