Mixed boundary condition for temperature and radiation heat transfer to be used for in multiregion cases. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries. More...

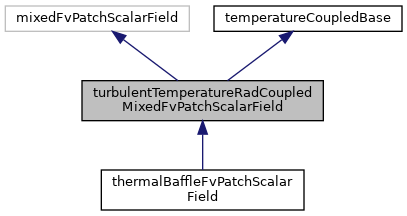

Inheritance diagram for turbulentTemperatureRadCoupledMixedFvPatchScalarField:

[legend]

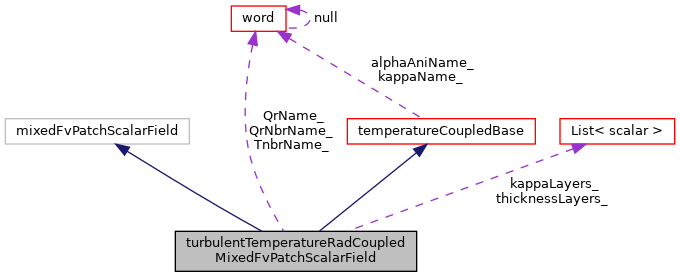

Collaboration diagram for turbulentTemperatureRadCoupledMixedFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("compressible::turbulentTemperatureRadCoupledMixed")
	Runtime type information. More...

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field. More...

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const turbulentTemperatureRadCoupledMixedFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given. More...

virtual tmp< fvPatchScalarField >	clone () const
	Construct and return a clone. More...

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const turbulentTemperatureRadCoupledMixedFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference. More...

virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Construct and return a clone setting internal field reference. More...

virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field. More...

virtual void	write (Ostream &) const
	Write. More...

Public Member Functions inherited from temperatureCoupledBase
	temperatureCoupledBase (const fvPatch &patch, const word &calculationMethod, const word &kappaName, const word &alphaAniName)
	Construct from patch and K name. More...

	temperatureCoupledBase (const fvPatch &patch, const dictionary &dict)
	Construct from patch and dictionary. More...

	temperatureCoupledBase (const fvPatch &patch, const temperatureCoupledBase &base)
	Construct from patch and temperatureCoupledBase. More...

word	KMethod () const
	Method to obtain K. More...

const word &	kappaName () const
	Name of thermal conductivity field. More...

tmp< scalarField >	kappa (const scalarField &Tp) const
	Given patch temperature calculate corresponding K field. More...

void	write (Ostream &) const
	Write. More...

Private Attributes
const word	TnbrName_
	Name of field on the neighbour region. More...

const word	QrNbrName_
	Name of the radiative heat flux in the neighbout region. More...

const word	QrName_
	Name of the radiative heat flux in local region. More...

scalarList	thicknessLayers_
	Thickness of layers. More...

scalarList	kappaLayers_
	Conductivity of layers. More...

scalar	contactRes_
	Total contact resistance. More...

Additional Inherited Members
Public Types inherited from temperatureCoupledBase
enum	KMethodType { mtFluidThermo, mtSolidThermo, mtDirectionalSolidThermo, mtLookup }
	Type of supplied Kappa. More...

Protected Attributes inherited from temperatureCoupledBase
const fvPatch &	patch_
	Underlying patch. More...

const KMethodType	method_
	How to get K. More...

const word	kappaName_
	Name of thermal conductivity field (if looked up from database) More...

const word	alphaAniName_
	Name of the non-Isotropic alpha (default: Anialpha) More...

Static Protected Attributes inherited from temperatureCoupledBase
static const NamedEnum< KMethodType, 4 >	KMethodTypeNames_

Detailed Description

Mixed boundary condition for temperature and radiation heat transfer to be used for in multiregion cases. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries.

The thermal conductivity, kappa, can either be retrieved from the mesh database using the lookup option, or from a solidThermo or fluidThermo thermophysical package.

Patch usage

Property	Description	Required	Default value
`kappa`	thermal conductivity option	yes
`kappaName`	name of thermal conductivity field	no
`Tnbr`	name of the field	no	T
`QrNbr`	name of the radiative flux in the nbr region	no	none
`Qr`	name of the radiative flux in this region	no	none
`thicknessLayers`	list of thicknesses per layer [m]	no
`kappaLayers`	list of thermal conductivites per layer [W/m/K]	no

Example of the boundary condition specification:

    myPatch
    {
        type            compressible::turbulentTemperatureRadCoupledMixed;
        Tnbr            T;
        kappa           lookup;
        KappaName       kappa;
        QrNbr           Qr; // or none. Name of Qr field on neighbour region
        Qr              Qr; // or none. Name of Qr field on local region
        thicknessLayers (0.1 0.2 0.3 0.4);
        kappaLayers     (1 2 3 4)
        value           uniform 300;
    }

Needs to be on underlying mapped(Wall)FvPatch.

Note: kappa : heat conduction at patch. Gets supplied how to lookup/calculate kappa:

'lookup' : lookup volScalarField (or volSymmTensorField) with name
'fluidThermo' : use fluidThermo and compressible::RASmodel to calculate K
'solidThermo' : use solidThermo kappa()
'directionalSolidThermo' directionalKappa()

Source files

Definition at line 138 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [1/4]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Construct from patch and internal field.

Definition at line 43 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [2/4]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Construct from patch, internal field and dictionary.

Definition at line 85 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References dict, dimensionedInternalField(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, fvPatchField::operator=(), and p.

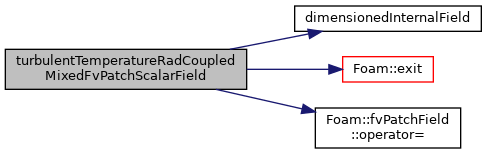

Here is the call graph for this function:

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [3/4]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const turbulentTemperatureRadCoupledMixedFvPatchScalarField &	psf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Construct by mapping given.

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField onto a new patch

Definition at line 65 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [4/4]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const turbulentTemperatureRadCoupledMixedFvPatchScalarField &	psf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Construct as copy setting internal field reference.

Definition at line 147 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "compressible::turbulentTemperatureRadCoupledMixed" )

Runtime type information.

◆ clone() [1/2]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Construct and return a clone.

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 200 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

◆ clone() [2/2]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Construct and return a clone setting internal field reference.

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 220 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 165 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References turbulentTemperatureRadCoupledMixedFvPatchScalarField::contactRes_, fvPatch::deltaCoeffs(), dimensionedInternalField(), mappedPatchBase::distribute(), Foam::endl(), Foam::gAverage(), Foam::gMax(), Foam::gMin(), Foam::gSum(), patchIdentifier::index(), Foam::Info, temperatureCoupledBase::kappa(), fvPatch::lookupPatchField(), UPstream::msgType(), fvPatch::name(), IOobject::name(), Qr(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::QrName_, turbulentTemperatureRadCoupledMixedFvPatchScalarField::QrNbrName_, Foam::refCast(), mappedPatchBase::sampleMesh(), mappedPatchBase::samplePolyPatch(), Foam::fvc::snGrad(), and turbulentTemperatureRadCoupledMixedFvPatchScalarField::TnbrName_.

Referenced by thermalBaffleFvPatchScalarField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 258 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References token::END_STATEMENT, Foam::nl, write(), temperatureCoupledBase::write(), and Ostream::writeKeyword().

Referenced by thermalBaffleFvPatchScalarField::write().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ TnbrName_

const word TnbrName_

private

Name of field on the neighbour region.

Definition at line 146 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

Referenced by turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs().

◆ QrNbrName_

const word QrNbrName_

private

Name of the radiative heat flux in the neighbout region.

Definition at line 149 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

Referenced by turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs().

◆ QrName_

const word QrName_

private

Name of the radiative heat flux in local region.

Definition at line 152 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

Referenced by turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs().

◆ thicknessLayers_

scalarList thicknessLayers_

private

Thickness of layers.

Definition at line 155 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

◆ kappaLayers_

scalarList kappaLayers_

private

Conductivity of layers.

Definition at line 158 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

◆ contactRes_

scalar contactRes_

private

Total contact resistance.

Definition at line 161 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

Referenced by turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs().

The documentation for this class was generated from the following files:

src/TurbulenceModels/compressible/turbulentFluidThermoModels/derivedFvPatchFields/turbulentTemperatureRadCoupledMixed/turbulentTemperatureRadCoupledMixedFvPatchScalarField.H
src/TurbulenceModels/compressible/turbulentFluidThermoModels/derivedFvPatchFields/turbulentTemperatureRadCoupledMixed/turbulentTemperatureRadCoupledMixedFvPatchScalarField.C
